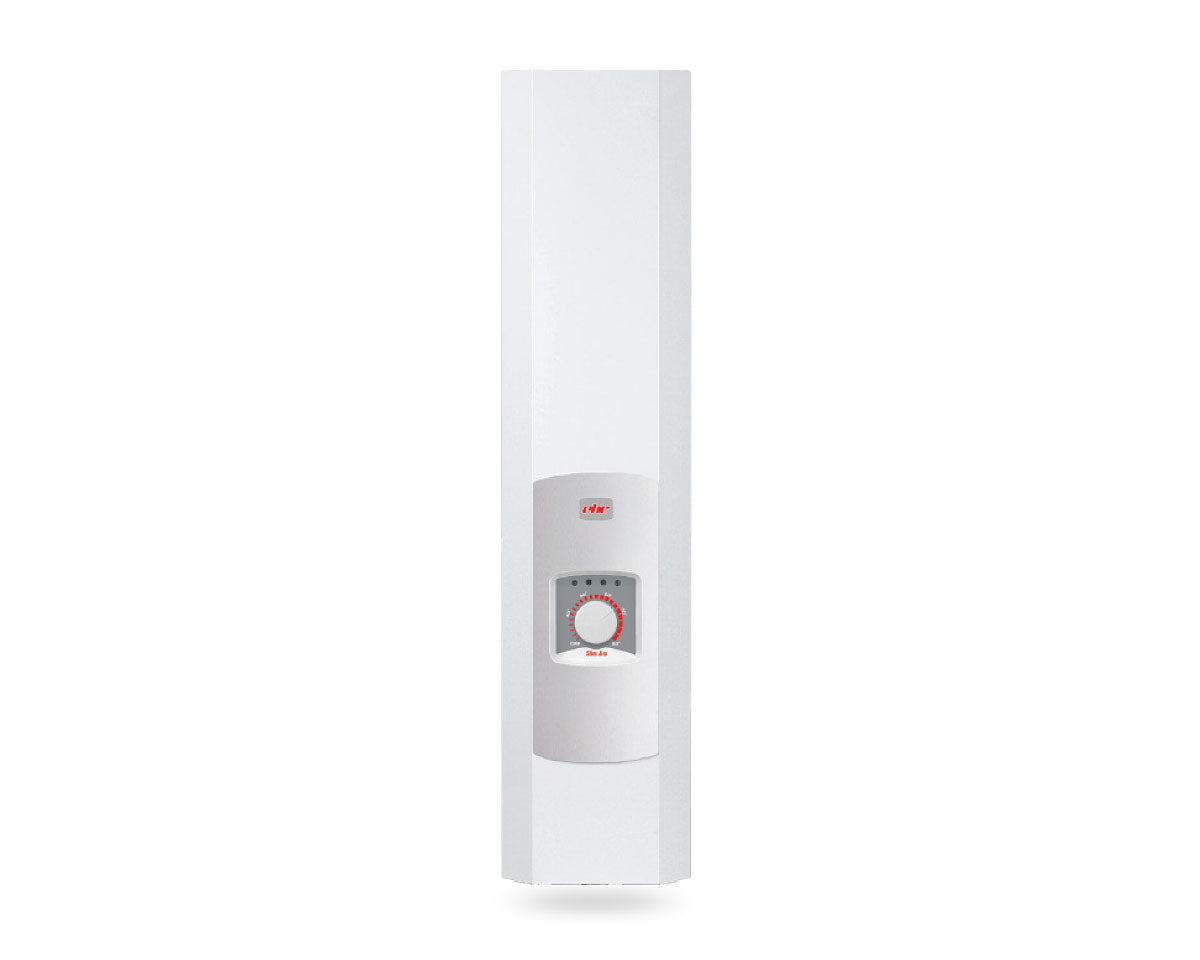

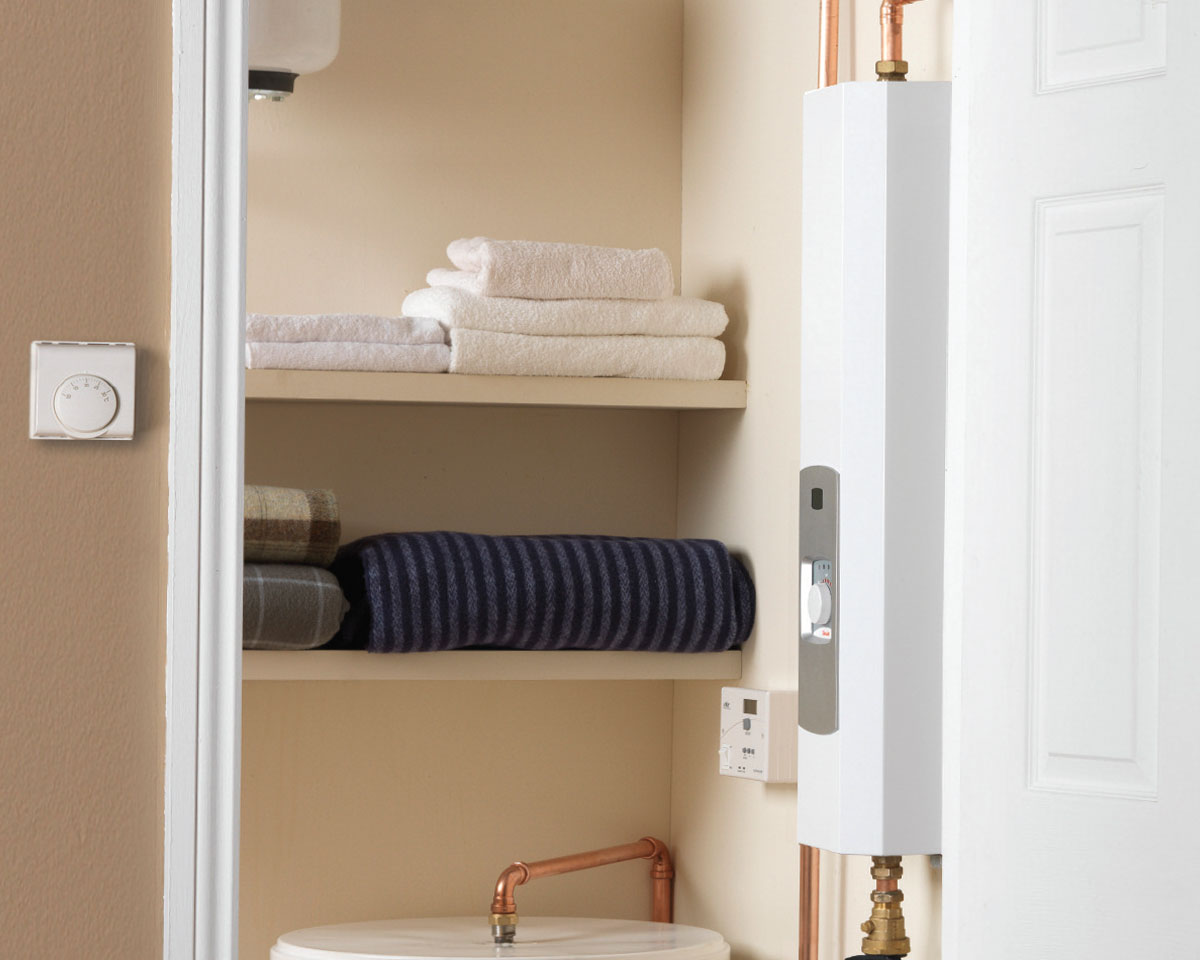

The SlimJim Electric Flow Boiler offers a space-saving heating solution ideal for installations where space is limited. Its compact size maximizes cupboard or closet space, making it perfect for various residential settings. Available in single phase outputs ranging from 4kW to 14.4kW, including a model for larger property needs, the SlimJim can be configured for heating only or combined heating and hot water via an 'S' plan system.
Key Features:
Compact design, ideal for space-limited heating applications
Fully controllable Electric Boiler, maximizing cupboard space Single-phase Electric Flow Boiler outputs: 4kW, 7kW, 10kW, 12kW (14.4kW for larger properties)
'S' Plan configuration for Heating only, Hot Water only, or both simultaneously
100% efficiency, silent operation, and easy installation
Easy-fit front cover for future maintenance
User-friendly front Control Panel with temperature control dial and diagnostic indicators

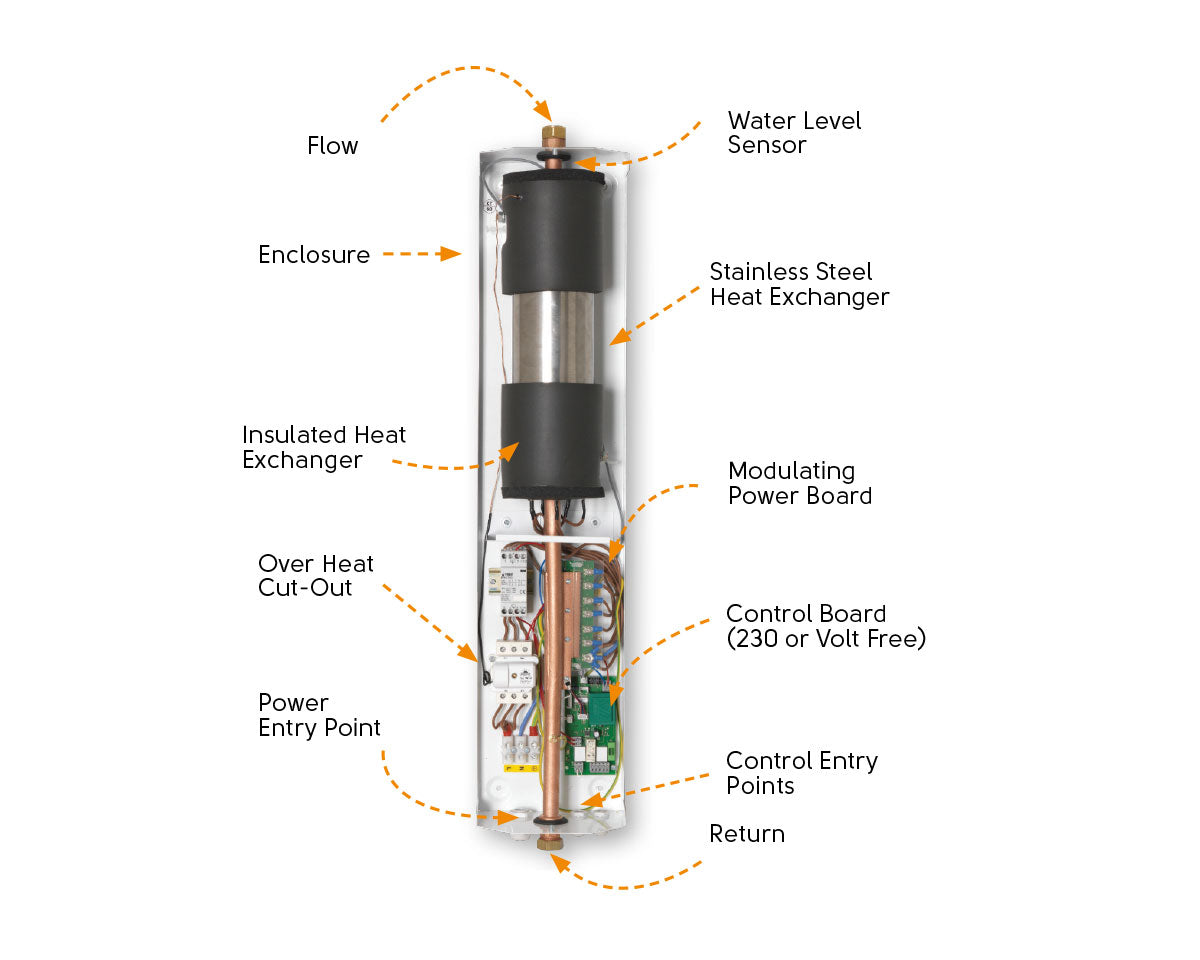

Run-Dry Water Level Sensor protects heat exchanger from running dry due to water loss
Stainless Steel Heat Exchanger fully insulated to minimize heat loss
Boiler temperature range: 30°C to 80°C, suitable for radiators and underfloor heating
Incorporates high current safety cut-out device for overheat protection
Technical Specifications:
Compact Size: Designed to maximize cupboard/closet space for installations where space is limited.
Output Range:
Single phase outputs: 4kW, 7kW, 10kW, 12kW
14.4kW model available for larger property needs
Flexible Configuration: Can be used for heating only or combined heating & hot water via €˜S€™ plan system.
User-Friendly Controls:
Front control panel with temperature adjustment dial
Heat mode and fault diagnostic indicators
Advanced Features:
100% energy efficiency
Virtually silent operation
Run-dry sensor protects heat exchanger
High temperature safety cut-out
Quality Components:
Fully insulated stainless steel heat exchanger
Easy access front cover for maintenance
Temperature Range: Adjustable from 30°C to 80°C for wet system radiators and underfloor heating.
Installation Versatility: Available as standalone boiler or with heating/hot water packs for complete solutions.
