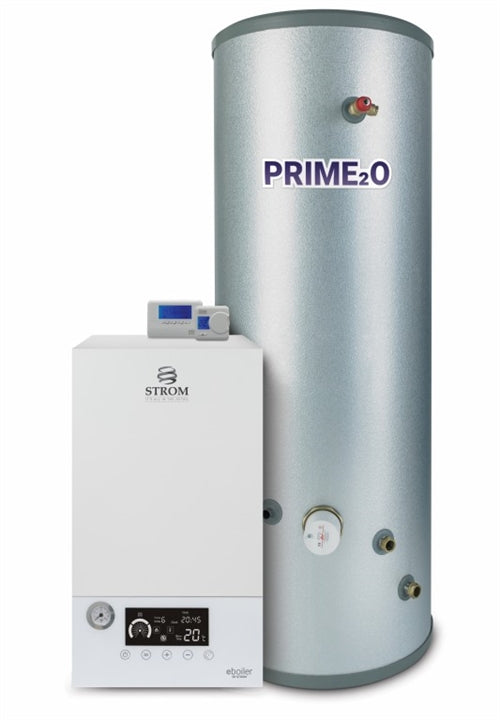

Strom Electric System Boiler (Single Phase) Including Unvented Cylinder & Control Pack

Strom Electric System Boiler (Single Phase) Including Unvented Cylinder & Control Pack

Introducing the Electric System Boiler (Single Phase) Including Unvented Cylinder & Control Pack, a comprehensive heating solution designed to deliver exceptional performance and reliability. This advanced system seamlessly integrates a high-efficiency single-phase electric boiler with an unvented cylinder, ensuring a consistent supply of hot water and heating for your home. With a range of capacities from 120L to 200L, the unvented cylinders are engineered for optimal heat retention, featuring low heat loss and robust pressure capabilities.

The included control pack provides intuitive and precise control over your heating schedule, enhancing both convenience and energy efficiency. Whether you're upgrading your current system or installing a new one, this all-in-one package offers unparalleled ease of installation and operation, making it the ideal choice for modern homes seeking reliable, eco-friendly heating solutions.

Key Features:

STROM Electric Boilers:

• Heat Output: 7kW to 14.4kW
• Amps at 230VAC: 32A to 62A
• Minimum Breaker Size: 40A to 63A
• Minimum Cable Size: 4mm² to 10mm²
• Heating Temperature Range: 20°C - 80°C
• Heating Pressure Range: 0.5 - 1.5 Bar

STROM Pre-Plumbed Indirect Cylinders:

• Capacity: 120 litres to 200 litres
• Weight Empty: 40 kg to 60 kg
• Weight Full: 160 kg to 260 kg
• Heat Loss: 1.2 kWh/24h to 1.5 kWh/24h
• Max Water Pressure: 10.0 Bar
• Max Fill Pressure: 3.0 Bar
• Number of Immersions: 1
• Coil Rating: 15 kW to 22 kW
• ERP Rating (Cylinder Only): B

Technical Specifications:

STROM 7KW SINGLE PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 120L INDIRECT CYL

STROM 7KW SINGLE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 7kW

• Amps at 230VAC: 32A

• Min Breaker Size: 40A

• Min Cable size: 4mm²

• Heating Temp range: 20°C - 80°C

• Heating pressure range: 0.5 - 1.5 Bar

120L INDIRECT CYLINDER:

• Capacity (litres): 120

• Weight empty (kg): 40

• Weight full (kg): 160

• Heat Loss (kWh/24h): 1.2

• Max water pressure: 10.0 Bar

• Max fill pressure: 3.0 Bar

• Number of immersions: 1

• Coil rating (kW): 15

• ERP Rating (cylinder only): B

STROM 7KW SINGLE PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 150L INDIRECT CYL

STROM 7KW SINGLE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 7kW

• Amps at 230VAC: 32A

• Min Breaker Size: 40A

• Min Cable size: 4mm²

• Heating Temp range: 20°C - 80°C

• Heating pressure range: 0.5 - 1.5 Bar

150L INDIRECT CYLINDER:

• Capacity (litres): 150

• Weight empty (kg): 48

• Weight full (kg): 198

• Heat Loss (kWh/24h): 1.3

• Max water pressure: 10.0 Bar

• Max fill pressure: 3.0 Bar

• Number of immersions: 1

• Coil rating (kW): 18

• ERP Rating (cylinder only): B

STROM 7KW SINGLE PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 170L INDIRECT CYL

STROM 7KW SINGLE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 7kW

• Amps at 230VAC: 32A

• Min Breaker Size: 40A

• Min Cable size: 4mm²

• Heating Temp range: 20°C - 80°C

• Heating pressure range: 0.5 - 1.5 Bar

170L INDIRECT CYLINDER:

• Capacity (litres): 170

• Weight empty (kg): 54

• Weight full (kg): 224

• Heat Loss (kWh/24h): 1.4

• Max water pressure: 10.0 Bar

• Max fill pressure: 3.0 Bar

• Number of immersions: 1

• Coil rating (kW): 20

• ERP Rating (cylinder only): B

STROM 7KW SINGLE PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 200L INDIRECT CYL

STROM 7KW SINGLE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 7kW

• Amps at 230VAC: 32A

• Min Breaker Size: 40A

• Min Cable size: 4mm²

• Heating Temp range: 20°C - 80°C

• Heating pressure range: 0.5 - 1.5 Bar

200L INDIRECT CYLINDER:

• Capacity (litres): 200

• Weight empty (kg): 60

• Weight full (kg): 260

• Heat Loss (kWh/24h): 1.5

• Max water pressure: 10.0 Bar

• Max fill pressure: 3.0 Bar

• Number of immersions: 1

• Coil rating (kW): 22

• ERP Rating (cylinder only): B

STROM 11KW SINGLE PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 120L INDIRECT CYL

STROM 11KW SINGLE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 11kW

• Amps at 230VAC: 55A

• Min Breaker Size: 63A

• Min Cable size: 10mm²

• Heating Temp range: 20°C - 80°C

• Heating pressure range: 0.5 - 1.5 Bar

120L INDIRECT CYLINDER:

• Capacity (litres): 120

• Weight empty (kg): 40

• Weight full (kg): 160

• Heat Loss (kWh/24h): 1.2

• Max water pressure: 10.0 Bar

• Max fill pressure: 3.0 Bar

• Number of immersions: 1

• Coil rating (kW): 15

• ERP Rating (cylinder only): B

STROM 11KW SINGLE PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 150L INDIRECT CYL

STROM 11KW SINGLE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 11kW

• Amps at 230VAC: 55A

• Min Breaker Size: 63A

• Min Cable size: 10mm²

• Heating Temp range: 20°C - 80°C

• Heating pressure range: 0.5 - 1.5 Bar

150L INDIRECT CYLINDER:

• Capacity (litres): 150

• Weight empty (kg): 48

• Weight full (kg): 198

• Heat Loss (kWh/24h): 1.3

• Max water pressure: 10.0 Bar

• Max fill pressure: 3.0 Bar

• Number of immersions: 1

• Coil rating (kW): 18

• ERP Rating (cylinder only): B

STROM 11KW SINGLE PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 170L INDIRECT CYL

STROM 11KW SINGLE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 11kW

• Amps at 230VAC: 55A

• Min Breaker Size: 63A

• Min Cable size: 10mm²

• Heating Temp range: 20°C - 80°C

• Heating pressure range: 0.5 - 1.5 Bar

170L INDIRECT CYLINDER:

• Capacity (litres): 170

• Weight empty (kg): 54

• Weight full (kg): 224

• Heat Loss (kWh/24h): 1.4

• Max water pressure: 10.0 Bar

• Max fill pressure: 3.0 Bar

• Number of immersions: 1

• Coil rating (kW): 20

• ERP Rating (cylinder only): B

STROM 11KW SINGLE PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 200L INDIRECT CYL

STROM 11KW SINGLE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 11kW

• Amps at 230VAC: 55A

• Min Breaker Size: 63A

• Min Cable size: 10mm²

• Heating Temp range: 20°C - 80°C

• Heating pressure range: 0.5 - 1.5 Bar

200L INDIRECT CYLINDER:

• Capacity (litres): 200

• Weight empty (kg): 60

• Weight full (kg): 260

• Heat Loss (kWh/24h): 1.5

• Max water pressure: 10.0 Bar

• Max fill pressure: 3.0 Bar

• Number of immersions: 1

• Coil rating (kW): 22

• ERP Rating (cylinder only): B

STROM 14.4KW SINGLE PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 120L INDIRECT CYL

STROM 14.4KW SINGLE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 14.4kW

• Amps at 230VAC: 62A

• Min Breaker Size: 63A

• Min Cable size: 10mm²

• Heating Temp range: 20°C - 80°C

• Heating pressure range: 0.5 - 1.5 Bar

120L INDIRECT CYLINDER:

• Capacity (litres): 120

• Weight empty (kg): 40

• Weight full (kg): 160

• Heat Loss (kWh/24h): 1.2

• Max water pressure: 10.0 Bar

• Max fill pressure: 3.0 Bar

• Number of immersions: 1

• Coil rating (kW): 15

• ERP Rating (cylinder only): B

STROM 14.4KW SINGLE PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 150L INDIRECT CYL

STROM 14.4KW SINGLE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 14.4kW

• Amps at 230VAC: 62A

• Min Breaker Size: 63A

• Min Cable size: 10mm²

• Heating Temp range: 20°C - 80°C

• Heating pressure range: 0.5 - 1.5 Bar

150L INDIRECT CYLINDER:

• Capacity (litres): 150

• Weight empty (kg): 48

• Weight full (kg): 198

• Heat Loss (kWh/24h): 1.3

• Max water pressure: 10.0 Bar

• Max fill pressure: 3.0 Bar

• Number of immersions: 1

• Coil rating (kW): 18

• ERP Rating (cylinder only): B

STROM 14.4KW SINGLE PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 170L INDIRECT CYL

STROM 14.4KW SINGLE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 14.4kW

• Amps at 230VAC: 62A

• Min Breaker Size: 63A

• Min Cable size: 10mm²

• Heating Temp range: 20°C - 80°C

• Heating pressure range: 0.5 - 1.5 Bar

170L INDIRECT CYLINDER:

• Capacity (litres): 170

• Weight empty (kg): 54

• Weight full (kg): 224

• Heat Loss (kWh/24h): 1.4

• Max water pressure: 10.0 Bar

• Max fill pressure: 3.0 Bar

• Number of immersions: 1

• Coil rating (kW): 20

• ERP Rating (cylinder only): B

STROM 14.4KW SINGLE PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 200L INDIRECT CYL

STROM 14.4KW SINGLE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 14.4kW

• Amps at 230VAC: 62A

• Min Breaker Size: 63A

• Min Cable size: 10mm²

• Heating Temp range: 20°C - 80°C

• Heating pressure range: 0.5 - 1.5 Bar

200L INDIRECT CYLINDER:

• Capacity (litres): 200

• Weight empty (kg): 60

• Weight full (kg): 260

• Heat Loss (kWh/24h): 1.5

• Max water pressure: 10.0 Bar

• Max fill pressure: 3.0 Bar

• Number of immersions: 1

• Coil rating (kW): 22

• ERP Rating (cylinder only): B
