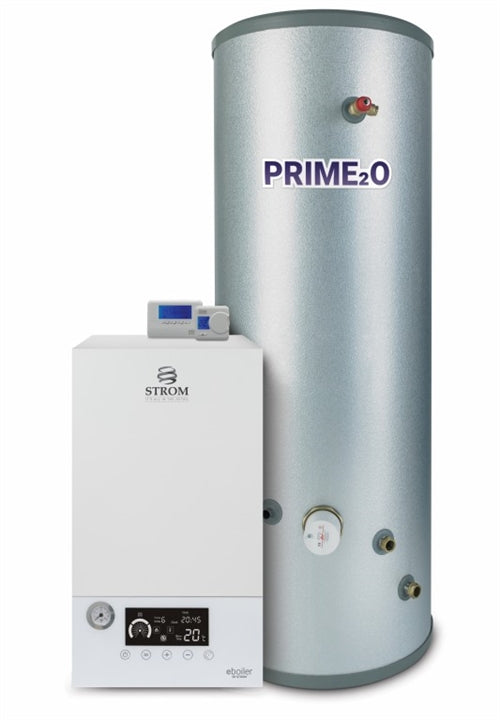

Strom Electric System Boiler (Three Phase) Including Unvented Cylinder & Control Pack

Strom Electric System Boiler (Three Phase) Including Unvented Cylinder & Control Pack

Introducing the Electric System Boiler (Single Phase) Including Unvented Cylinder & Control Pack, a comprehensive heating solution designed to deliver exceptional performance and reliability. This advanced system seamlessly integrates a high-efficiency single-phase electric boiler with an unvented cylinder, ensuring a consistent supply of hot water and heating for your home. With a range of capacities from 120L to 200L, the unvented cylinders are engineered for optimal heat retention, featuring low heat loss and robust pressure capabilities.

The included control pack which provides intuitive and precise control over your heating schedule, enhancing both convenience and energy efficiency. Whether you're upgrading your current system or installing a new one, this all-in-one package offers unparalleled ease of installation and operation, making it the ideal choice for modern homes seeking reliable, eco-friendly heating solutions.

Key Features:

STROM Electric Boilers:

• Heat Output: 18kW to 24kW
• Amps at 230VAC: 27A to 36A
• Minimum Breaker Size: 32A to 40A
• Minimum Cable Size: 3x4mm² to 3x6mm²
• Heating Temperature Range: 20°C - 80°C
• Heating Pressure Range: 0.5 - 1.5 Bar
• ERP Rating (Heating): D

STROM Pre-Plumbed Indirect Cylinders:

• Capacity: 170 litres to 300 litres
• Weight Empty: 48 kg to 56 kg
• Weight Full: 196 kg to 253 kg
• Heat Loss: 1.32 kWh/24h to 1.7 kWh/24h
• Max Water Pressure: 10.0 Bar
• Max Fill Pressure: 3.0 Bar
• Number of Immersions: 1
• Coil Rating: 18.25 kW to 19.94 kW
• ERP Rating (Cylinder Only): B to C

Technical Specifications:

STROM 18KW 3 PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 170L INDIRECT CYL

STROM 18KW THREE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 18kW
• Amps at 230VAC: 27A
• Min Breaker Size: 32A
• Min Cable size: 3x4mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar

STROM 18KW 3 PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 200L INDIRECT CYL

STROM 18KW THREE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 18kW
• Amps at 230VAC: 27A
• Min Breaker Size: 32A
• Min Cable size: 3x4mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar

STROM 18KW 3 PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 250L INDIRECT CYL

STROM 18KW THREE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 18kW
• Amps at 230VAC: 27A
• Min Breaker Size: 32A
• Min Cable size: 3x4mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar

STROM 18KW 3 PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 300L INDIRECT CYL

STROM 18KW THREE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 18kW
• Amps at 230VAC: 27A
• Min Breaker Size: 32A
• Min Cable size: 3x4mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar

STROM 21KW 3 PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 170L INDIRECT CYL

STROM 21KW THREE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 21kW
• Amps at 230VAC: 32A
• Min Breaker Size: 40A
• Min Cable size: 3x6mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar

STROM 21KW 3 PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 200L INDIRECT CYL

STROM 21KW THREE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 21kW
• Amps at 230VAC: 32A
• Min Breaker Size: 40A
• Min Cable size: 3x6mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar

STROM 21KW 3 PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 250L INDIRECT CYL

STROM 21KW THREE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 21kW
• Amps at 230VAC: 32A
• Min Breaker Size: 40A
• Min Cable size: 3x6mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar

STROM 21KW 3 PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 300L INDIRECT CYL

STROM 21KW THREE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 21kW
• Amps at 230VAC: 32A
• Min Breaker Size: 40A
• Min Cable size: 3x6mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar

STROM 24KW 3 PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 170L INDIRECT CYL

STROM 24KW THREE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 24kW
• Amps at 230VAC: 36A
• Min Breaker Size: 40A
• Min Cable size: 3x6mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar

STROM 24KW 3 PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 200L INDIRECT CYL

STROM 24KW THREE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 24kW
• Amps at 230VAC: 36A
• Min Breaker Size: 40A
• Min Cable size: 3x6mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar

STROM 24KW 3 PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 250L INDIRECT CYL

STROM 24KW THREE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 24kW
• Amps at 230VAC: 36A
• Min Breaker Size: 40A
• Min Cable size: 3x6mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar

STROM 24KW 3 PHASE SYSTEM BOILER C/W FILTER - INC PACK B & 300L INDIRECT CYL

STROM 24KW THREE PHASE ELECTRIC SYSTEM BOILER:

• Heat output: 24kW
• Amps at 230VAC: 36A
• Min Breaker Size: 40A
• Min Cable size: 3x6mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar
