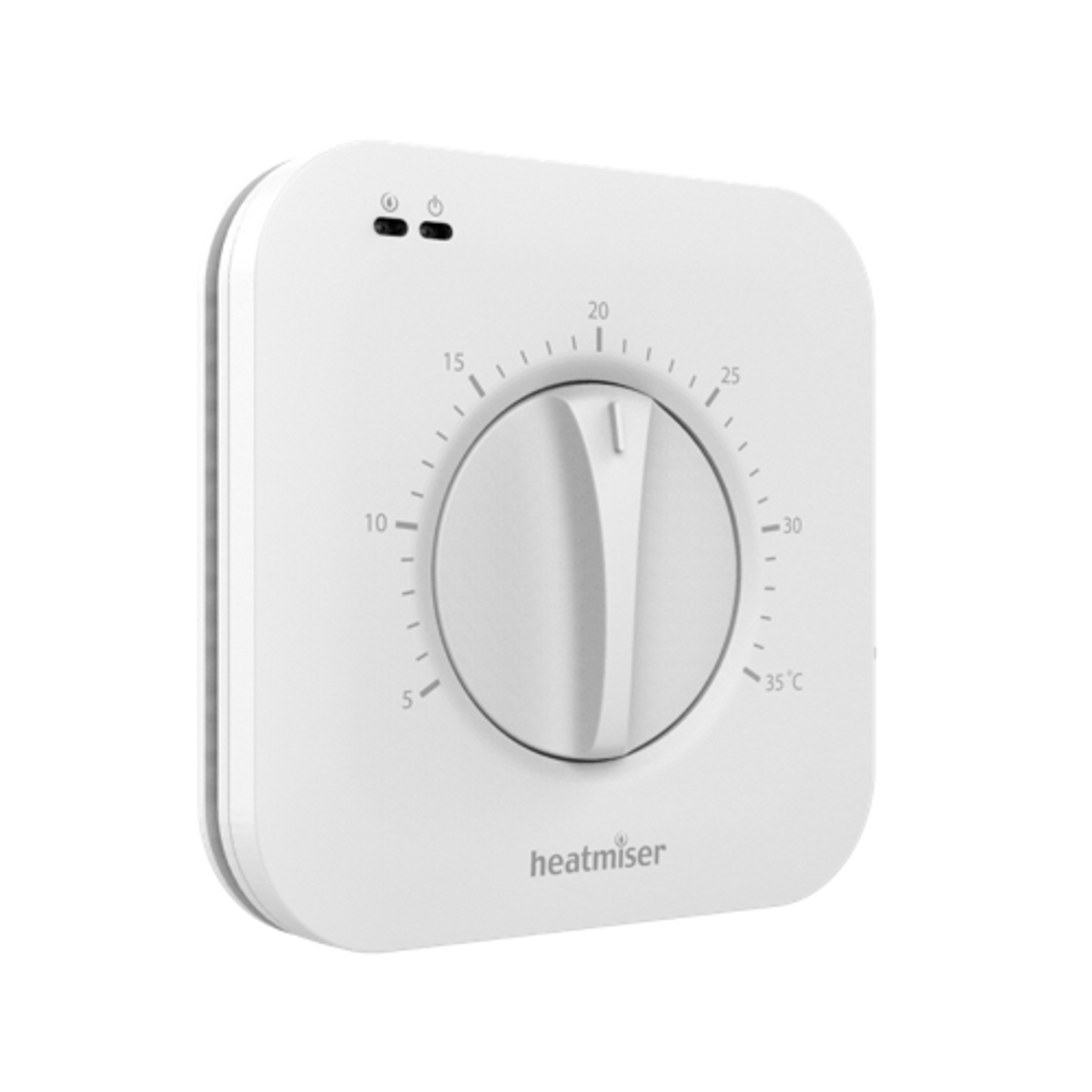

The Heatmiser DS-SB v3 is our flush mount set back thermostat, ideal for those seeking a straightforward and energy-efficient control solution. The DS-SB v3 features a set back function that automatically lowers the set temperature by 4°C when the time clock is off, enhancing energy savings.
Designed to work seamlessly with our UH8 wiring center and TM4 v2 Programmer, the DS-SB v3 can also function as a standalone dial thermostat.
Please note: This thermostat is flush-mounted, so a back box is required for installation.
Key Functions:
Slide Switch Mode Select: Options for Constant, Off, and Time Clock
Flush Mount Design
Remote Air Sensor Compatibility: Probe optional
Temperature Range: 05-35°C
4°C Set Back Function
230V, 3A Switch Rating
CE Approved
Dimensions: 92mm x 92mm x 14mm (Height, Width, Depth once installed)
Note: 4-core cabling is required from the time clock to utilize the set back function.
The DS-SB v3 combines simplicity with energy efficiency, offering an effective solution for managing your heating control needs.
