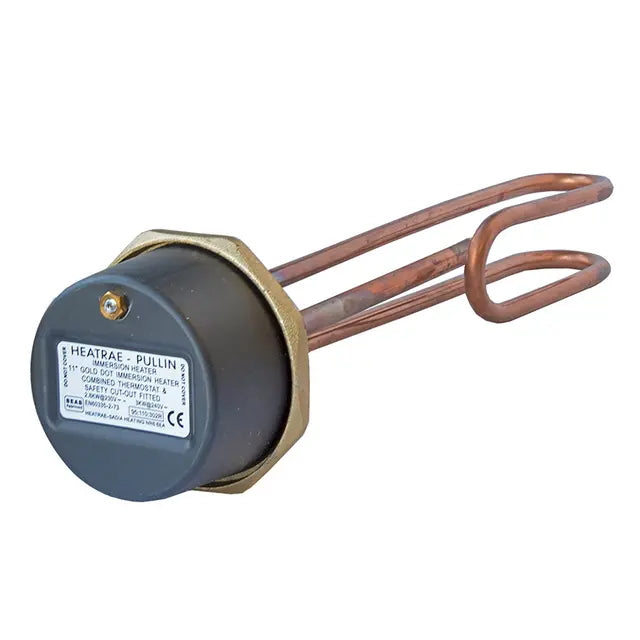

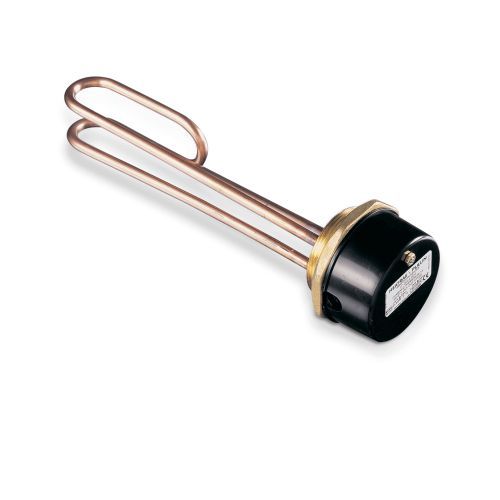

Our Gold Dot immersion heaters are engineered for efficient water heating, available in six sizes ranging from 280mm to 914mm (11" to 36"). These copper-sheathed immersion heaters are perfect for normal water conditions and can be used either as the primary heat source or in conjunction with an indirect heating coil for faster heat-up and recovery times.
Key Features:
Multiple Size Options: Available in six sizes€”280mm (11"), 356mm (14"), 686mm (27"), 762mm (30"), and 914mm (36")€”to meet a range of installation needs.
Versatile Use: Ideal as the primary heat source or for boosting heat when paired with an indirect heating coil, delivering faster heat-up and quicker recovery.
Copper Sheathed: Designed for normal water areas, providing durability and consistent heating performance.
RDT Combined Thermostat: Fitted with a combined thermostat and manually resettable safety cut-out, adjustable from 10°C to 60°C for precise temperature control.
No-Heat Zone: Prevents overheating for added safety and extended product life.
2 1/4" BSP Boss: Standard fitting for easy installation across different systems.
BEAB Approved: Certified for safety and reliability.
Two-Year Guarantee: Each heater comes with a two-year parts-only warranty for peace of mind.
Technical Specifications:
11" Gold Dot:
Horizontal installation
2 1/4" BSP Boss
280mm (11") length
Copper sheathed
7" RDT thermostat
3kW power rating
14" Gold Dot:
Horizontal installation
2 1/4" BSP Boss
356mm (14") length
Copper sheathed
7" RDT thermostat
3kW power rating
27" Gold Dot:
Horizontal installation
2 1/4" BSP Boss
686mm (27") length
Copper sheathed
7" RDT thermostat
3kW power rating
30" Gold Dot:
Horizontal installation
2 1/4" BSP Boss
762mm (30") length
Copper sheathed
7" RDT thermostat
3kW power rating
36" Gold Dot:
Horizontal installation
2 1/4" BSP Boss
914mm (36") length
Copper sheathed
7" RDT thermostat
3kW power rating
These Gold Dot immersion heaters are a durable and reliable solution for various water heating applications, providing efficient performance with a wide range of size options to fit different installation requirements.
