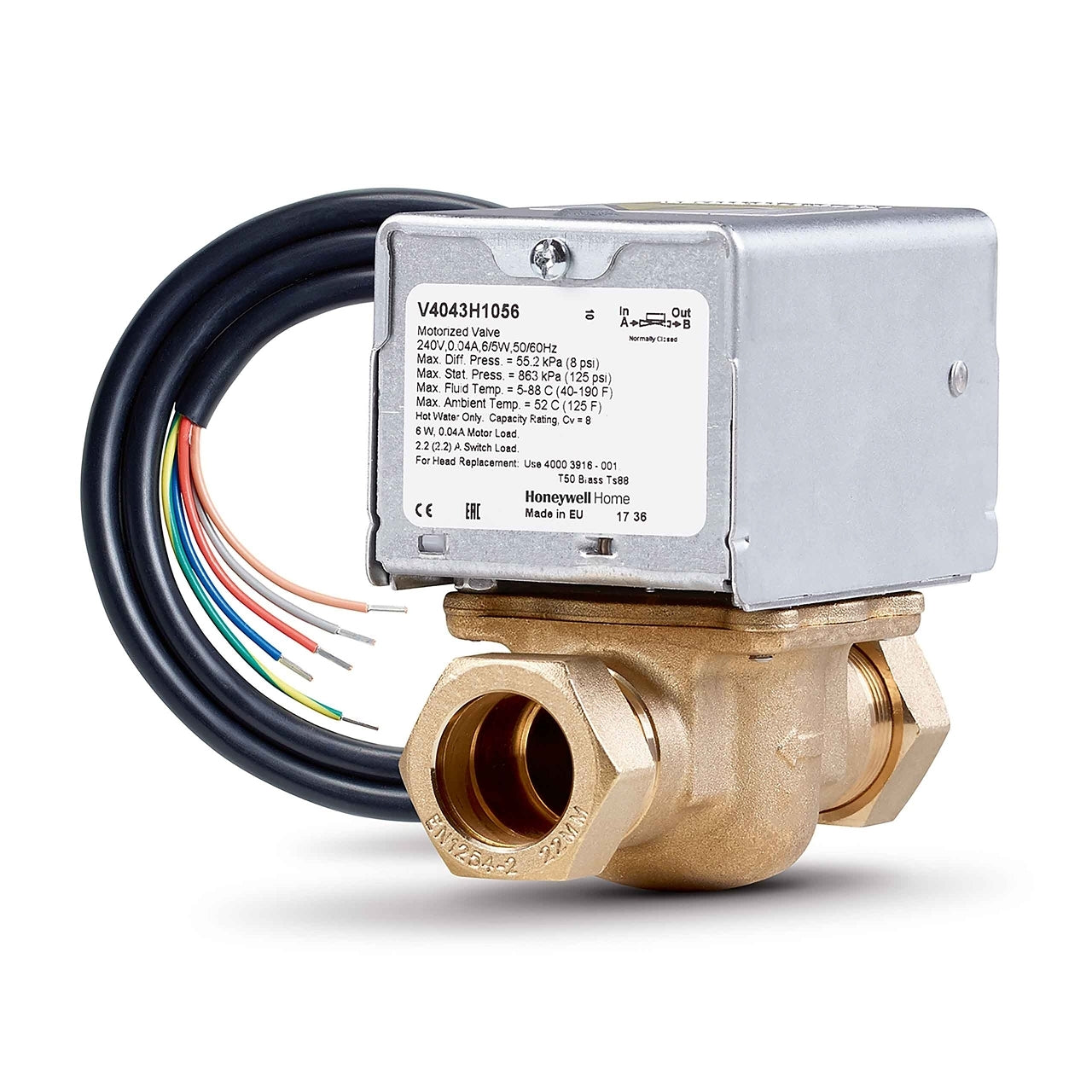

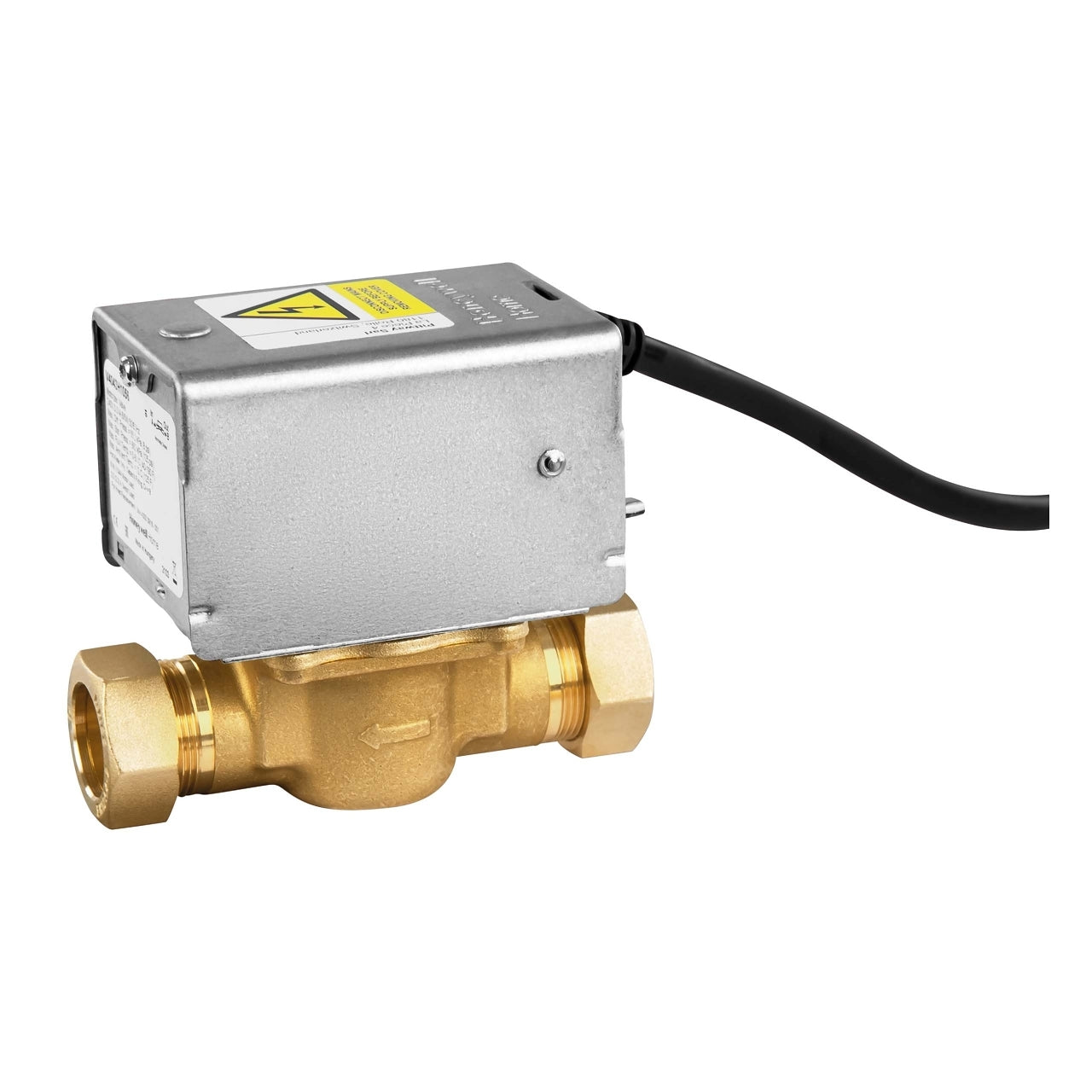

Honeywell Home V4043H 2-Port Motorised Zone Valve (22mm)

Honeywell Home V4043H 2-Port Motorised Zone Valve (22mm)

The Honeywell Home V4043H is a 2-port motorised zone valve commonly used in domestic and light commercial central heating systems to control the flow of water to individual heating zones. Its normally closed design and robust construction ensure reliable operation and energy efficiency.

Key Features:

• Normally Closed Design: Ensures that heating zones are isolated when not in use, preventing unnecessary heating and reducing energy consumption.

• Auxiliary Switch: Equipped with an end switch for electrical control of pumps and/or boilers, enhancing system efficiency.

• Manual Lever: Incorporates a manual lever for system filling and draining, facilitating maintenance tasks.

Technical Specifications:

• Model Number: V4043H1056/U

• Pipe Size: 22mm compression fittings

• Port Connections: 2-port (A to B)

• Power Supply: 230V AC, 50Hz

• Maximum Fluid Temperature: 95°C

• Material: Brass body with stainless steel spindle
