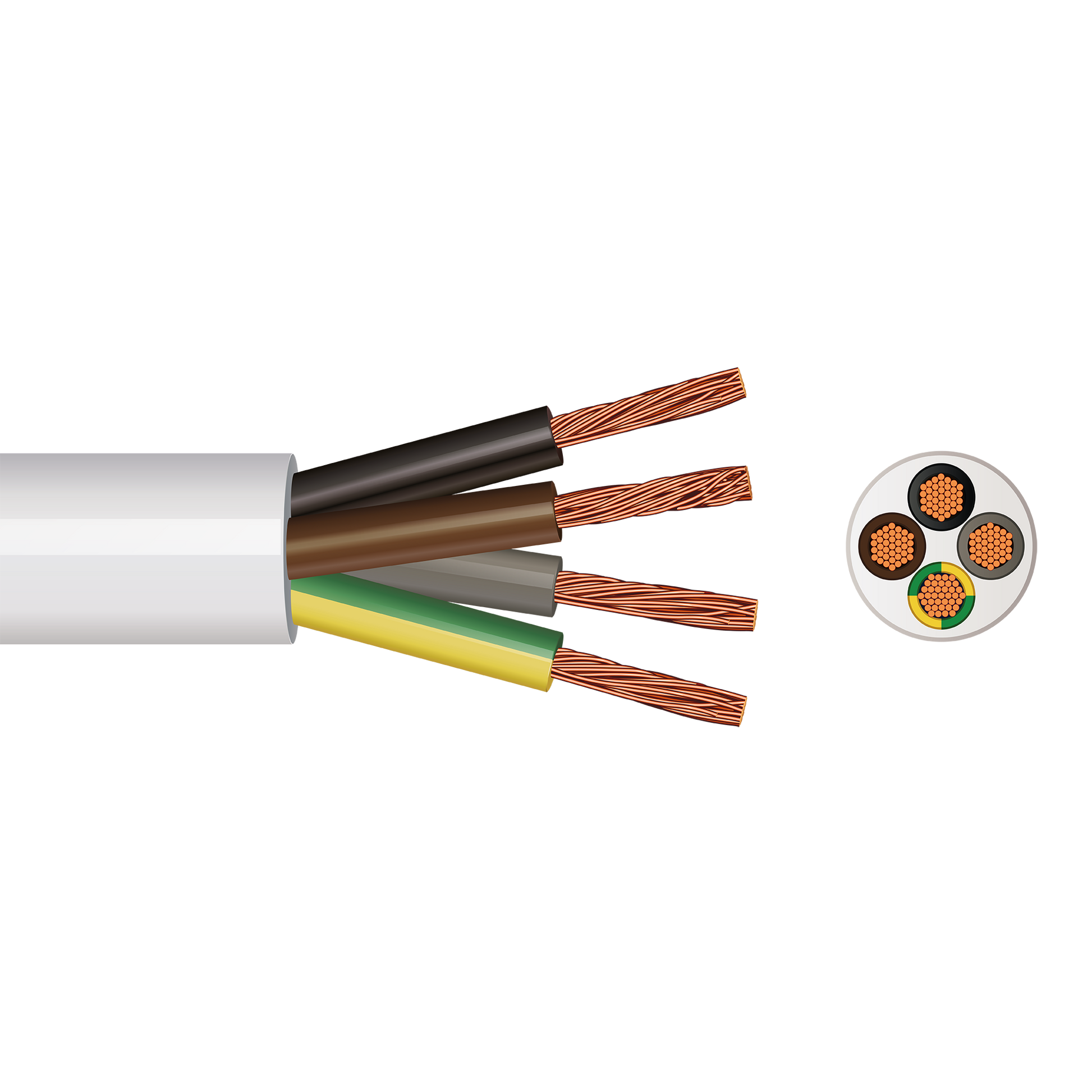

The Pitacs 3094Y 4 Core Heat Resistant Flex Cable is a high quality flexible cable designed for electrical applications operating in elevated temperature environments. Commonly used for storage heaters, immersion heaters, heating controls and internal wiring of electrical apparatus, this durable 4 core heat resistant cable delivers dependable electrical performance whilst maintaining excellent flexibility for straightforward installation and cable routing. Manufactured with fine stranded copper conductors and high temperature resistant PVC insulation and sheathing, the 3094Y cable is specifically designed for applications where standard flexible cables may be exposed to increased operating temperatures.
Designed for indoor use, the Pitacs 3094Y cable combines flexibility with enhanced thermal resistance, making it suitable for heating equipment and control systems requiring multiple conductors within a single cable. The 4 core construction allows for power and control connections, while the fine stranded Class 5 copper conductors provide excellent flexibility and ease of handling. Manufactured to BS EN 50525-2-11 standards and carrying BASEC, CE, HAR and UKCA approvals, this cable provides a trusted solution for professional electrical installations.
Key Features
4 core heat resistant flexible cable
Fine stranded Class 5 copper conductors
High temperature resistant PVC insulation and outer sheath
Designed for elevated temperature environments
Suitable for storage heaters and immersion heaters
Ideal for heating controls and electrical apparatus
Flexible construction for easier installation
Round cable profile for straightforward routing
Suitable for indoor applications
Rated voltage: 300/500V
Manufactured to BS EN 50525-2-11 standards
BASEC approved
CE, HAR and UKCA certified
Designed for Heating and High Temperature Applications
The Pitacs 3094Y 4 Core Heat Resistant Flex Cable is engineered for installations where reliable electrical performance is required in areas exposed to higher operating temperatures. The fine stranded copper conductors provide excellent conductivity and flexibility, allowing the cable to be routed easily through heating systems, control panels and electrical equipment.
Its high temperature resistant PVC insulation and sheath are designed to withstand continuous operating temperatures up to 90°C, making the cable particularly suitable for storage heaters, immersion heaters and other heating appliances. The 4 core configuration also supports applications requiring multiple conductors for power and control functions within a single flexible cable assembly.
Technical Information
Voltage Rating: 300/500V
Conductor Material: Fine Stranded Copper
Conductor Class: Class 5
Cable Profile: Round
Insulation Material: High Temperature Resistant PVC
Outer Sheath Material: High Temperature Resistant PVC
Operating Temperature: -15°C to +90°C
Maximum Short Circuit Temperature: 150°C
AC Test Voltage: 2kV
Minimum Bending Radius: 5 x cable diameter
Suitable for indoor installations only
Not suitable for outdoor use
Additional Technical Details
UK Code: 3094Y
Harmonised Code: H05V2V2-F
Standards: BS EN 50525-2-11
Certifications: BASEC, CE, HAR, UKCA
Core Configuration: 4 Core
Conductor Colours: Brown, Black, Grey and Green/Yellow
Available in multiple conductor sizes and cut lengths
Suitable for storage heaters and immersion heaters
Packaging options include coils and drums depending on size
Current carrying capacities vary depending on installation method and conductor size
The Pitacs 3094Y 4 Core Heat Resistant Flex Cable provides a dependable and flexible wiring solution for heating systems and elevated temperature electrical applications, combining fine stranded copper conductors, high temperature resistant PVC insulation and trusted UK standard compliance for reliable long-term performance.
