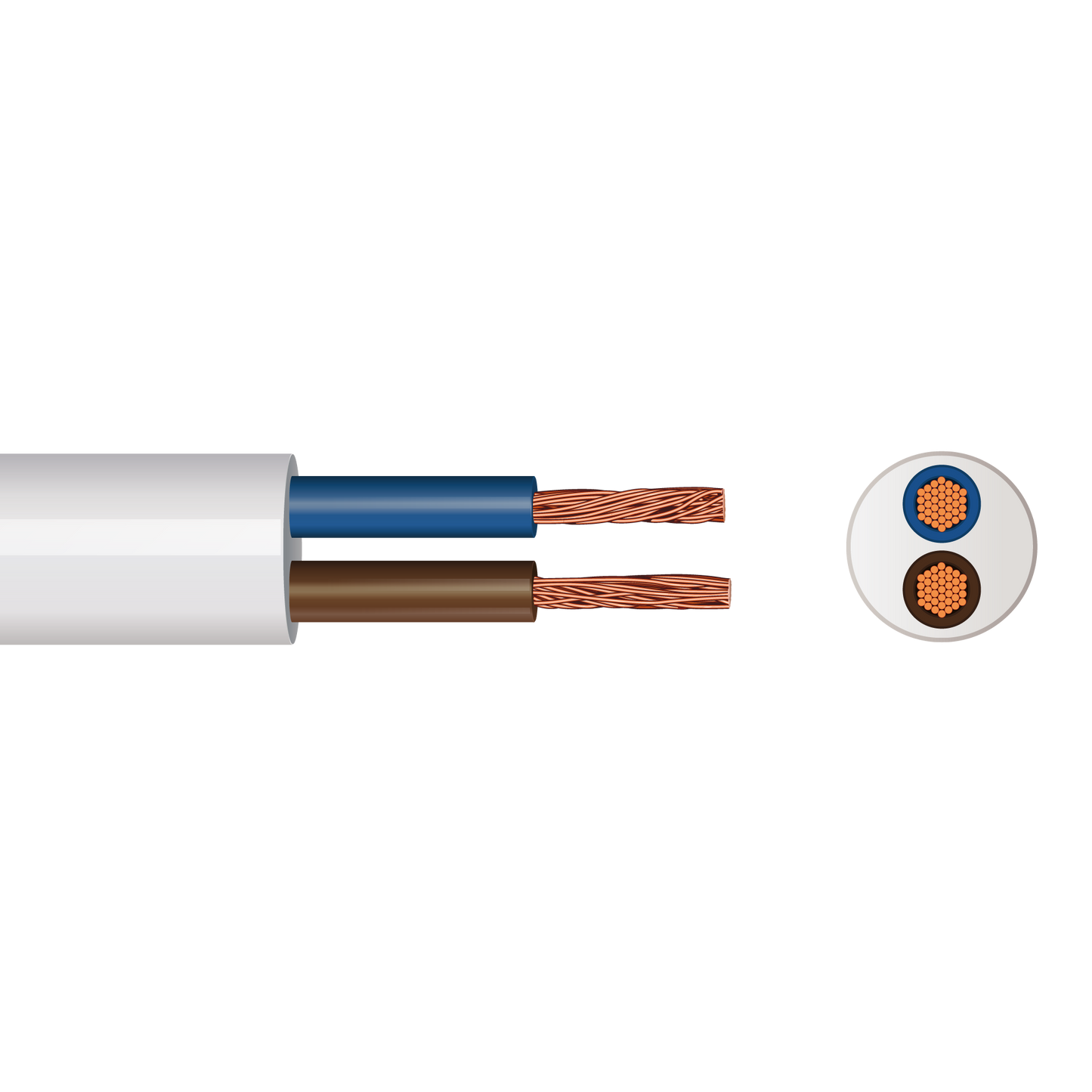

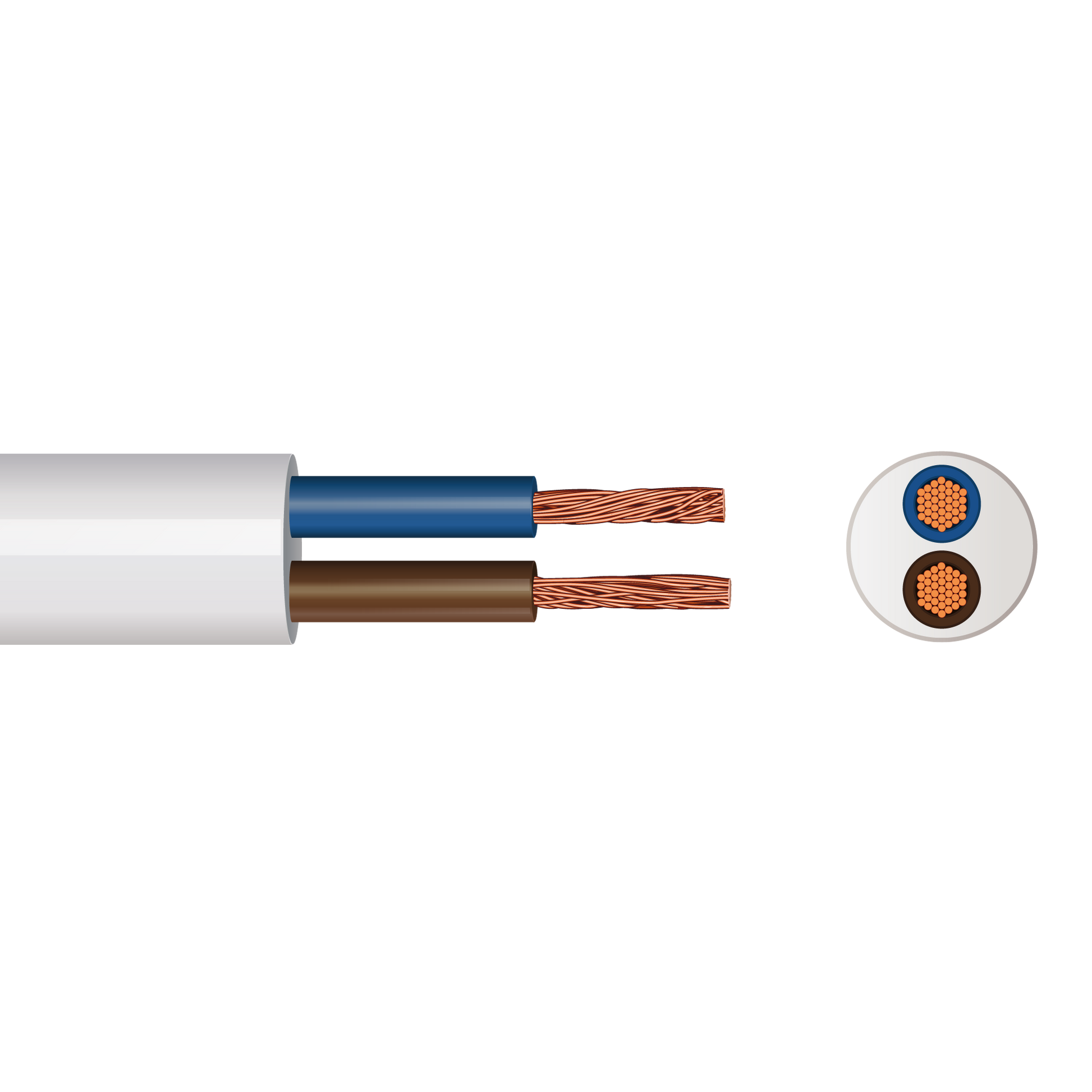

Pitacs 3182B 2 Core Round Flex LSZH Cable

Pitacs 3182B 2 Core Round Flex LSZH Cable

The Pitacs 3182B 2 Core Round Flex LSZH Cable is a high performance low smoke zero halogen flexible cable designed for medium duty electrical applications where enhanced fire safety and reduced smoke emissions are required. Ideal for commercial buildings, public spaces, offices, schools, hospitals and residential installations, this durable 2 core flex cable provides reliable electrical performance with excellent flexibility for portable appliances, extension leads and electrical equipment.

Manufactured using fine stranded copper conductors with low smoke zero halogen insulation and sheathing, the Pitacs 3182B cable offers dependable conductivity alongside improved safety characteristics in the event of fire. The LSZH construction helps reduce the emission of dense smoke and corrosive gases, making it suitable for installations where occupant safety and protection of equipment are important considerations. Manufactured to BS EN 50525 standards and BASEC approved, this cable provides a trusted and compliant solution for professional electrical installations. (products.pitacs.com)

Key Features

• 2 core round flexible LSZH cable
• Low Smoke Zero Halogen insulation and sheath
• Fine stranded copper conductors for enhanced flexibility
• Reduced smoke and corrosive gas emissions in fire conditions
• Suitable for medium duty domestic and commercial applications
• Ideal for portable appliances and extension leads
• Flexible round profile for easy cable routing
• Suitable for public buildings and commercial environments
• Durable construction for everyday use
• Rated voltage: 300/500V
• Manufactured to BS EN 50525 standards
• BASEC approved
• CE and UKCA certified

Enhanced Safety with LSZH Construction

The Pitacs 3182B 2 Core Round Flex LSZH Cable is designed for applications where both flexibility and fire performance are important. The fine stranded copper conductors provide excellent flexibility for routing and installation, while maintaining reliable electrical conductivity for portable equipment and electrical appliances.

Its low smoke zero halogen insulation and sheath help minimise the production of harmful smoke and corrosive gases in the event of a fire. This makes the cable particularly suitable for enclosed public environments where visibility, occupant safety and protection of sensitive electronic equipment are critical considerations.

Technical Information

• Voltage Rating: 300/500V
• Conductor Material: Copper
• Conductor Type: Fine Stranded Copper
• Conductor Class: Class 5
• Insulation Material: LSZH Compound
• Outer Sheath Material: LSZH Compound
• Cable Profile: Round
• Operating Temperature: -15°C to +70°C
• Maximum Short Circuit Temperature: 160°C
• Minimum Bending Radius: 6 x cable diameter
• Suitable for indoor installations
• Suitable for medium duty portable equipment

Additional Technical Details

• Standards: BS EN 50525-3-11
• Harmonised Code: H05Z1Z1-F
• Certifications: BASEC, CE, ISO 9001, UKCA
• Core Configuration: 2 Core
• Inner core colours: Brown and Blue
• Available outer sheath colours include White and Black
• Available conductor sizes include 0.75mm², 1.0mm² and 1.5mm²
• Suitable for offices, schools, hospitals and public buildings
• Supplied in coils and drums depending on cable size and length
• Current carrying capacities vary depending on installation method and cable size

What’s in the Box

• Pitacs 3182B 2 Core Round Flex LSZH Cable coil or drum

The Pitacs 3182B 2 Core Round Flex LSZH Cable provides a dependable and safety focused wiring solution for medium duty electrical applications, combining low smoke zero halogen construction, flexible stranded copper conductors and trusted UK standard compliance for reliable performance in modern installations.
