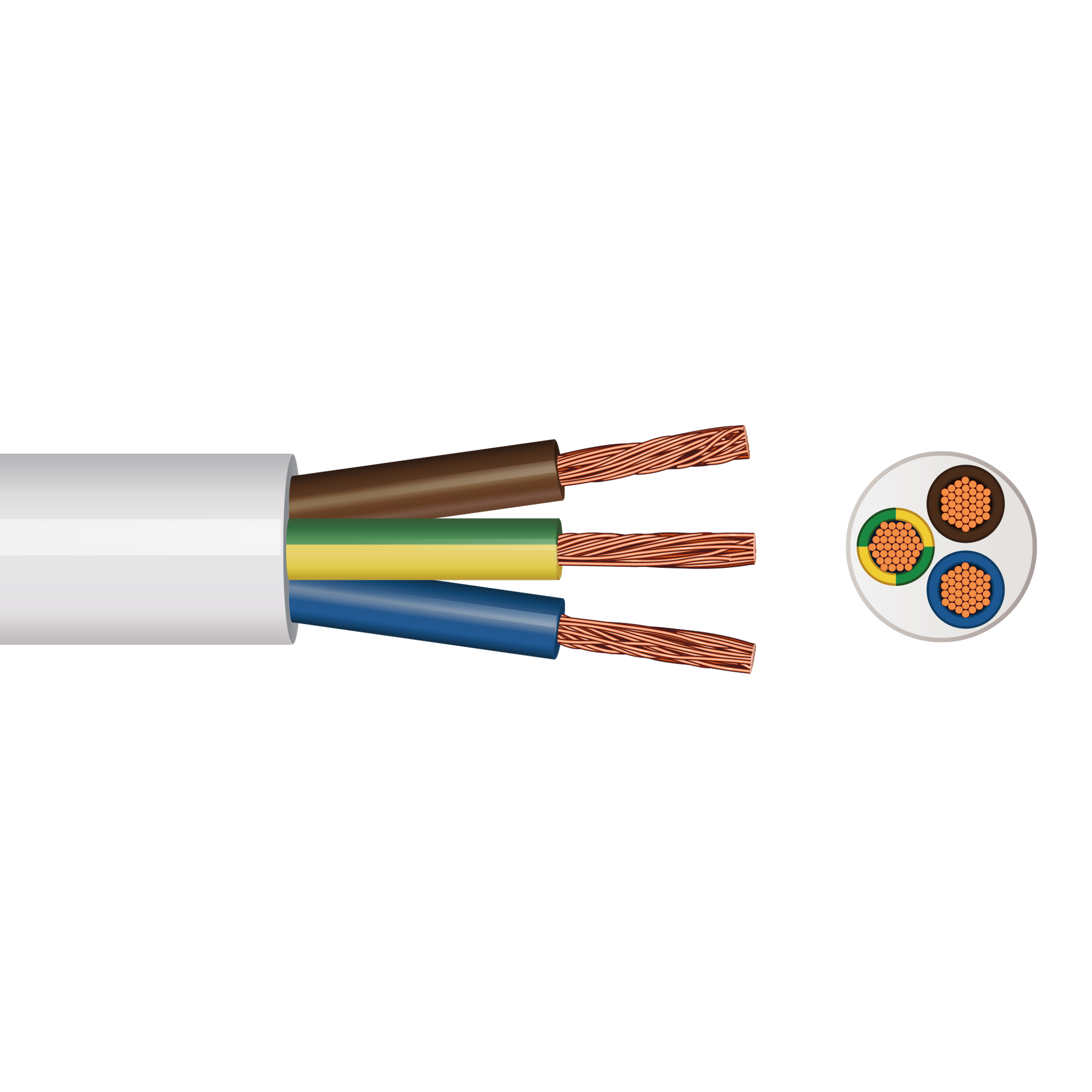

The Pitacs 3183B 3 Core Round Flex LSZH Cable is a high performance low smoke zero halogen flexible cable designed for medium duty electrical applications where enhanced fire safety and reduced smoke emissions are essential. Ideal for household appliances, commercial buildings, public spaces, offices, schools and healthcare environments, this durable 3 core flex cable delivers reliable electrical performance with excellent flexibility for portable appliances, extension leads and electrical equipment requiring an earth connection.
Manufactured using fine stranded copper conductors with low smoke zero halogen insulation and sheathing, the Pitacs 3183B cable provides dependable conductivity while helping to reduce the emission of dense smoke and corrosive gases in the event of a fire. The 3 core configuration includes live, neutral and earth conductors, making it suitable for appliances such as washing machines, spin dryers, refrigerators and other medium duty electrical equipment. Manufactured to BS EN 50525-3-11 standards and BASEC approved, this cable provides a trusted and compliant solution for professional electrical installations.
Key Features
3 core round flexible LSZH cable
Low Smoke Zero Halogen insulation and outer sheath
Fine stranded copper conductors for enhanced flexibility
Reduced smoke and corrosive gas emissions in fire conditions
Suitable for medium duty domestic and commercial applications
Ideal for household appliances and extension leads
Includes live, neutral and earth conductors
Suitable for public buildings and enclosed environments
Flexible round profile for easy cable routing
Rated voltage: 300/500V
Manufactured to BS EN 50525-3-11 standards
BASEC approved
CE and UKCA certified
Enhanced Fire Safety for Modern Installations
The Pitacs 3183B 3 Core Round Flex LSZH Cable is specifically designed for installations where fire performance, flexibility and reliable electrical operation are important considerations. The fine stranded Class 5 copper conductors provide excellent flexibility for easy routing and installation while maintaining dependable electrical conductivity for portable and fixed electrical equipment.
Its low smoke zero halogen construction helps minimise the release of harmful smoke and corrosive gases during fire conditions, improving visibility for evacuation and helping protect sensitive electrical equipment. This makes the cable particularly suitable for commercial premises, public buildings and enclosed environments where enhanced safety standards are required.
Technical Information
Voltage Rating: 300/500V
Conductor Material: Copper
Conductor Type: Fine Stranded Copper
Conductor Class: Class 5
Insulation Material: LSZH Compound
Outer Sheath Material: LSZH Compound
Cable Profile: Round
Operating Temperature: -15°C to +70°C
Maximum Short Circuit Temperature: 160°C
Minimum Bending Radius: 5 x cable diameter
Suitable for indoor installations
Generally unsuitable for outdoor or industrial applications
Additional Technical Details
Standards: BS EN 50525-3-11
Harmonised Code: H05Z1Z1-F
Certifications: BASEC, CE, HAR, ISO 9001, UKCA
Core Configuration: 3 Core
Inner core colours: Brown, Blue and Green/Yellow
Available conductor sizes include 0.75mm², 1.0mm², 1.5mm² and 2.5mm²
Suitable for washing machines, refrigerators and medium domestic appliances
Available in White outer sheath finish
Supplied in coils and drums depending on cable size and length
Current carrying capacities vary depending on cable size and installation method
The Pitacs 3183B 3 Core Round Flex LSZH Cable provides a dependable and safety focused wiring solution for medium duty electrical applications, combining low smoke zero halogen construction, flexible stranded copper conductors and trusted UK standard compliance for reliable performance in modern domestic and commercial installations.
