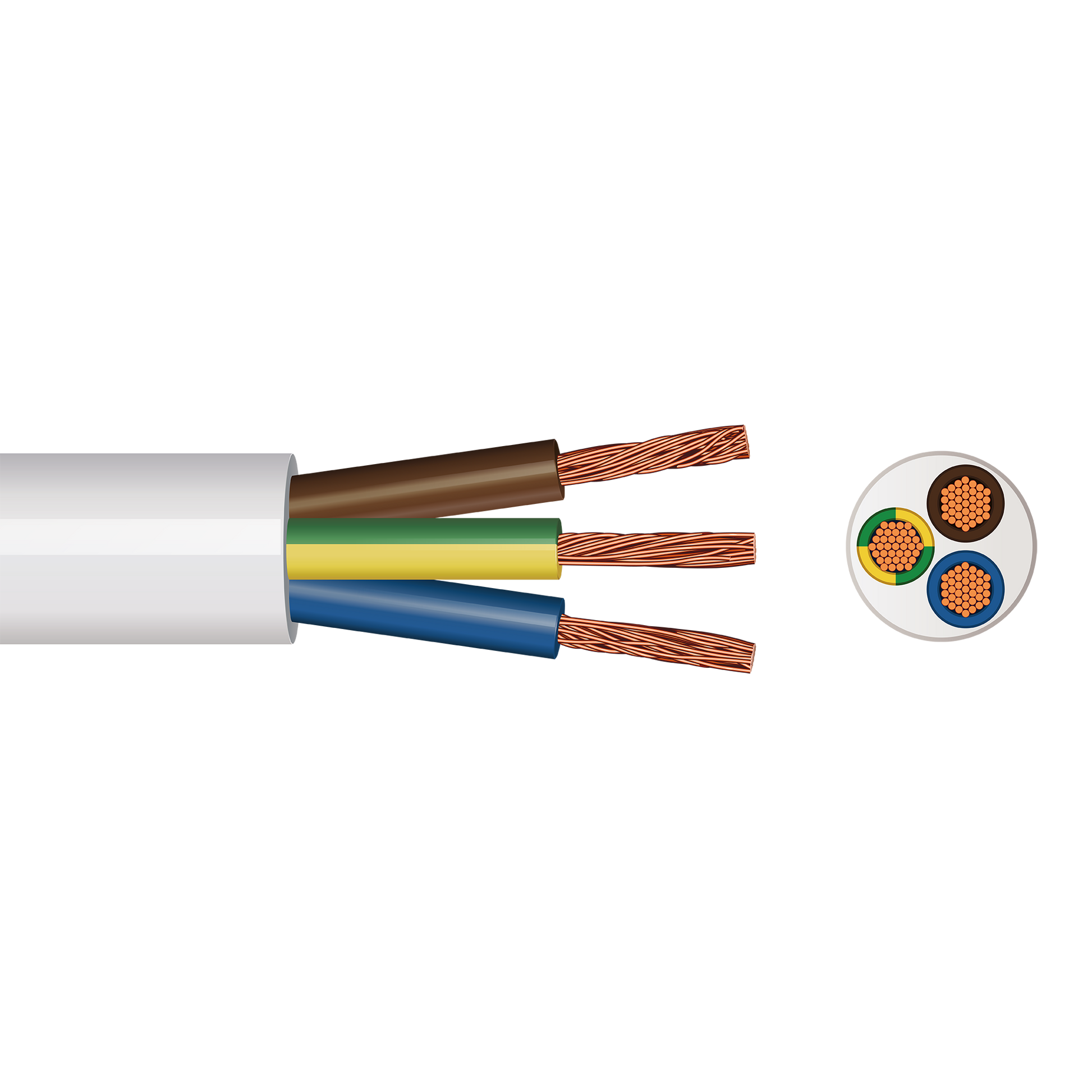

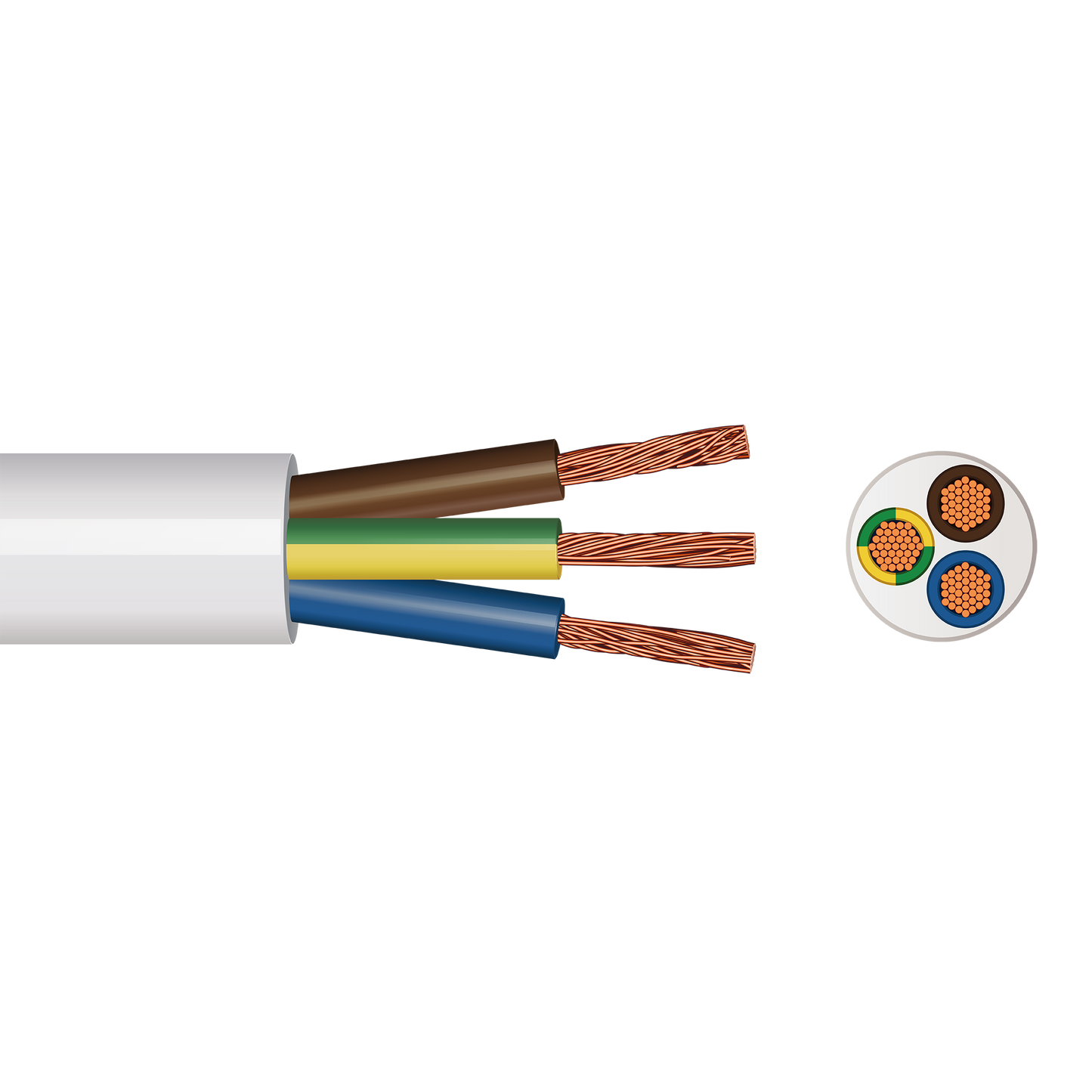

The Pitacs 3183Y 3 Core Round Flex Cable is a durable and flexible medium duty cable designed for a wide range of domestic, commercial and light industrial electrical applications. Ideal for household appliances, extension leads, kitchen equipment, office appliances and portable electrical equipment, this high quality 3 core flex cable provides dependable electrical performance with excellent flexibility for everyday installation and operation.
Manufactured using fine stranded copper conductors with durable PVC insulation and outer sheathing, the Pitacs 3183Y cable delivers reliable conductivity alongside enhanced flexibility for applications requiring repeated movement or regular handling. The 3 core configuration includes live, neutral and earth conductors, making it suitable for appliances requiring an earth connection for additional electrical safety. Manufactured to BS EN 50525-2-11 standards and BASEC approved, this cable offers a trusted and compliant solution for professional and general electrical use.
Key Features
3 core round flexible cable
Fine stranded copper conductors for enhanced flexibility
Durable PVC insulation and outer sheath
Suitable for medium duty domestic and commercial applications
Ideal for household appliances and extension leads
Suitable for washing machines, refrigerators and kitchen appliances
Includes live, neutral and earth conductors
Flexible round profile for easy cable routing
Designed for indoor use
Rated voltage: 300/500V
Manufactured to BS EN 50525-2-11 standards
BASEC approved
CE and UKCA certified
Flexible and Reliable for Medium Duty Applications
The Pitacs 3183Y 3 Core Round Flex Cable is designed for applications where flexibility, durability and dependable electrical performance are essential. The fine stranded copper conductors allow the cable to bend and route easily without compromising conductivity, making it suitable for movable appliances and portable electrical equipment.
Its durable PVC insulation and outer sheath help protect against everyday wear and mechanical stress while maintaining flexibility for regular use. Commonly used with medium domestic appliances such as washing machines, spin dryers and refrigerators, the 3183Y cable offers a practical and dependable solution for installers, manufacturers and electrical contractors.
Technical Information
Voltage Rating: 300/500V
Conductor Material: Copper
Conductor Type: Fine Stranded Copper
Conductor Class: Class 5
Insulation Material: PVC
Outer Sheath Material: PVC
Cable Profile: Round
Operating Temperature: -15°C to +70°C
Maximum Short Circuit Temperature: 160°C
Minimum Bending Radius: 5 x cable diameter
Suitable for indoor applications
Suitable for medium duty portable appliances
Additional Technical Details
Standards: BS EN 50525-2-11
Harmonised Code: H05VV-F
Certifications: BASEC, CE, HAR, ISO 9001, UKCA
Core Configuration: 3 Core
Inner core colours: Brown, Blue and Green/Yellow

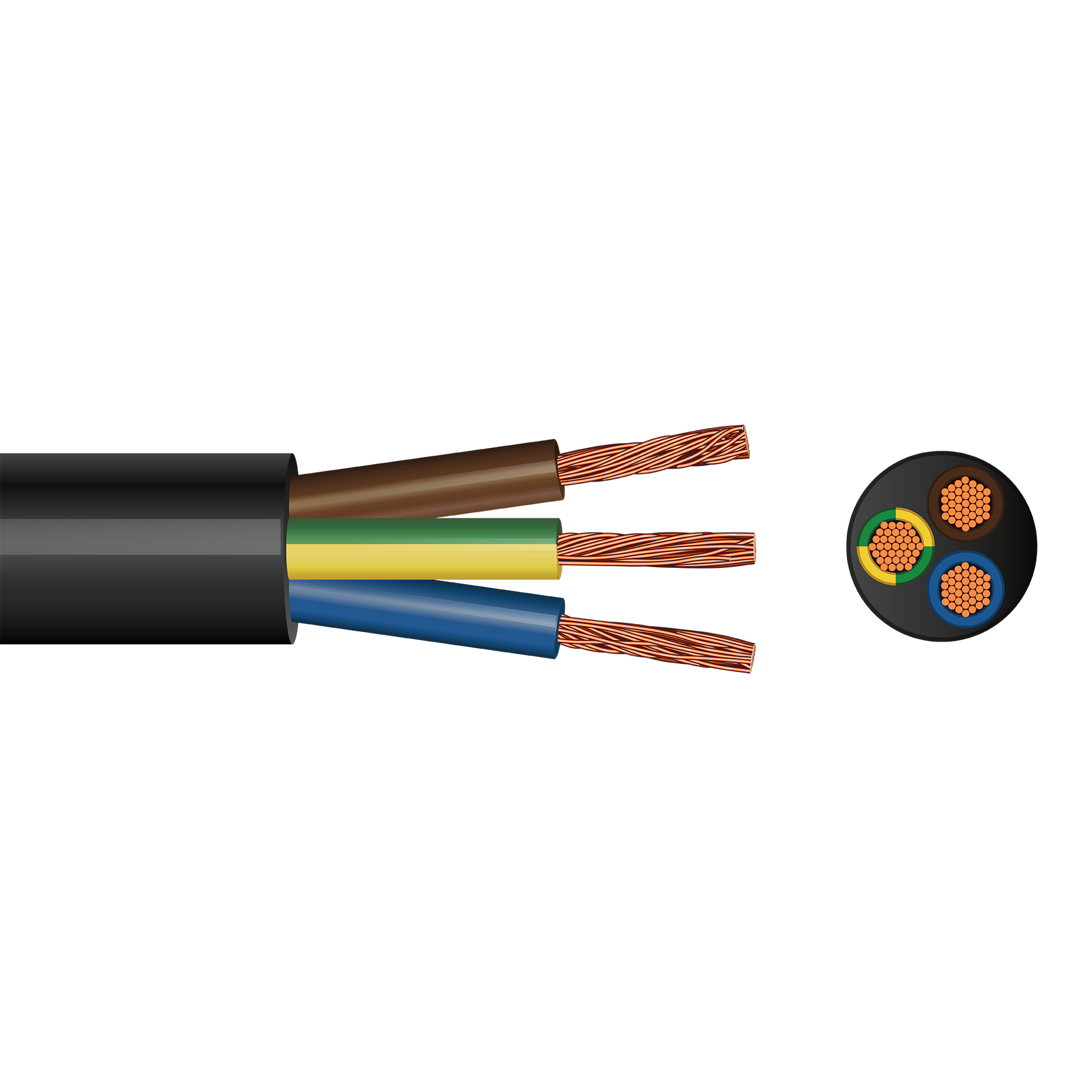

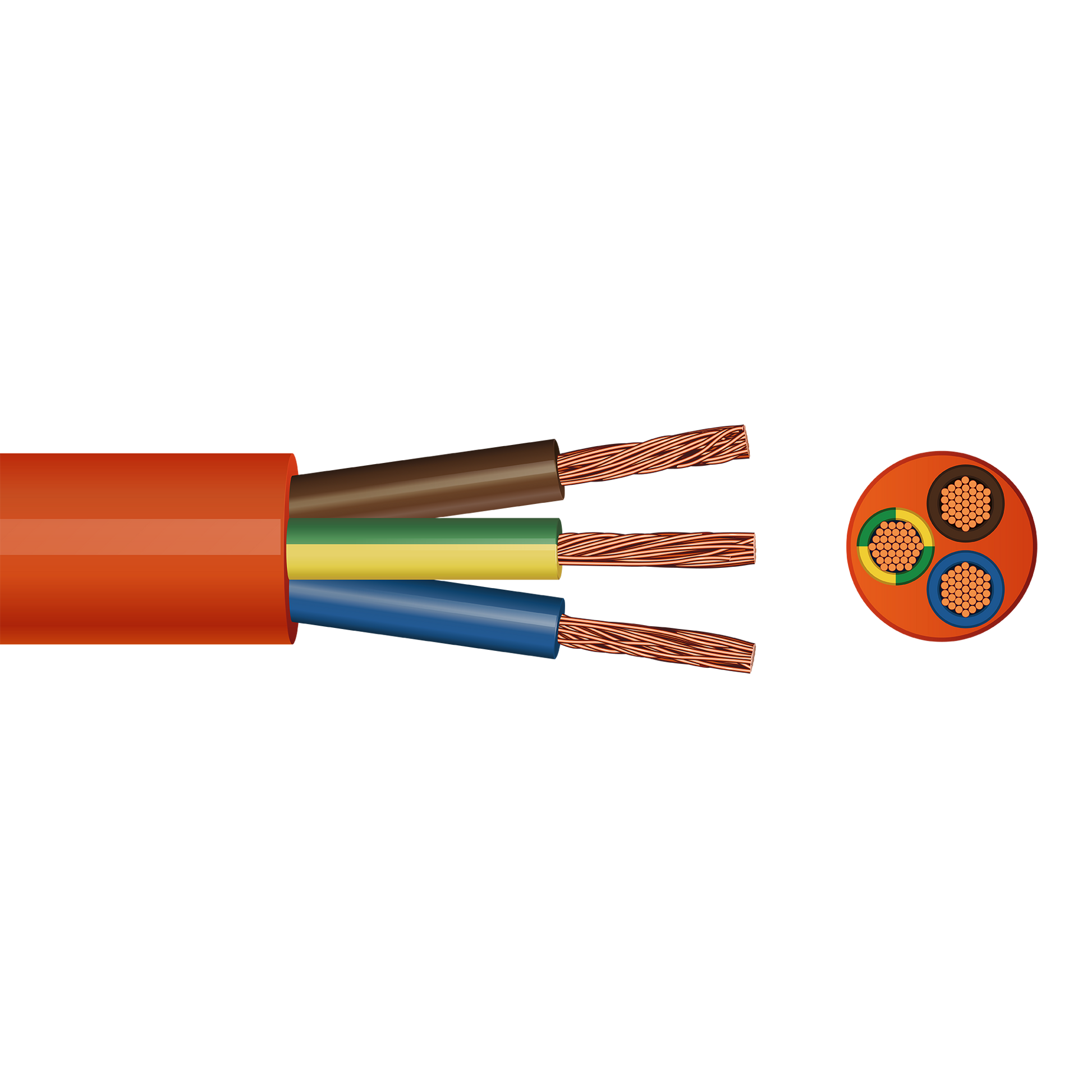

Available outer sheath colours include Black, White and Orange
Available conductor sizes include 0.75mm², 1.0mm², 1.5mm², 2.5mm² and 4.0mm²
Supplied in coils and drums depending on cable size and length
Suitable for domestic premises, offices and workshops
Current carrying capacities vary depending on cable size and installation method
What’s in the Box
Pitacs 3183Y 3 Core Round Flex Cable coil or drum
The Pitacs 3183Y 3 Core Round Flex Cable provides a dependable and flexible wiring solution for medium duty electrical applications, combining durable PVC construction, fine stranded copper conductors and trusted UK standard compliance for reliable everyday performance.
