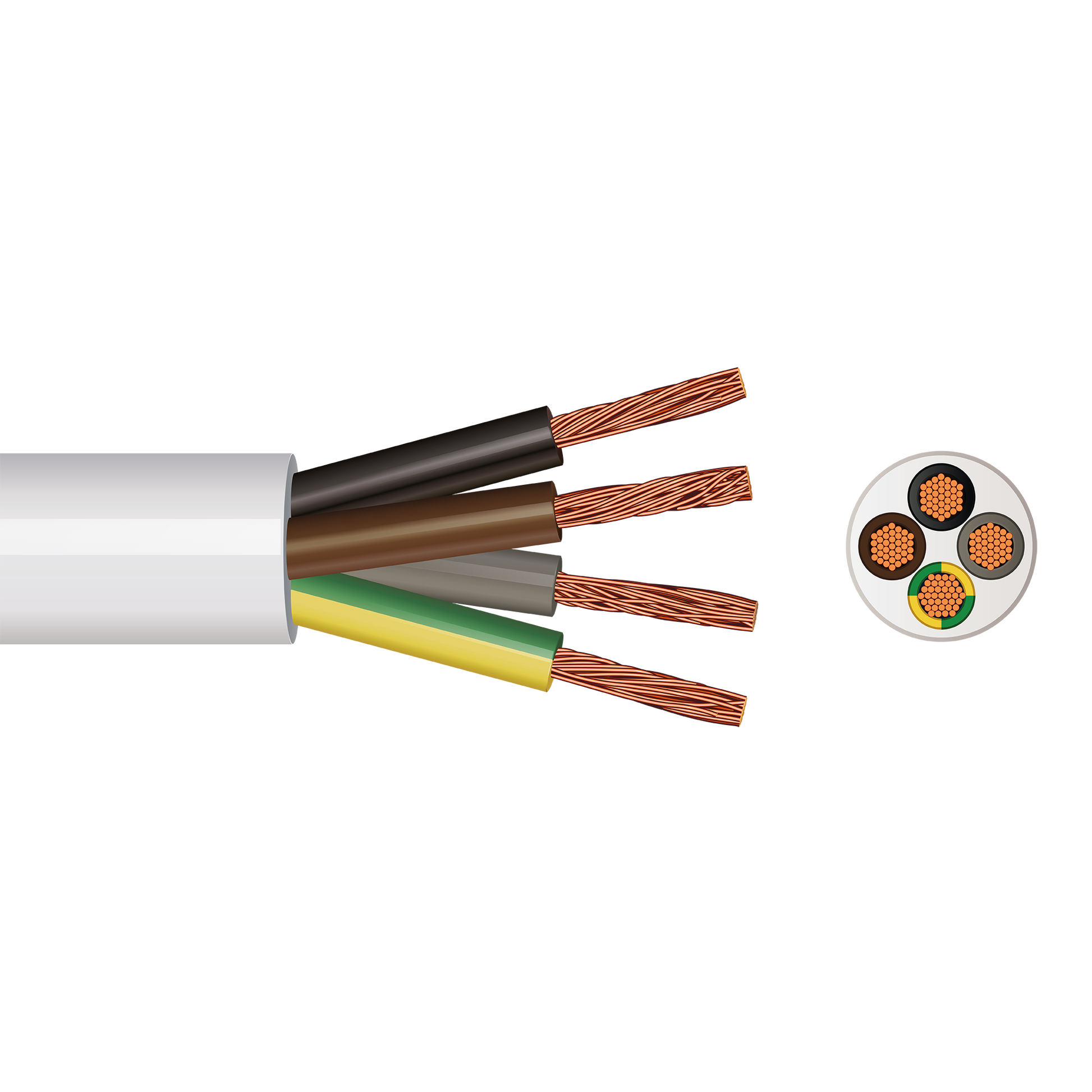

The Pitacs 3184B 4 Core Round Flex LSZH Cable is a high quality low smoke zero halogen flexible cable designed for medium duty electrical applications where enhanced fire safety, reduced smoke emissions and reliable performance are essential. Suitable for commercial buildings, public spaces, schools, hospitals, offices and residential installations, this durable 4 core flex cable provides dependable power and control connections whilst maintaining excellent flexibility for easy installation and cable routing.
Manufactured using fine stranded copper conductors and LSZH insulation and sheathing compounds, the Pitacs 3184B cable combines outstanding flexibility with improved fire performance. In the event of a fire, the low smoke zero halogen construction helps minimise the release of dense smoke and corrosive gases, making it particularly suitable for enclosed environments where occupant safety and protection of sensitive equipment are important considerations. Manufactured to BS EN 50525-3-11 standards and BASEC approved, this cable delivers a trusted and compliant solution for professional electrical installations.
Key Features
4 core round flexible LSZH cable
Low Smoke Zero Halogen insulation and outer sheath
Fine stranded copper conductors for superior flexibility
Reduced smoke and corrosive gas emissions during fire conditions
Suitable for medium duty domestic and commercial applications
Ideal for control equipment, lighting systems and electrical appliances
Flexible round profile for straightforward installation
Suitable for public buildings and enclosed environments
Durable construction for everyday use
Rated voltage: 300/500V
Manufactured to BS EN 50525-3-11 standards
BASEC approved
CE and UKCA certified
Designed for Safety Critical Installations
The Pitacs 3184B 4 Core Round Flex LSZH Cable is designed for applications requiring multiple conductors combined with enhanced fire safety performance. The fine stranded Class 5 copper conductors provide excellent flexibility, allowing the cable to be routed easily around equipment, machinery and control systems whilst maintaining dependable electrical performance.
Its LSZH insulation and sheathing significantly reduce the production of harmful smoke and corrosive gases during fire conditions, helping to improve evacuation visibility and reduce damage to electrical equipment. This makes the cable an ideal choice for commercial premises, public buildings and installations where safety requirements are a priority.
Technical Information
Voltage Rating: 300/500V
Conductor Material: Copper
Conductor Type: Fine Stranded Copper
Conductor Class: Class 5
Insulation Material: LSZH Compound
Outer Sheath Material: LSZH Compound
Cable Profile: Round
Operating Temperature: -15°C to +70°C
Maximum Short Circuit Temperature: 160°C
Minimum Bending Radius: 5 x cable diameter
Suitable for indoor installations
Suitable for medium duty applications
Additional Technical Details
Standards: BS EN 50525-3-11
Harmonised Code: H05Z1Z1-F
Certifications: BASEC, CE, HAR, ISO 9001, UKCA
Core Configuration: 4 Core
Conductor Colours: Brown, Black, Grey and Blue
Available conductor sizes include 0.75mm², 1.0mm² and 1.5mm²
Suitable for control panels and switching equipment
Ideal for commercial and public sector installations
Available in White outer sheath finish
Supplied in coils and drums depending on cable size and length
Current carrying capacities vary depending on installation method
The Pitacs 3184B 4 Core Round Flex LSZH Cable provides a dependable and safety focused wiring solution for medium duty electrical applications, combining low smoke zero halogen construction, flexible stranded copper conductors and trusted UK standard compliance for reliable performance in commercial, residential and public sector installations.
