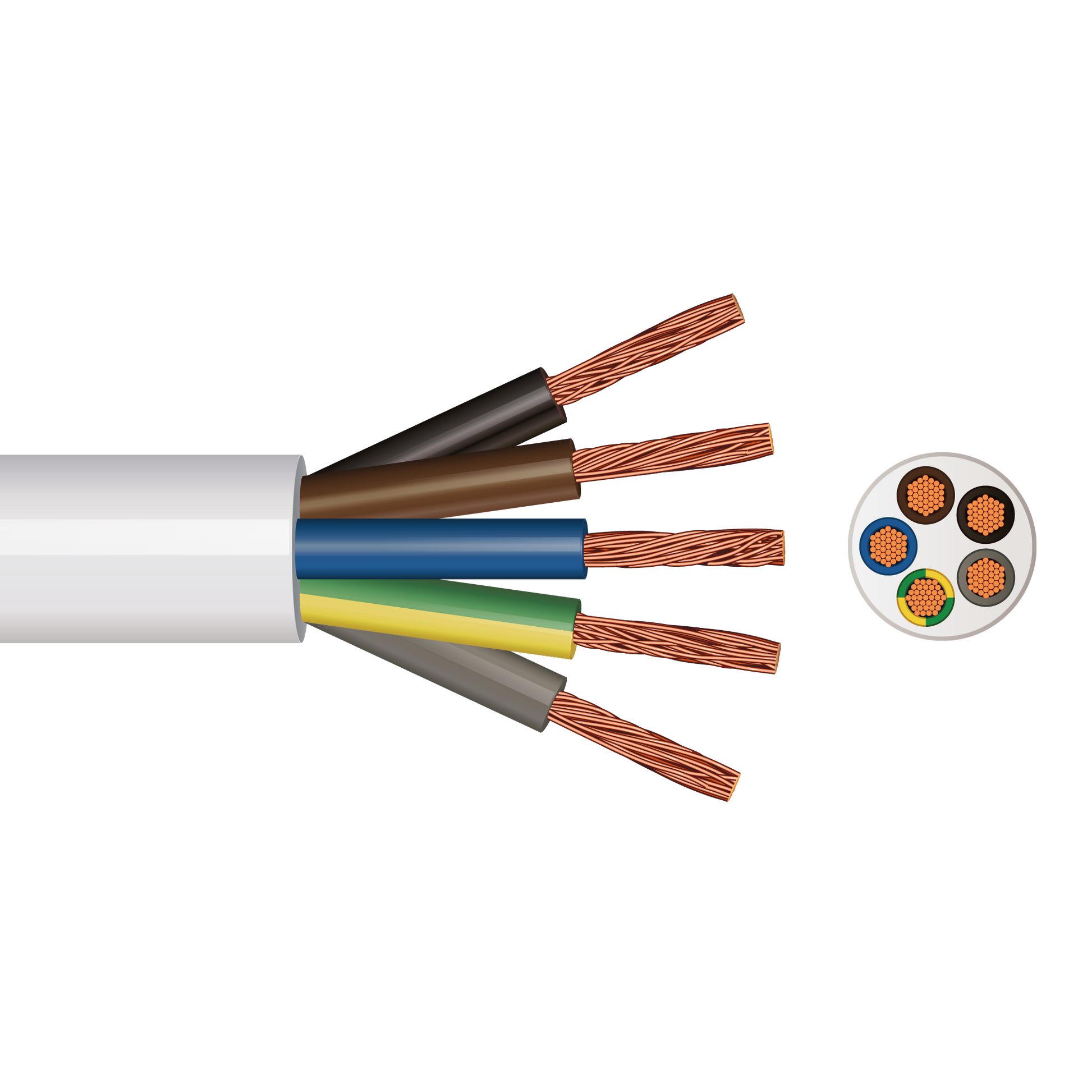

The Pitacs 3185B 5 Core Round Flex LSZH Cable is a premium low smoke zero halogen flexible cable designed for medium duty electrical applications where enhanced fire performance, reduced smoke emissions and reliable multi-core connectivity are essential. Suitable for commercial buildings, public facilities, industrial control systems, machinery and electrical equipment, this high quality 5 core flex cable provides dependable electrical performance with excellent flexibility for professional installations.
Manufactured using fine stranded copper conductors with LSZH insulation and sheathing compounds, the Pitacs 3185B cable combines outstanding flexibility with enhanced safety characteristics. The low smoke zero halogen construction helps reduce the release of dense smoke and corrosive gases in the event of a fire, making it particularly suitable for installations in enclosed spaces and high occupancy buildings where safety and equipment protection are important considerations. Manufactured to BS EN 50525-3-11 standards and BASEC approved, this cable provides a trusted and compliant solution for modern electrical installations.
Key Features
5 core round flexible LSZH cable
Low Smoke Zero Halogen insulation and outer sheath
Fine stranded copper conductors for enhanced flexibility
Reduced smoke and corrosive gas emissions during fire conditions
Suitable for medium duty commercial and industrial applications
Ideal for control systems, machinery and electrical equipment
Flexible round profile for simple cable routing
Suitable for public buildings and safety critical environments
Durable construction for regular handling and movement
Rated voltage: 300/500V
Manufactured to BS EN 50525-3-11 standards
BASEC approved
CE and UKCA certified
Multi-Core Performance with Enhanced Fire Safety
The Pitacs 3185B 5 Core Round Flex LSZH Cable is designed for applications requiring multiple conductors within a flexible and durable cable construction. The fine stranded Class 5 copper conductors provide excellent flexibility and ease of installation, making the cable suitable for portable equipment, control systems, switching equipment and machinery connections.
Its LSZH insulation and sheath help minimise harmful smoke and corrosive gas emissions in fire conditions, improving safety for building occupants and helping to protect valuable electrical and electronic equipment. This makes the cable particularly suitable for schools, hospitals, commercial premises, transport hubs and other public environments where enhanced fire safety standards are required.
Technical Information
Voltage Rating: 300/500V
Conductor Material: Copper
Conductor Type: Fine Stranded Copper
Conductor Class: Class 5
Insulation Material: LSZH Compound
Outer Sheath Material: LSZH Compound
Cable Profile: Round
Operating Temperature: -15°C to +70°C
Maximum Short Circuit Temperature: 160°C
Minimum Bending Radius: 5 x cable diameter
Suitable for indoor installations
Suitable for medium duty applications
Additional Technical Details
Standards: BS EN 50525-3-11
Harmonised Code: H05Z1Z1-F
Certifications: BASEC, CE, HAR, ISO 9001, UKCA
Core Configuration: 5 Core
Conductor Colours: Brown, Black, Grey, Blue and Green/Yellow
Available conductor sizes include 0.75mm², 1.0mm² and 1.5mm²
Suitable for control panels and electrical equipment
Ideal for commercial, industrial and public sector installations
Available in White outer sheath finish
Supplied in coils and drums depending on cable size and length
Current carrying capacities vary depending on installation method
The Pitacs 3185B 5 Core Round Flex LSZH Cable provides a dependable and safety focused wiring solution for medium duty multi-core electrical applications, combining low smoke zero halogen construction, flexible stranded copper conductors and trusted UK standard compliance for reliable performance in commercial, industrial and public sector environments.
