Pitacs 6181B Double Insulated Single Core LSZH Cable

Pitacs 6181B Double Insulated Single Core LSZH Cable

The Pitacs 6181B Double Insulated Single Core LSZH Cable is a professional grade Low Smoke Zero Halogen cable designed for fixed electrical installations where reduced smoke and acid gas emissions are essential in the event of a fire. Ideal for domestic, commercial and light industrial applications, this high performance cable is commonly used for consumer unit connections, meter tails and protected wiring installations in public buildings and enclosed environments.

Manufactured with a Class 2 stranded copper conductor, cross-linked polyethylene insulation and an LSZH outer sheath, the Pitacs 6181B cable provides excellent durability, thermal performance and enhanced fire safety characteristics. Suitable for installation in dry or damp conditions, the cable can be clipped direct, installed on trays or routed through conduit and trunking systems where reliable fixed wiring performance is required. Manufactured to BS 7211:2012 standards and BASEC approved, this cable provides a dependable and compliant solution for modern electrical installations.

Key Features

• Double insulated single core LSZH cable
• Low Smoke Zero Halogen construction for enhanced fire safety
• Class 2 stranded copper conductor
• Cross-linked polyethylene insulation
• Suitable for consumer unit and meter tail applications
• Designed for domestic and light industrial wiring
• Suitable for dry and damp installations
• Can be installed in conduit, trunking and cable ducting
• Suitable for clipped direct and tray installations
• Rated voltage: 450/750V
• Manufactured to BS 7211:2012 standards
• BASEC approved
• CE and UKCA certified

Enhanced Fire Safety Performance

The Pitacs 6181B Double Insulated Single Core LSZH Cable is specifically designed for installations where smoke suppression and reduced toxic emissions are critical. Its LSZH construction helps minimise smoke density and corrosive gas release during fire conditions, making it particularly suitable for use in public buildings, apartment blocks, escape routes and enclosed spaces.

The stranded copper conductor allows for easier installation handling and dependable electrical conductivity, while the cross-linked polyethylene insulation supports higher operating temperatures than standard PVC alternatives. Suitable for fixed installation in conduit, trunking, cable trays and free air applications, the 6181B cable delivers reliable long term performance for professional electrical projects.

Technical Information

• Voltage Rating: 450/750V
• Conductor Material: Copper
• Conductor Type: Stranded Copper
• Conductor Class: Class 2
• Insulation Material: Cross-linked Polyethylene (XLPE)
• Outer Sheath Material: LSZH
• Cable Profile: Round
• Operating Temperature: -15°C to +90°C
• Maximum Short Circuit Temperature: 250°C
• Minimum Bending Radius: 8 x cable diameter
• Suitable for indoor fixed installations
• Not suitable for underground installation

Additional Technical Details

• Standards: BS 7211:2012 / BS EN 60228
• Certifications: BASEC, CE, ISO 9001, UKCA
• Flame Retardancy: BS EN/IEC 60332-1
• Halogen Free: IEC/EN 60754-1/2
• Smoke Emission Standard: EN 61034
• Application: Consumer units and fixed wiring installations
• Available sizes include 16mm² and 25mm²

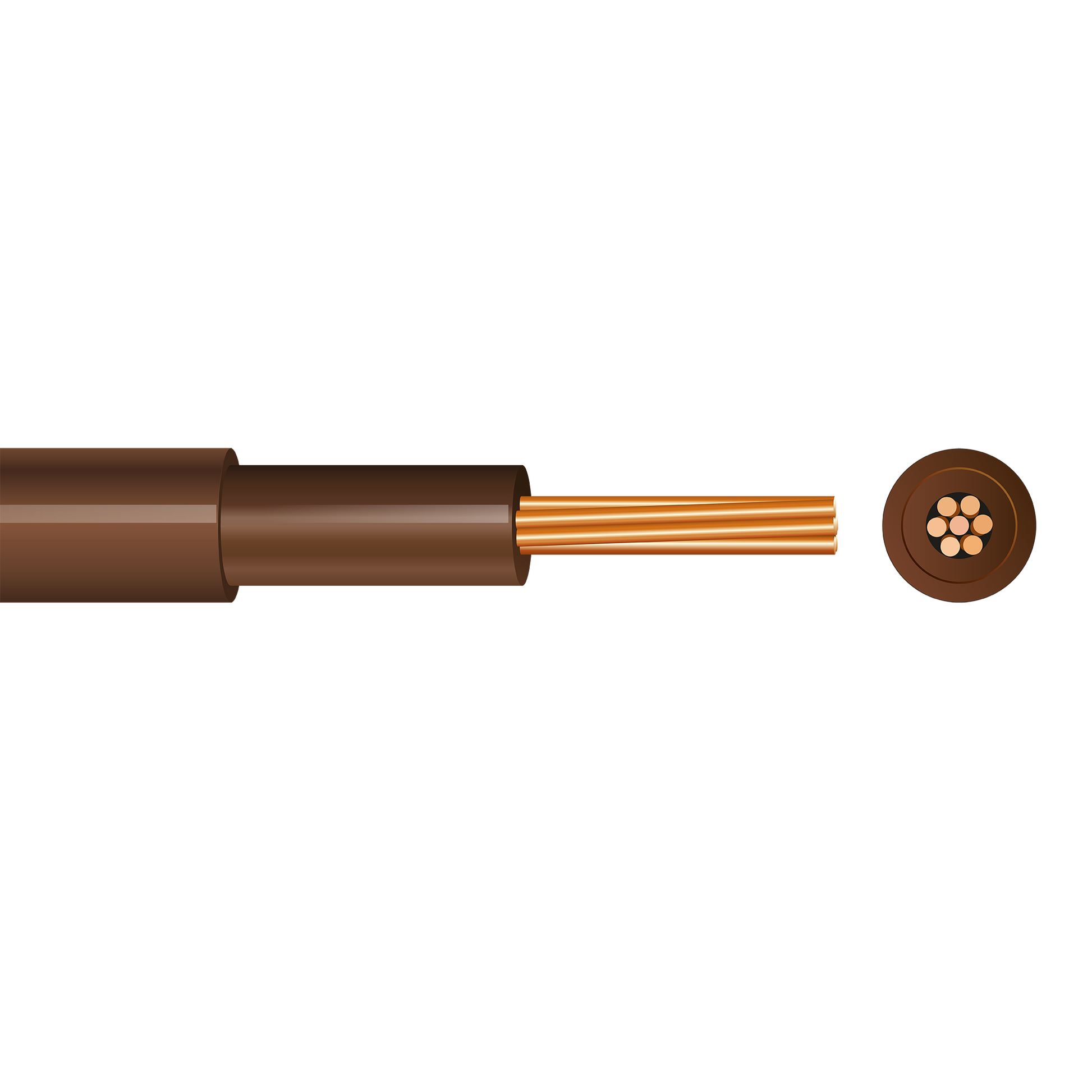

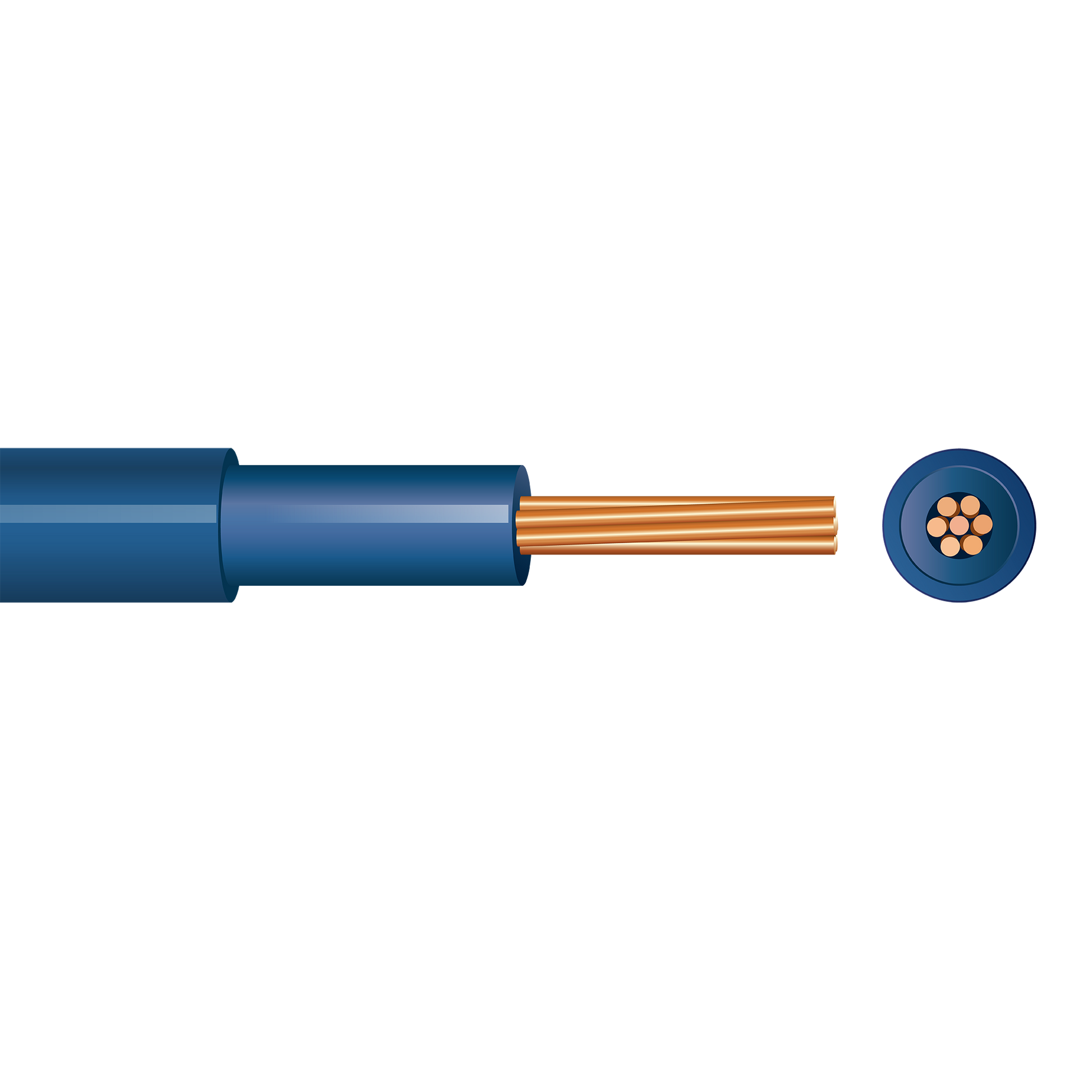

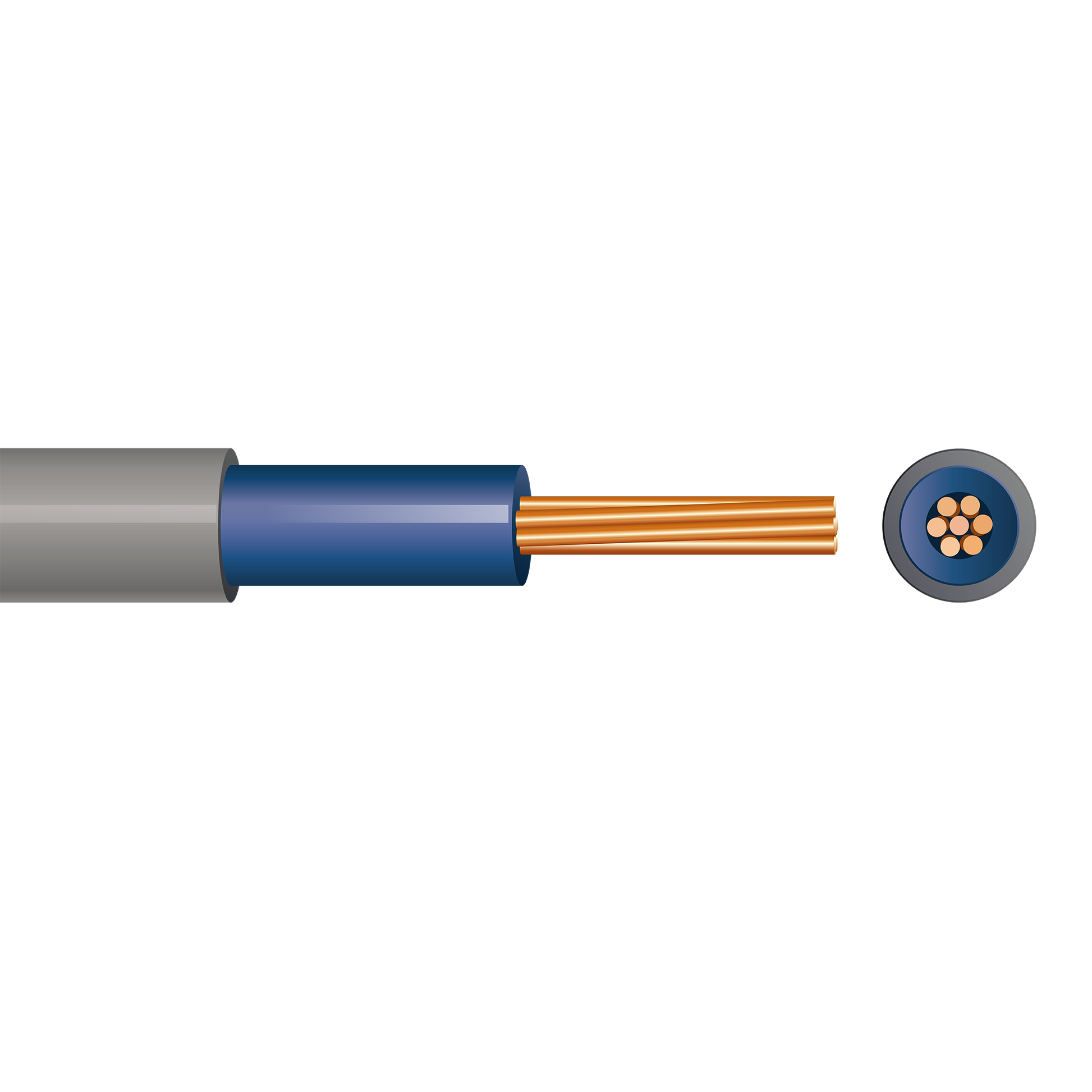

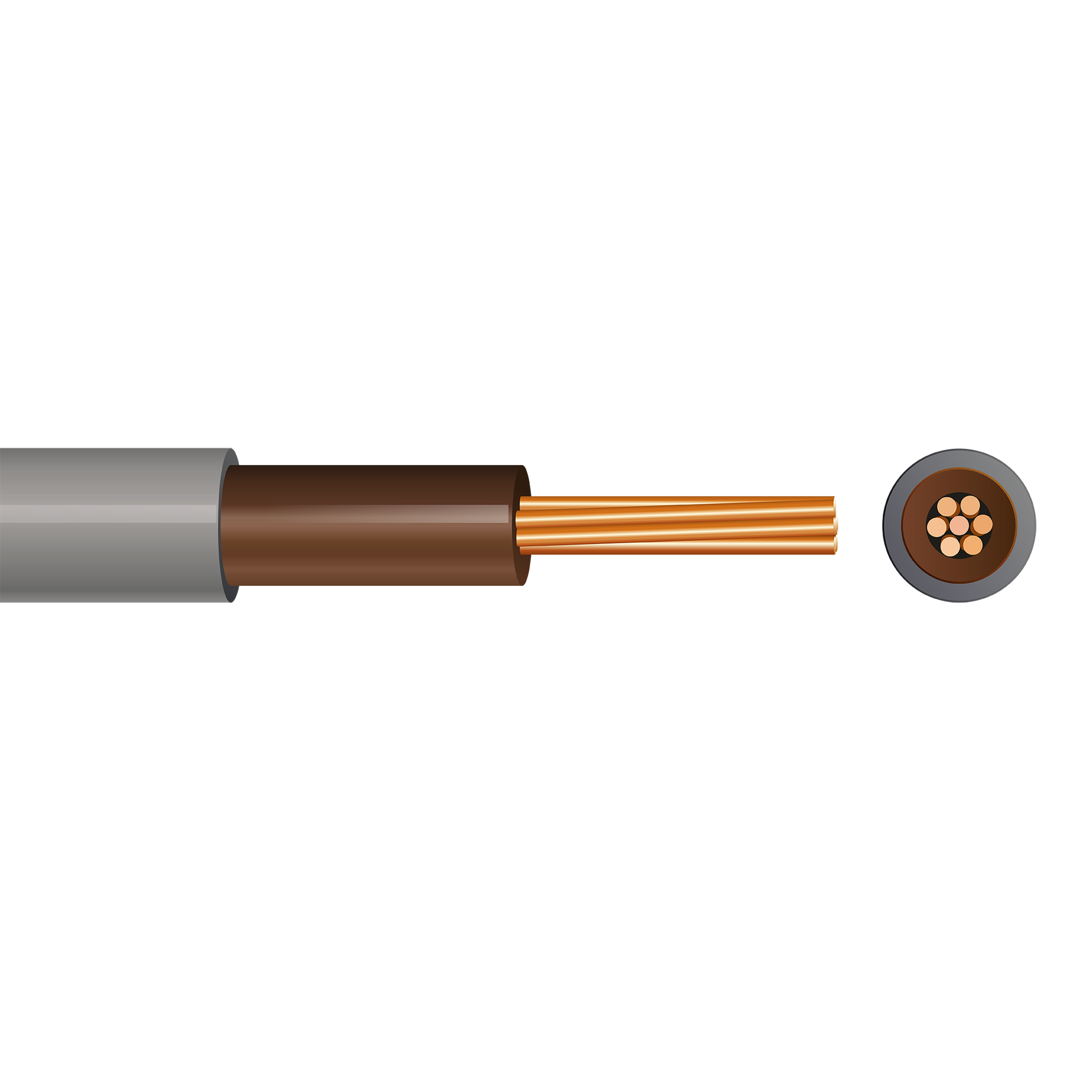

• Available sheath/core combinations include Grey with Brown, Grey with Blue, Brown with Brown and Blue with Blue
• Supplied on drums in multiple cable lengths depending on size
• Current carrying capacities vary depending on installation method and cable size

What’s in the Box

• Pitacs 6181B Double Insulated Single Core LSZH Cable drum

The Pitacs 6181B Double Insulated Single Core LSZH Cable offers a professional and compliant wiring solution for modern fixed installations, combining enhanced fire safety properties, durable LSZH construction and dependable electrical performance for consumer unit and distribution applications.
