The Pitacs 6242B Twin & Earth LSZH Cable is a high performance Low Smoke Zero Halogen fixed wiring cable designed for electrical installations where enhanced fire safety and reduced smoke emissions are essential. Suitable for domestic, commercial and public building applications, this cable is commonly used for lighting circuits, socket outlets, cooker circuits and general power distribution in environments where occupant safety is a priority.
Manufactured with solid or stranded copper conductors depending on cable size, cross-linked polyethylene insulation and an LSZH outer sheath, the Pitacs 6242B cable delivers reliable electrical performance alongside superior fire safety characteristics. In the event of a fire, the LSZH construction helps minimise smoke density and corrosive gas emissions, making it ideal for installations in apartment blocks, schools, hospitals, offices and escape routes. Manufactured to BS 7211:2012 standards and BASEC approved, this cable provides a dependable and compliant solution for modern fixed wiring installations.
Key Features
Twin & Earth Low Smoke Zero Halogen cable
LSZH construction for enhanced fire safety
Suitable for lighting, socket and power circuits
Designed for domestic and commercial fixed wiring
Reduced smoke and corrosive gas emissions during fire conditions
Cross-linked polyethylene insulation for improved thermal performance
Flat cable profile for neat installation
Suitable for dry and damp environments
Can be installed in conduit and trunking systems
Rated voltage: 300/500V
Manufactured to BS 7211:2012 standards
BASEC approved
CE and UKCA certified
Enhanced Safety for Fixed Wiring Applications
The Pitacs 6242B Twin & Earth LSZH Cable is designed for installations where limiting smoke and toxic gas emissions is critical. Its LSZH outer sheath and insulation help improve safety in fire conditions, supporting safer evacuation and reducing damage to sensitive electronic equipment.
Suitable for clipping direct to surfaces, installation within conduit and trunking systems or embedding within suitable building structures, the 6242B cable offers flexibility across a wide range of fixed wiring applications. The durable construction and dependable copper conductors make it a trusted choice for electricians and contractors working on modern domestic and commercial projects.
Technical Information
Voltage Rating: 300/500V
Conductor Material: Copper
Conductor Type: Solid or Stranded depending on cable size
Insulation Material: XLPE
Outer Sheath Material: LSZH
Cable Profile: Flat
Operating Temperature: -15°C to +90°C
Maximum Short Circuit Temperature: 250°C
Minimum Bending Radius: 8 x cable diameter
Suitable for indoor fixed installations
Suitable for dry and damp conditions
Additional Technical Details
Standards: BS 7211:2012 / BS EN 60228
Certifications: BASEC, CE, ISO 9001, UKCA
Flame Retardancy: BS EN/IEC 60332-1
Halogen Free: IEC/EN 60754-1/2
Smoke Emission Standard: EN 61034

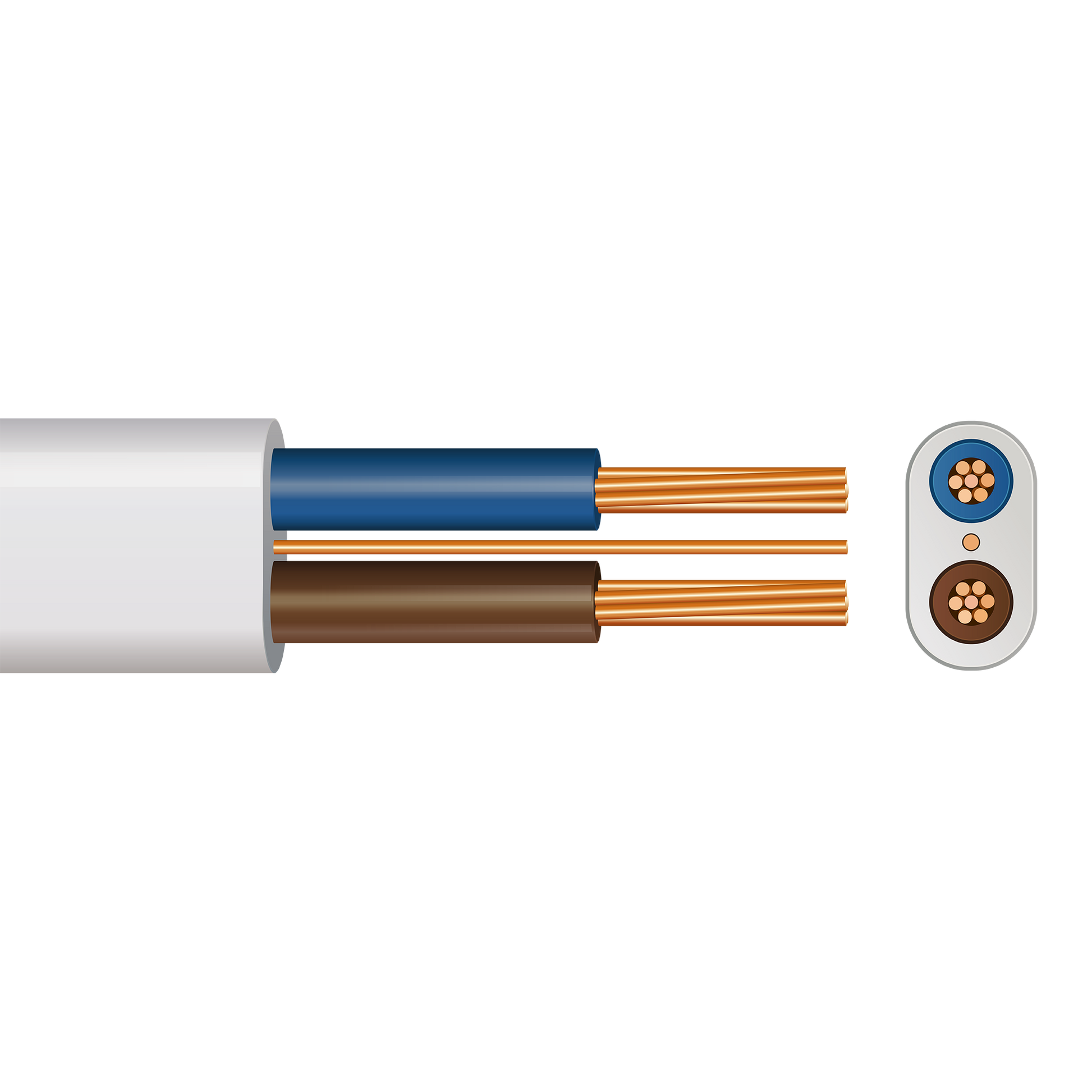

Core Configuration: Twin insulated conductors with earth conductor
Outer sheath colour: White
Inner core colours: Brown and Blue
Available sizes include 1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm² and 16mm²
Supplied in coils and drums depending on cable size and length
Current carrying capacities vary depending on installation method and cable size
What’s in the Box
Pitacs 6242B Twin & Earth LSZH Cable coil or drum
The Pitacs 6242B Twin & Earth LSZH Cable provides a professional grade fixed wiring solution combining dependable electrical performance, enhanced fire safety properties and compliance with UK wiring standards, making it ideal for modern domestic and commercial electrical installations.
