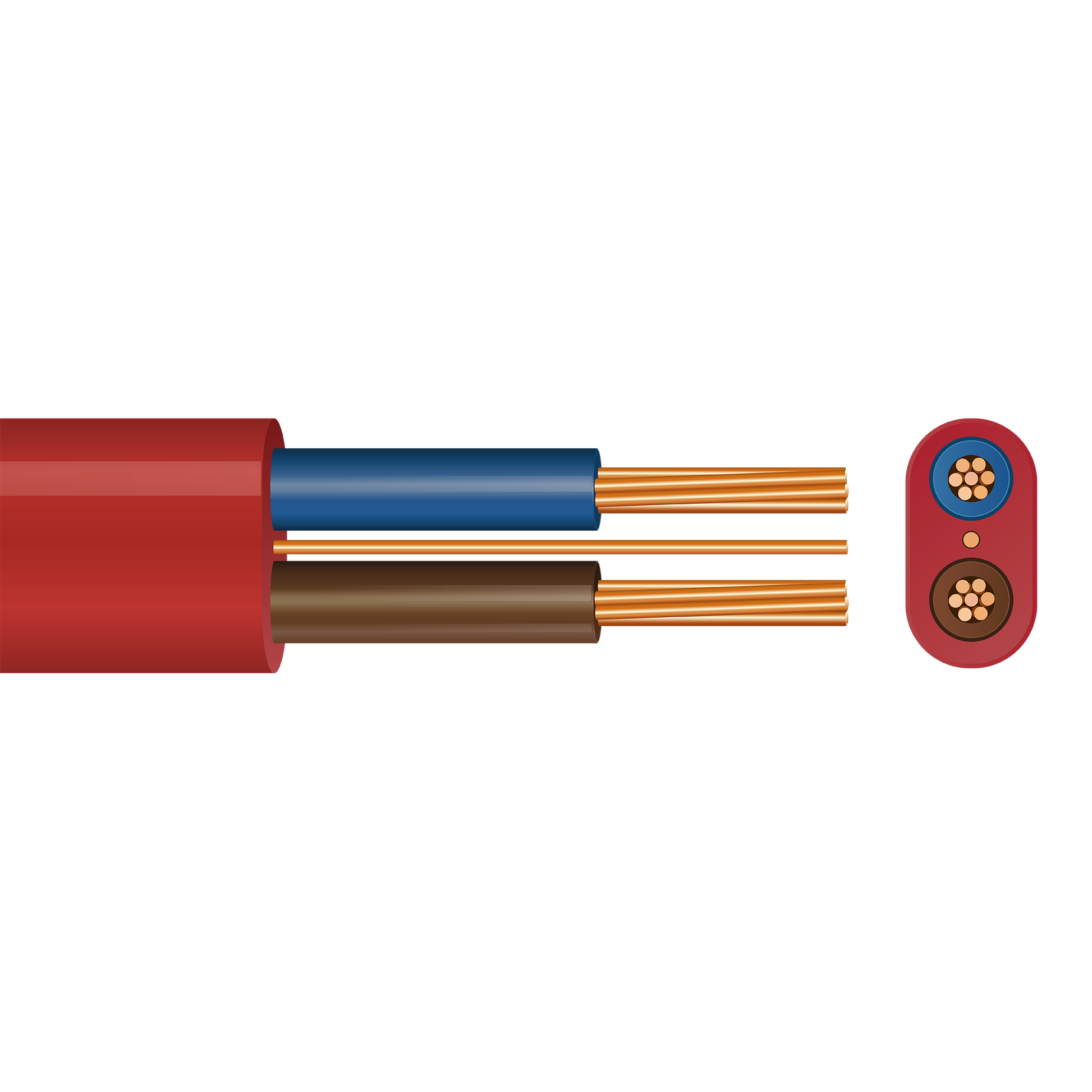

The Pitacs 6242Y Twin & Earth Cable is a high quality domestic wiring cable designed for fixed electrical installations in residential, commercial and light industrial environments. Manufactured with durable PVC insulation and sheathing, this versatile cable is suitable for powering lighting circuits, socket outlets, cookers, showers and other fixed electrical systems where reliable performance and compliance are essential.
Designed for installation in dry or damp conditions, the Pitacs 6242Y cable can be clipped directly to surfaces, installed on cable trays or laid within conduit and trunking where additional mechanical protection is required. Available in a wide range of conductor sizes, including both solid and stranded copper configurations, this trusted Twin & Earth cable offers dependable conductivity and straightforward installation for professional electricians and contractors.
Key Features
Twin & Earth fixed wiring cable
PVC insulated and PVC sheathed construction
Suitable for domestic and commercial wiring installations
Designed for lighting, socket, cooker and shower circuits
Can be installed in dry or damp premises
Suitable for conduit and trunking installations
Flat cable profile for neat installation
Available in both solid and stranded copper conductor options
Rated voltage: 300/500V
Manufactured to BS 6004:2012 standards
BASEC approved
CE and UKCA certified
Suitable for a Wide Range of Electrical Installations
The Pitacs 6242Y Twin & Earth Cable is designed for fixed installation wiring where safe and reliable electrical performance is required. Smaller conductor sizes are ideal for lighting circuits and general power applications, while larger sizes are suitable for higher load installations such as cookers, showers and consumer unit connections.
Its robust PVC insulation and outer sheath provide long lasting durability, while the flat profile allows for easier routing and installation in modern wiring systems. Suitable for clipping direct, free air installation or use within conduit and trunking systems, the 6242Y cable provides flexibility across a wide range of electrical projects.
Technical Information
Voltage Rating: 300/500V
Conductor Material: Copper
Conductor Type: Solid or Stranded depending on cable size
Insulation Material: PVC
Outer Sheath Material: PVC
Cable Profile: Flat
Operating Temperature: -15°C to +70°C
Maximum Short Circuit Temperature: 160°C
Minimum Bending Radius: 8 x cable diameter
Suitable for indoor fixed installations
Suitable for dry and damp conditions
Additional Technical Details
Standards: BS 6004:2012 / BS EN 60228
Certifications: BASEC, CE, ISO 9001, UKCA
Core Configuration: Twin insulated conductors with bare earth conductor
Available sizes include 1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm² and 16mm²
Smaller sizes supplied with solid conductors
Larger sizes supplied with Class 2 stranded conductors
Outer sheath colour: Grey
Inner core colours: Brown and Blue
Current carrying capacities vary depending on installation method and cable size
What’s in the Box
Pitacs 6242Y Twin & Earth Cable coil or drum
The Pitacs 6242Y Twin & Earth Cable provides a professional grade wiring solution for fixed electrical installations, combining durable PVC construction, dependable copper conductivity and compliance with UK wiring standards for reliable everyday performance.
