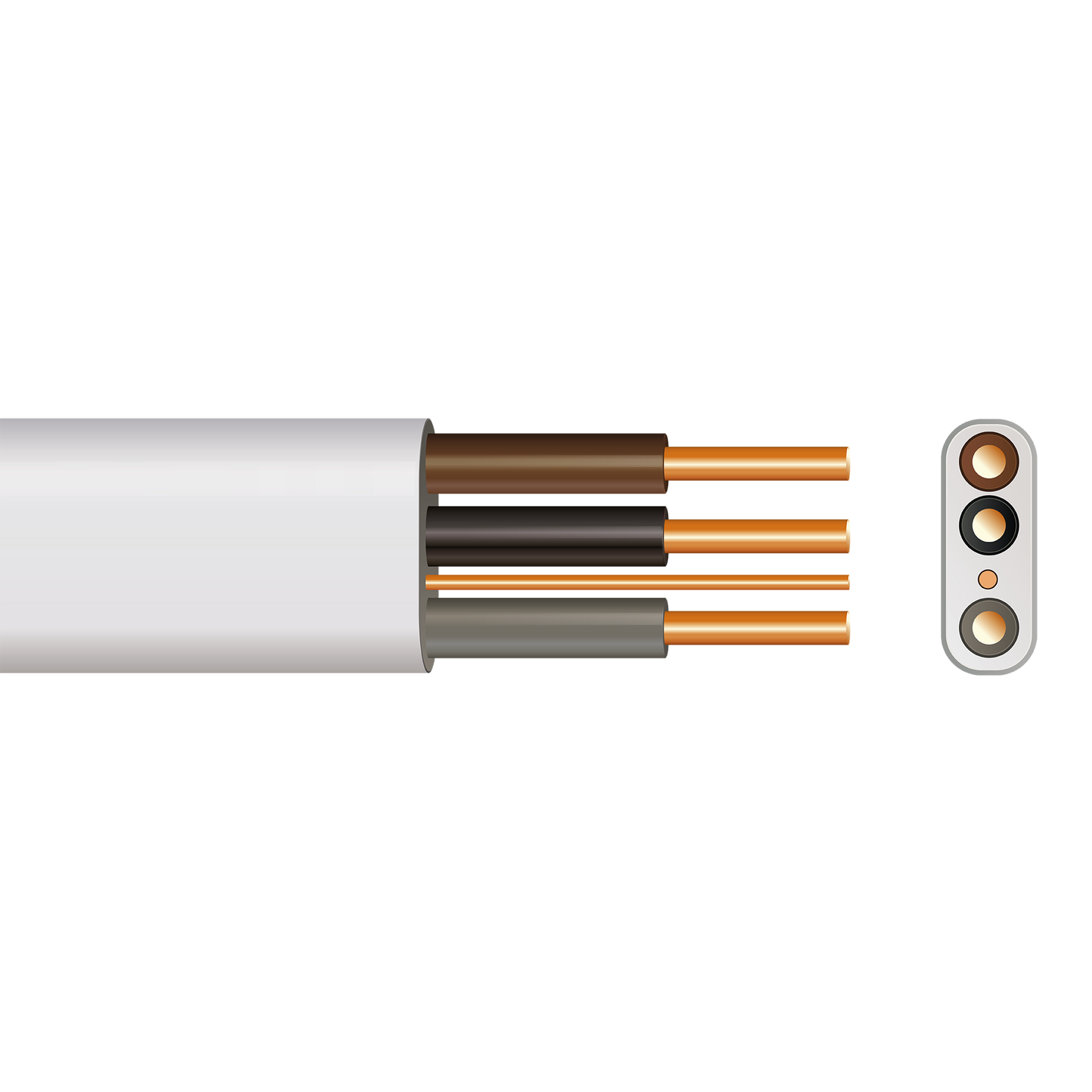

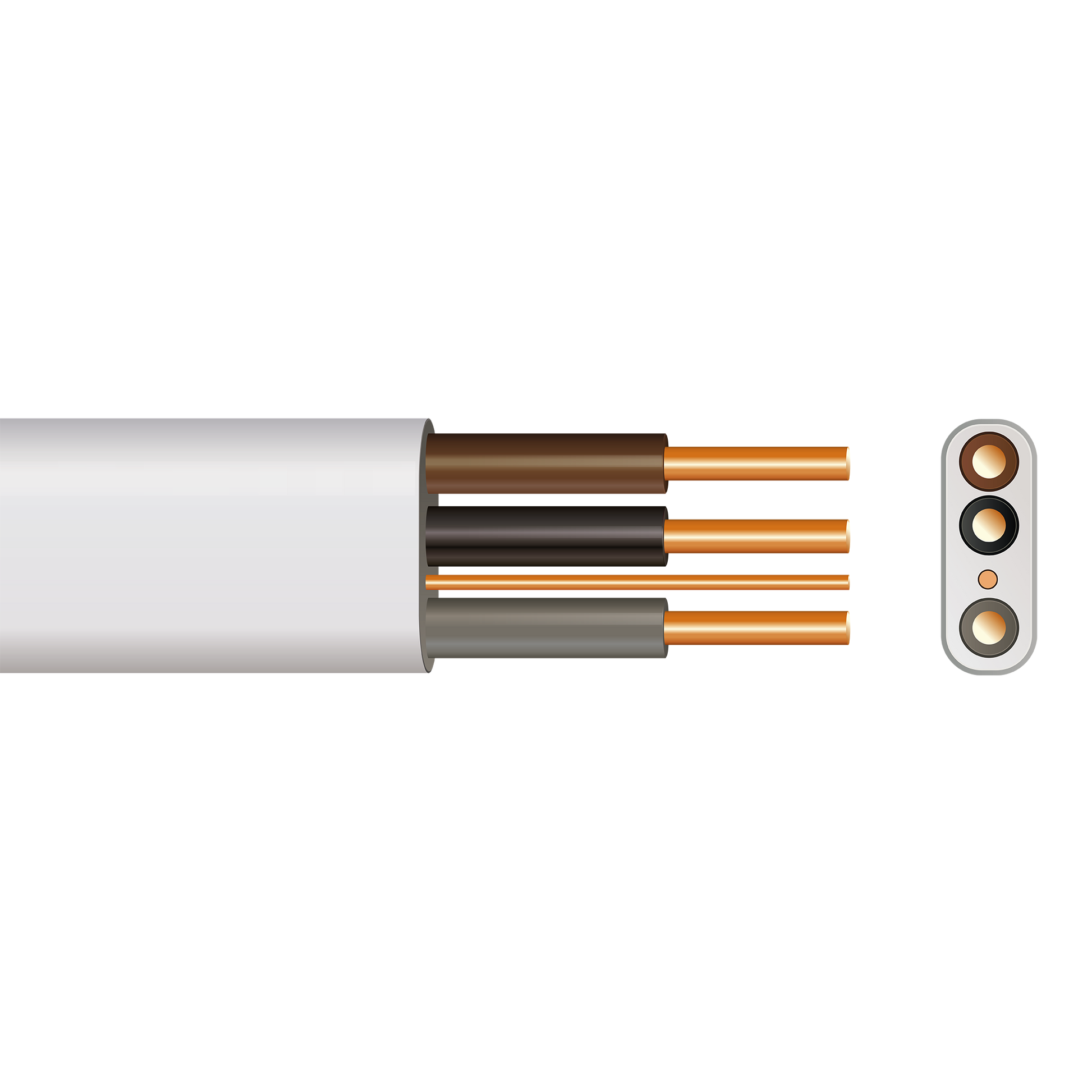

The Pitacs 6243B 3 Core & Earth LSZH Cable is a high performance Low Smoke Zero Halogen fixed wiring cable designed for installations where enhanced fire safety and reduced smoke emissions are essential. Ideal for domestic, commercial and public building applications, this cable is commonly used for two-way lighting circuits, heating controls, extractor fans and other switching applications requiring multiple live conductors.
Manufactured with solid copper conductors, cross-linked polyethylene insulation and an LSZH outer sheath, the Pitacs 6243B cable combines dependable electrical performance with superior fire safety characteristics. In the event of a fire, the LSZH construction helps minimise smoke density and corrosive gas emissions, making it particularly suitable for use in apartment blocks, schools, hospitals, offices and public buildings where occupant safety is a priority. Manufactured to BS 7211:2012 standards and BASEC approved, this cable provides a reliable and compliant solution for modern fixed wiring installations.
Key Features
3 Core & Earth Low Smoke Zero Halogen cable
LSZH construction for enhanced fire safety
Suitable for two-way lighting and switching applications
Designed for heating controls and extractor fan wiring
Solid copper conductors for dependable conductivity
Cross-linked polyethylene insulation
Reduced smoke and corrosive gas emissions during fire conditions
Flat cable profile for neat installation
Suitable for dry and damp environments
Can be installed in conduit and trunking systems
Rated voltage: 300/500V
Manufactured to BS 7211:2012 standards
BASEC approved
CE and UKCA certified
Designed for Multi-Switch and Control Wiring
The Pitacs 6243B 3 Core & Earth LSZH Cable is specifically designed for fixed wiring applications where multiple switched live conductors are required. The three insulated conductors, combined with an earth conductor, make it ideal for two-way lighting circuits, central heating controls and other advanced switching installations.
Its LSZH construction helps improve safety in the event of a fire by reducing smoke and harmful gas emissions, while the durable XLPE insulation supports higher operating temperatures than standard PVC alternatives. Suitable for clipping direct, installation within conduit and trunking systems or embedding within suitable building structures, the 6243B cable delivers dependable long term performance for professional electrical projects.
Technical Information
Voltage Rating: 300/500V
Conductor Material: Copper
Conductor Type: Solid Copper
Conductor Class: Class 1
Insulation Material: XLPE
Outer Sheath Material: LSZH
Cable Profile: Flat
Operating Temperature: -15°C to +90°C
Maximum Short Circuit Temperature: 250°C
Minimum Bending Radius: 8 x cable diameter
Suitable for indoor fixed installations
Suitable for dry and damp conditions
Additional Technical Details
Standards: BS 7211:2012 / BS EN 60228
Certifications: BASEC, CE, ISO 9001, UKCA
Flame Retardancy: BS EN/IEC 60332-1
Halogen Free: IEC/EN 60754-1/2
Smoke Emission Standard: EN 61034
Core Configuration: 3 insulated conductors with earth conductor
Outer sheath colour: White
Inner core colours: Brown, Black and Grey
Available sizes include 1.0mm², 1.5mm² and 2.0mm²
Supplied in coils and drums depending on cable size and length
Current carrying capacities vary depending on installation method and cable size
The Pitacs 6243B 3 Core & Earth LSZH Cable provides a professional grade fixed wiring solution combining dependable electrical performance, enhanced fire safety properties and compliance with UK wiring standards, making it ideal for modern domestic and commercial switching and control installations.
