The Pitacs 6243Y 3 Core & Earth Cable is a high quality domestic wiring cable designed for fixed electrical installations where multiple switched live conductors are required. Commonly used for two-way lighting circuits, heating controls, extractor fans and other switching applications, this durable cable provides reliable performance for residential, commercial and light industrial projects.
Manufactured with solid copper conductors and durable PVC insulation and sheathing, the Pitacs 6243Y cable is suitable for installation in dry or damp environments where mechanical damage is not likely to occur. Its flat cable profile allows for neat and practical installation, while compliance with BS 6004:2012 standards ensures dependable performance and safety for professional electrical installations.
Key Features
3 Core & Earth fixed wiring cable
PVC insulated and PVC sheathed construction
Solid copper conductors for dependable conductivity
Ideal for two-way lighting circuits and switching applications
Suitable for heating controls and extractor fan wiring
Flat cable profile for tidy installation
Can be installed in dry or damp premises
Suitable for conduit and trunking installations
Rated voltage: 300/500V
Manufactured to BS 6004:2012 standards
BASEC approved
CE and UKCA certified
Designed for Multi-Switch Wiring Applications
The Pitacs 6243Y 3 Core & Earth Cable is specifically designed for installations requiring multiple live conductors, making it ideal for two-way lighting systems and control wiring applications. The three insulated conductors, combined with an earth conductor, allow safe and organised wiring for more advanced switching arrangements.
Its durable PVC insulation and sheath provide long lasting protection in fixed installations, while the solid copper conductors deliver reliable electrical performance. Suitable for clipping direct to surfaces, installation on trays or use within conduit and trunking systems, the 6243Y cable offers flexibility across a wide range of domestic and commercial electrical projects.
Technical Information
Voltage Rating: 300/500V
Conductor Material: Copper
Conductor Type: Solid Copper
Conductor Class: Class 1
Insulation Material: PVC
Outer Sheath Material: PVC
Cable Profile: Flat
Operating Temperature: -15°C to +70°C
Maximum Short Circuit Temperature: 160°C
Minimum Bending Radius: 8 x cable diameter
Suitable for indoor fixed installations
Suitable for dry and damp conditions
Additional Technical Details
Standards: BS 6004:2012 / BS EN 60228
Certifications: BASEC, CE, ISO 9001, UKCA

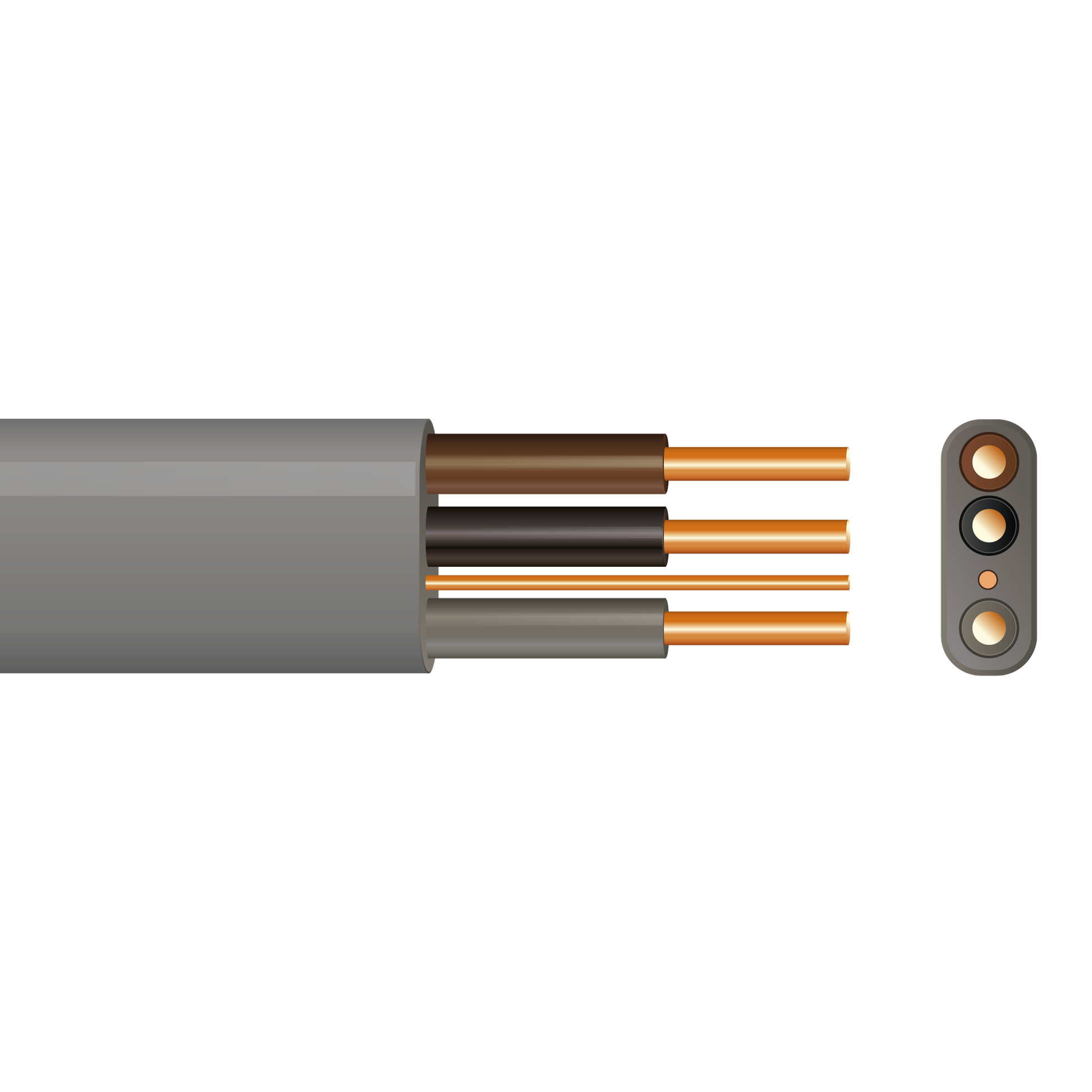

Core Configuration: 3 insulated conductors plus earth conductor
Outer sheath colour: Grey
Inner core colours: Brown, Black and Grey
Available sizes include 1.0mm² and 1.5mm²
Available in 5m, 10m, 50m and 100m lengths depending on cable size
Suitable for clipped direct, tray, conduit and trunking installations
Current carrying capacities vary depending on installation method and cable size
What’s in the Box
Pitacs 6243Y 3 Core & Earth Cable coil or drum
The Pitacs 6243Y 3 Core & Earth Cable offers a professional and compliant solution for fixed electrical wiring installations, combining durable PVC construction, reliable copper conductivity and trusted UK standard compliance for two-way lighting and switching applications.
