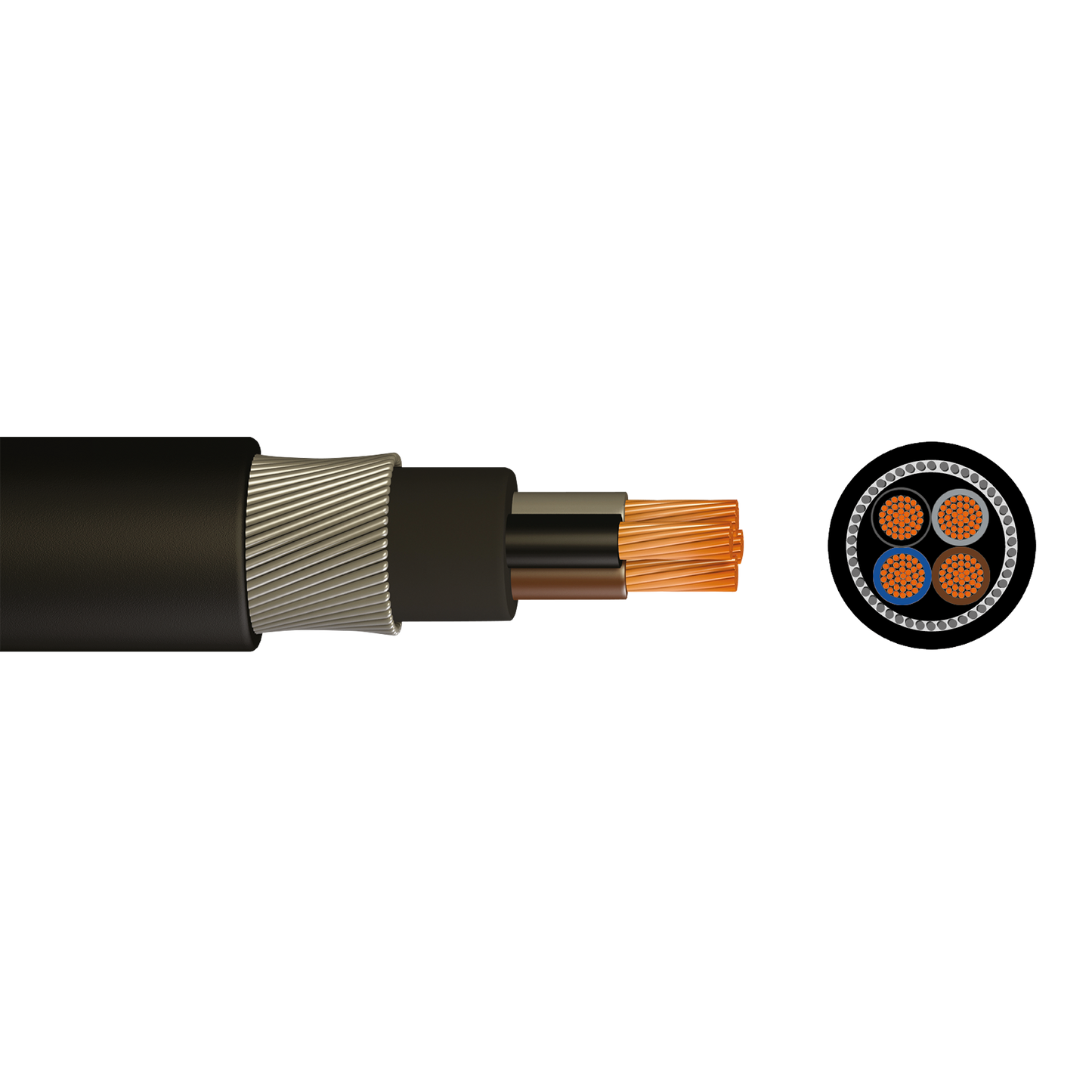

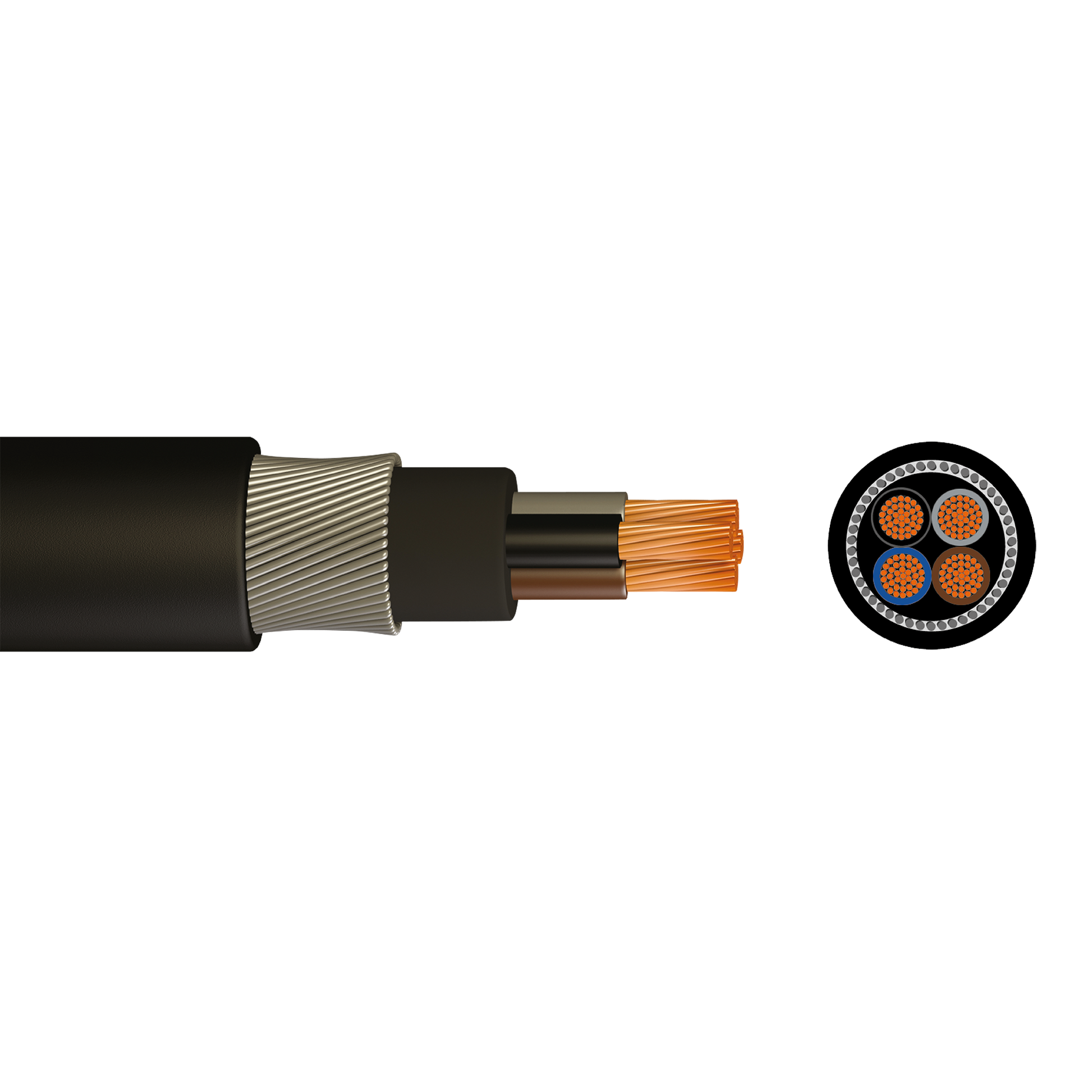

The Pitacs 6944X 4 Core Steel Wire Armoured Cable is a heavy-duty power distribution cable designed for fixed installation in commercial, industrial and residential applications. Ideal for mains power distribution, sub-main circuits, external installations and underground power supplies, this robust armoured cable provides exceptional mechanical protection and long-term reliability in demanding environments. Its galvanised steel wire armour offers enhanced resistance to impact, crushing and accidental damage, making it the preferred choice for installations where cable protection is essential.
Manufactured with copper conductors, XLPE insulation and a durable black PVC outer sheath, the Pitacs 6944X delivers excellent electrical performance whilst maintaining strength and durability in challenging conditions. The 4 core configuration makes it particularly suitable for three-phase installations requiring a neutral conductor, including power distribution networks, commercial premises, workshops and industrial facilities.
Key Features
4 core steel wire armoured power cable
Copper conductors for reliable conductivity
XLPE insulated for improved thermal performance
Galvanised steel wire armour for mechanical protection
Durable black PVC outer sheath
Suitable for three-phase and neutral applications
Designed for fixed installation projects
Ideal for indoor, outdoor and underground use
Suitable for direct burial installations
Voltage rating: 600/1000V
Maximum conductor operating temperature of 90°C
Manufactured to BS 5467 standards
Reliable Power Distribution Performance
The Pitacs 6944X 4 Core Steel Wire Armoured Cable is engineered to provide dependable power transmission in demanding electrical installations. The steel wire armour protects the cable against physical damage, making it suitable for exposed outdoor locations, cable trays, ducts and underground installations where additional protection is required.
The XLPE insulation offers superior thermal characteristics compared to conventional PVC insulated cables, allowing for increased current carrying capacity and improved long-term performance. This combination of electrical efficiency and mechanical strength makes the cable suitable for a wide range of power distribution applications.
Suitable for power distribution and sub-main circuits
Designed for commercial, industrial and domestic installations
Can be installed clipped direct, on cable tray, in ducts or buried underground
Excellent resistance to mechanical damage
Available in a range of conductor sizes
Supplied in cut lengths, coils and drums depending on cable size
Suitable for three-phase systems with neutral conductor
Current carrying capacity varies according to conductor size and installation method
Long service life in demanding environments
What’s in the Box
Pitacs 6944X 4 Core Steel Wire Armoured Cable (cut length, coil or drum depending on selection)
Summary
The Pitacs 6944X 4 Core Steel Wire Armoured Cable offers a robust and dependable solution for three-phase power distribution installations. Featuring copper conductors, XLPE insulation, galvanised steel wire armour and a durable PVC outer sheath, it delivers outstanding electrical performance and mechanical protection for commercial, industrial and residential applications where reliability is essential.
