Pitacs Meter Tail Pack 25mm² x 1m: 6181Y Double Insulated (Grey with Brown) and (Grey with Blue) plus 6491X Single Core (Green/Yellow)

Pitacs Meter Tail Pack 25mm² x 1m – 6181Y Double Insulated and 6491X Single Core Earth Cable

The Pitacs Meter Tail Pack 25mm² x 1m is a convenient and professional wiring solution designed for electrical meter and consumer unit installations where shorter cable runs are required. Supplied with 1 metre lengths of Pitacs 6181Y Double Insulated Cable in Grey with Brown and Grey with Blue, together with a 6491X Green/Yellow Single Core Earth Cable, this pack is ideal for domestic and light commercial fixed wiring applications requiring reliable and compliant meter tail connections.

Manufactured using high quality stranded copper conductors with durable PVC insulation and sheathing, the Pitacs Meter Tail Pack delivers dependable electrical performance and straightforward installation. The included double insulated tails are suitable for connecting electricity meters to consumer units and distribution boards, while the green/yellow earth cable provides a reliable protective earthing connection. Manufactured to recognised UK standards and BASEC approved, this pack provides a trusted solution for modern electrical installations.

Key Features

• Complete 25mm² meter tail pack
• Includes Brown and Blue double insulated meter tails
• Supplied with Green/Yellow earth cable
• 1 metre cable lengths for compact installations
• Suitable for domestic and light commercial applications
• Stranded copper conductors for flexibility and easy handling
• Durable PVC insulation and sheathing
• Ideal for consumer unit and meter connections
• Suitable for fixed wiring installations
• Manufactured to relevant UK standards
• BASEC approved
• CE and UKCA certified

Ideal for Short Distance Meter Connections

The Pitacs Meter Tail Pack is designed to provide installers with all the essential cables required for short distance meter tail and earthing installations in one practical package. The 25mm² 6181Y double insulated tails offer reliable insulation and dependable conductivity for higher load applications, while the stranded copper construction allows for easier routing and installation within confined spaces.

The included 6491X Green/Yellow single core earth cable delivers a durable and compliant earthing solution suitable for modern consumer unit installations. Ideal for compact installations, consumer unit upgrades and replacement projects, this complete pack helps simplify installation while maintaining professional wiring standards.

Technical Information

• Cable Size: 25mm²
• Tail Length: 1m each
• Voltage Rating: 300/500V
• Conductor Material: Copper
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Outer Sheath Material: PVC
• Operating Temperature: -15°C to +70°C
• Maximum Short Circuit Temperature: 160°C
• Suitable for indoor fixed installations
• Suitable for dry indoor environments

Additional Technical Details

• Included Cables:

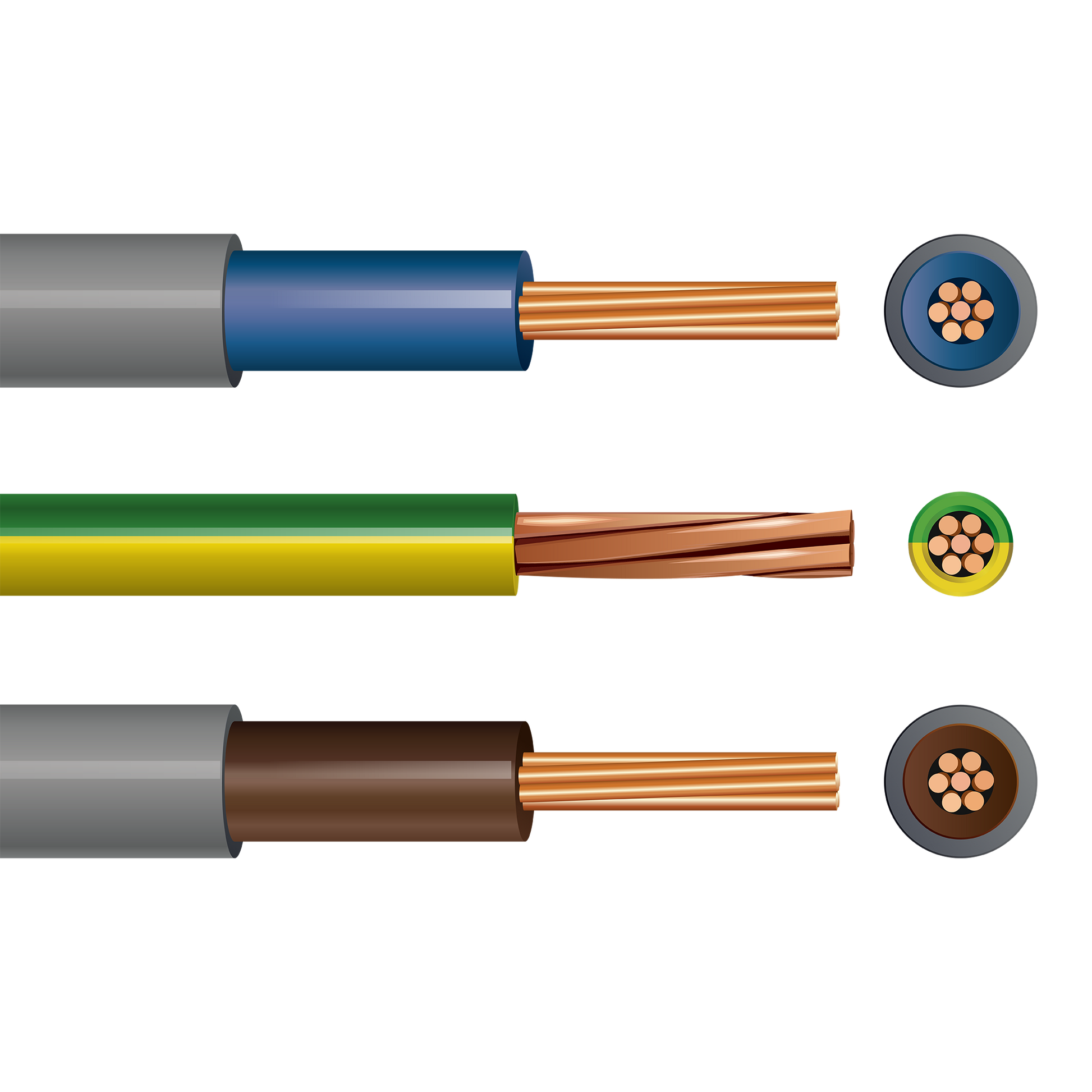

  • 1 x 1m 25mm² Pitacs 6181Y Double Insulated Cable – Grey with Brown
  • 1 x 1m 25mm² Pitacs 6181Y Double Insulated Cable – Grey with Blue
  • 1 x 1m 25mm² Pitacs 6491X Single Core Cable – Green/Yellow
• Standards: BS 6004 / BS EN 50525
• Certifications: BASEC, CE, ISO 9001, UKCA
• Application: Meter tails and earthing connections
• Suitable for consumer units and distribution boards
• Current carrying capacities vary depending on installation method

What’s in the Box

• 1 x 1m 25mm² Pitacs 6181Y Double Insulated Cable – Grey with Brown
• 1 x 1m 25mm² Pitacs 6181Y Double Insulated Cable – Grey with Blue
• 1 x 1m 25mm² Pitacs 6491X Single Core Cable – Green/Yellow

The Pitacs Meter Tail Pack 25mm² x 1m provides a dependable and professional wiring solution for compact electrical installations, combining durable insulation, flexible stranded copper conductors and trusted UK standard compliance for reliable consumer unit and meter connections.
