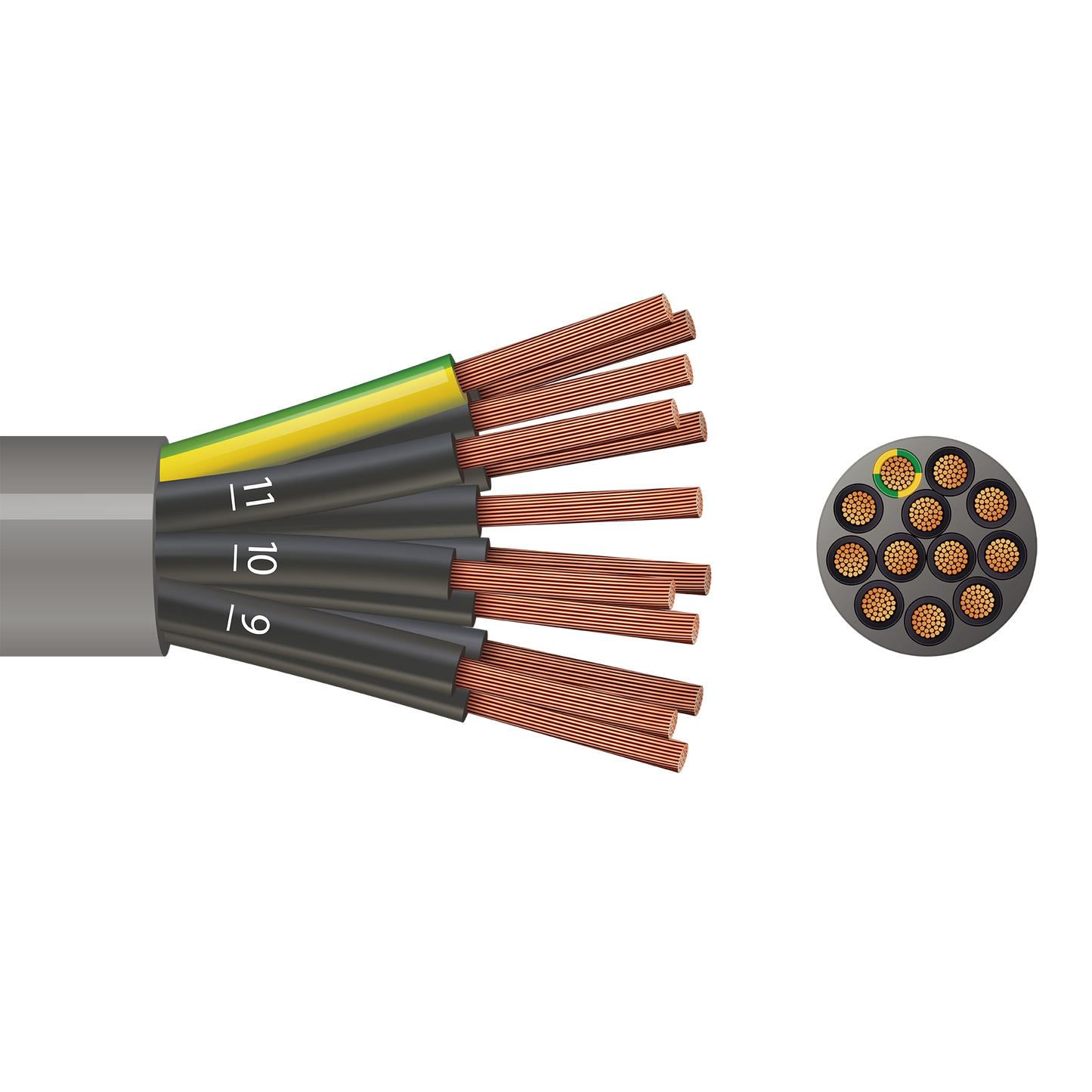

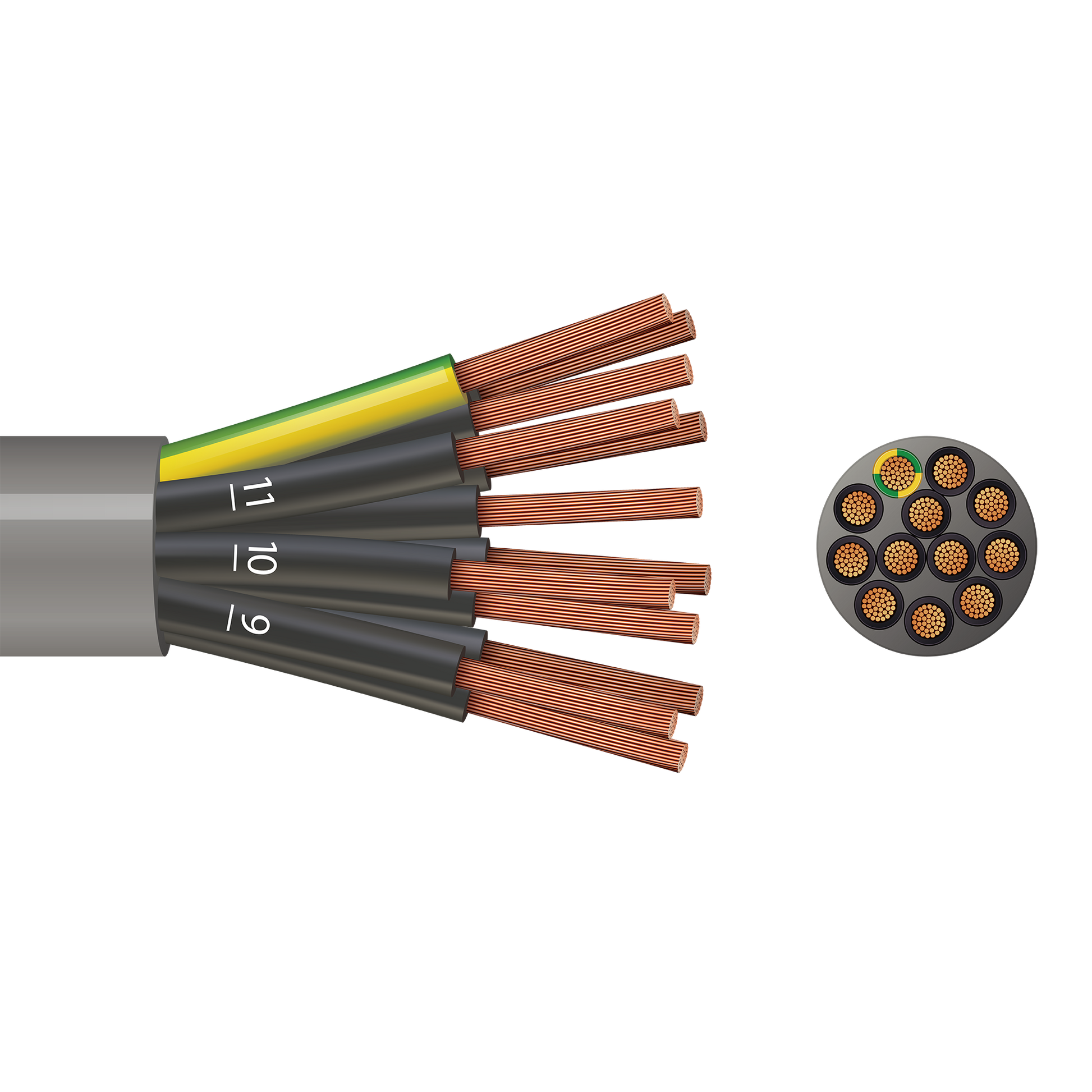

The Pitacs P12YY 12 Core YY Control Flex Cable is a high core count flexible control and instrumentation cable designed for complex measuring, monitoring and control applications in industrial, commercial and building services environments. Suitable for use in control panels, automation systems, manufacturing equipment, HVAC installations, process control networks and power stations, this cable is designed for situations where multiple control or signal circuits are required within a single, compact cable. It is intended for indoor use in dry or lightly damp environments where screening or mechanical armouring is not required.
Manufactured using fine stranded Class 5 copper conductors with PVC insulation and a durable grey PVC outer sheath, the P12YY cable provides excellent flexibility despite its high core count. This makes it suitable for installation in confined spaces such as control cabinets, machinery panels and complex wiring systems. The 12 core configuration significantly reduces the need for multiple smaller cables, simplifying installation and improving overall system organisation.
Manufactured to BS EN 50525-2-11 standards, the Pitacs P12YY is part of the YY control cable range designed for general-purpose control and instrumentation circuits where reliable electrical performance and high core density are required in a flexible construction.
Key Features
12 core YY control flex cable
Fine stranded Class 5 copper conductors
PVC insulation and PVC outer sheath
Designed for complex control and instrumentation systems
Suitable for industrial automation and manufacturing equipment
Ideal for HVAC, building services and process control systems
High core count reduces cable clutter in installations
Flexible construction for routing in confined control panels
Number-coded cores with green/yellow earth conductor
Rated voltage: 300/500V
Flame retardant to IEC 60332-1
Manufactured to BS EN 50525-2-11 standards
Designed for High-Density Control Applications
The Pitacs P12YY 12 Core YY Control Flex Cable is intended for installations requiring a large number of control or signal circuits within a single cable assembly. It is commonly used in industrial control systems, automation panels and machinery where multiple signals need to be routed efficiently and reliably. The unshielded YY construction makes it suitable for internal installations where electromagnetic interference is not a primary concern.
The fine stranded copper conductors provide good flexibility and electrical performance, allowing the cable to be installed in complex routing paths within control cabinets and equipment enclosures. The 12 core design helps streamline wiring layouts, reducing installation time and improving system clarity compared to multiple smaller cables.
Suitable for indoor dry and lightly damp environments
Designed for control and instrumentation applications
Additional Technical Details
UK designation: P12YY
Standards: BS EN 50525-2-11
Core identification: numbered cores plus green/yellow earth
Sheath colour: grey
Suitable for control panels and internal wiring systems
Ideal for manufacturing, engineering and building services installations
Available in multiple conductor size commonly 0.75mm²
Supplied in coils or drum lengths depending on specification
Current carrying capacity varies depending on conductor size and installation method
Designed for high core density control applications
What’s in the Box
Pitacs P12YY 12 Core YY Control Flex Cable (coil or drum)
Summary
The Pitacs P12YY 12 Core YY Control Flex Cable provides a high-capacity and flexible solution for complex control and instrumentation wiring. With its fine stranded copper conductors, PVC construction and efficient multi-core design, it is ideal for industrial control panels, automation systems and building services installations where a large number of circuits must be managed within a single, reliable cable.
