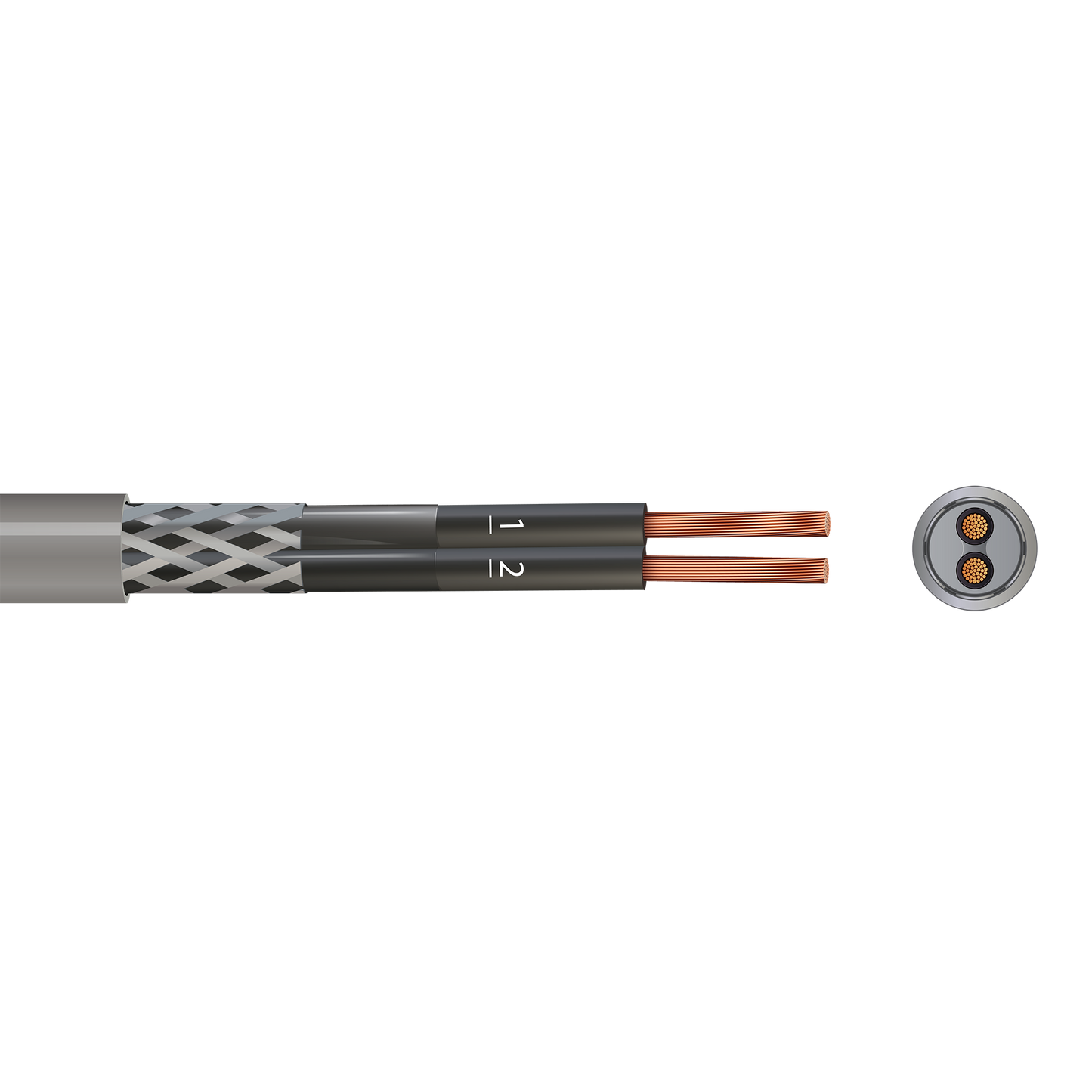

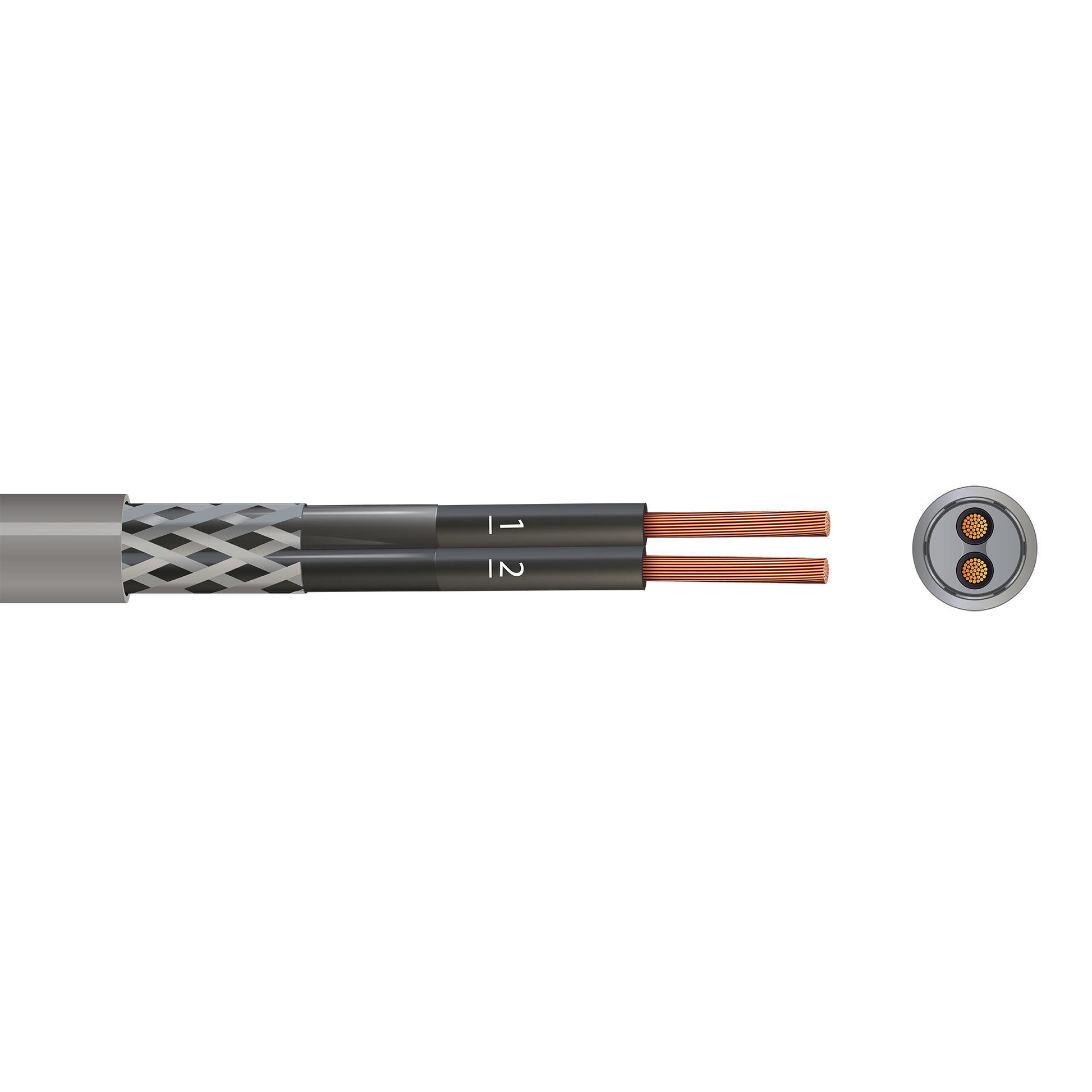

The Pitacs P2CY 2 Core CY Control Flex Cable is a high quality screened control cable designed for measuring, monitoring and control applications within industrial, commercial and engineering environments. Ideal for machinery, manufacturing equipment, power stations, HVAC systems and automated control installations, this flexible cable provides reliable signal and data transmission whilst offering protection against electrical interference. Its copper screened construction makes it particularly suitable for applications where signal integrity and operational reliability are essential.
Manufactured with fine stranded Class 5 copper conductors, PVC insulation and a durable grey PVC outer sheath, the Pitacs P2CY cable combines excellent flexibility with robust performance. The tinned copper wire braid screen helps minimise electromagnetic interference, ensuring accurate signal transmission in sensitive control and monitoring systems. Manufactured to BS EN 50525-2-11 standards and carrying CE, ISO 9001 and UKCA certifications, this cable provides a trusted solution for professional control system installations.
Key Features
2 core screened CY control cable
Fine stranded Class 5 copper conductors
Tinned copper wire braid screen for interference protection
Designed for measuring, monitoring and control applications
Suitable for machinery and industrial automation systems
Ideal for HVAC, engineering and power station installations
Flexible construction for easier installation
Number coded black cores for simplified identification
Grey PVC outer sheath
Rated voltage: 300/500V
Flame retardant to IEC 60332-1
Manufactured to BS EN 50525-2-11 standards
CE, ISO 9001 and UKCA certified
Reliable Signal Transmission with Screened Protection
The Pitacs P2CY 2 Core CY Control Flex Cable is specifically designed for applications where accurate control signals and protection from electrical interference are required. The tinned copper wire braid screen provides effective shielding against electromagnetic interference, helping maintain signal quality in environments containing motors, switching equipment and electrical machinery.
Its fine stranded copper conductors offer excellent flexibility, making installation easier within control panels, machinery and equipment cabinets. The screened construction makes the cable particularly suitable for instrumentation, control circuits and monitoring systems where dependable data and signal transmission is essential.
Technical Information
Voltage Rating: 300/500V
Conductor Material: Copper
Conductor Type: Fine Stranded Copper
Conductor Class: Class 5
Cable Type: CY Screened Control Cable
Insulation Material: PVC
Outer Sheath Material: PVC
Braiding Material: Tinned Copper Wire
Screen Material: Copper
Operating Temperature: -15°C to +60°C
Maximum Short Circuit Temperature: 150°C
AC Test Voltage: 2kV
Minimum Bending Radius: 4 x D to 5 x D depending on cable size
Suitable for dry and damp indoor environments
Additional Technical Details
UK Code: P2CY
Harmonised Code: CY
Standards: BS EN 50525-2-11
Flame Retardant: IEC 60332-1
Core Configuration: 2 Core
Core Identification: Numbered Black Cores
Outer Sheath Colour: Grey
Certifications: CE, ISO 9001, UKCA
Available conductor sizes: 0.5mm², 0.75mm², 1.0mm² and 1.5mm²
Suitable for measuring, monitoring and control systems
Available in cut lengths and drum lengths depending on cable size
Current carrying capacity varies depending on conductor size and installation method
What’s in the Box
Pitacs P2CY 2 Core CY Control Flex Cable (cut length, coil or drum depending on selection)
Summary
The Pitacs P2CY 2 Core CY Control Flex Cable provides a dependable solution for control, monitoring and instrumentation applications. Combining fine stranded copper conductors, a tinned copper braid screen and durable PVC construction, it delivers reliable signal transmission and protection against electrical interference for industrial, commercial and engineering installations.
