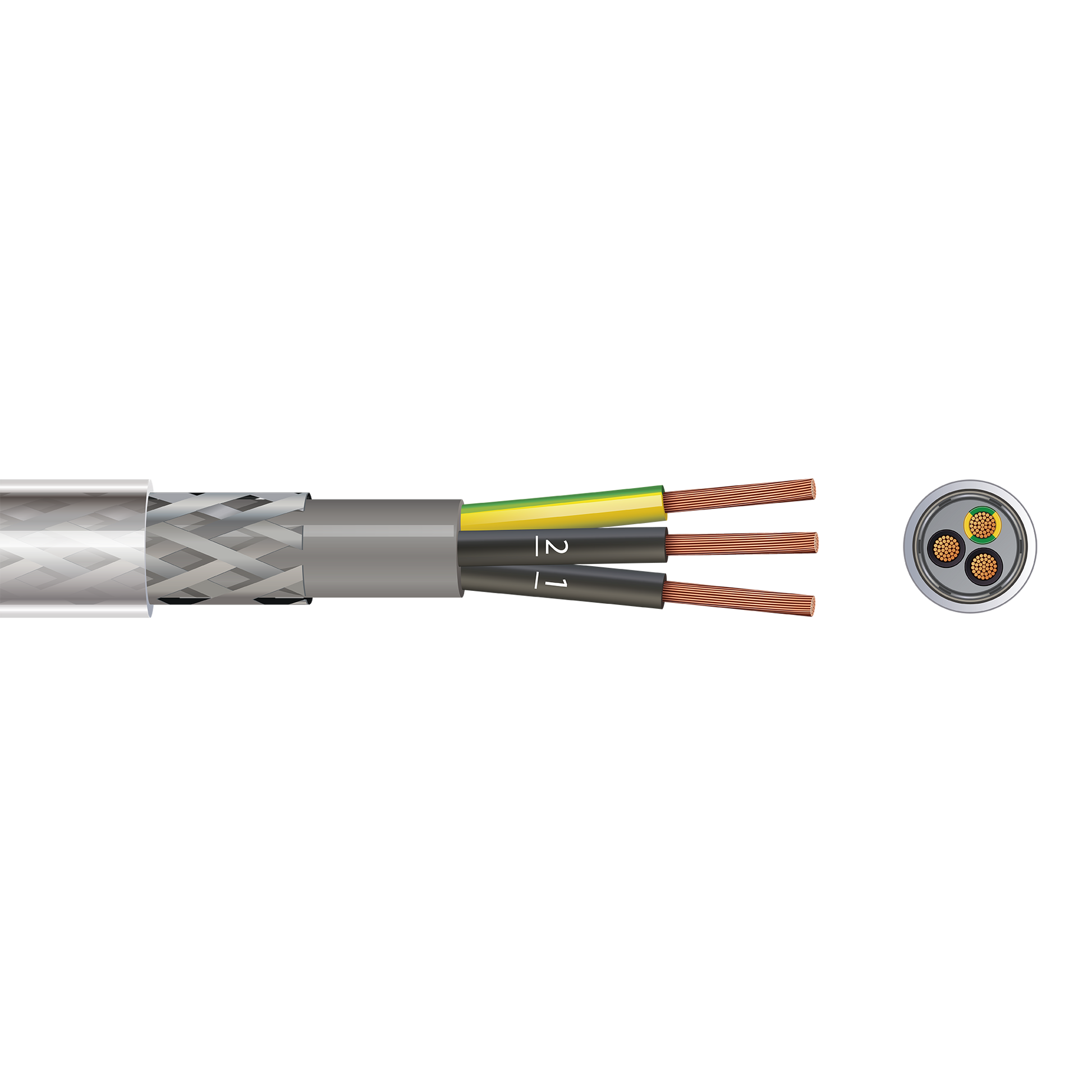

The Pitacs P3SY 3 Core SY Control Flex Cable is a screened control cable designed for measuring, monitoring and control applications in industrial, commercial and engineering environments. Suitable for machinery, manufacturing systems, HVAC installations, power stations and automated control equipment, this cable provides reliable signal transmission while offering enhanced mechanical protection, making it ideal for control circuits operating in demanding installation conditions. It is commonly used where both signal integrity and physical durability are required within a flexible control wiring system.
Manufactured with fine stranded Class 5 copper conductors and PVC insulation, the P3SY cable is designed for flexibility and ease of installation in control panels and equipment wiring systems. Unlike CY variants which use a copper braid screen, SY cables use a galvanised steel wire braid, providing mechanical protection against crushing, abrasion and general site damage while still allowing flexible installation in confined spaces.
Manufactured to BS EN 50525-2-11 standards, the Pitacs P3SY is intended for indoor use in dry or damp environments and is widely specified in industrial control systems where mechanical robustness is as important as reliable electrical performance.
Key Features
3 core SY screened control flex cable
Fine stranded Class 5 copper conductors
Galvanised steel wire braid for mechanical protection
Designed for measuring, monitoring and control systems
Suitable for industrial machinery and automation circuits
Ideal for HVAC and building control systems
Flexible construction for easier installation in control panels
Grey PVC outer sheath for durability
Number-coded cores with green/yellow earth conductor
Rated voltage: 300/500V
Flame retardant to IEC 60332-1
Manufactured to BS EN 50525-2-11 standards
Mechanical Protection for Industrial Environments
The Pitacs P3SY 3 Core SY Control Flex Cable is designed for environments where cables may be exposed to mechanical stress such as abrasion, light impact or accidental crushing. The galvanised steel wire braid provides a protective layer around the cable, improving durability compared with standard unscreened or lightly protected flexible cables.
The fine stranded copper conductors ensure reliable electrical performance and flexibility, making the cable suitable for installation in machinery, ducts, trunking and control cabinets. The 3 core configuration supports basic control and monitoring circuits while maintaining a compact and easy to route cable design.
Core identification: numbered cores plus green/yellow earth
Sheath colour: clear or grey depending on variant
Suitable for instrumentation and control systems
Ideal for manufacturing, process control and engineering installations
Available in multiple conductor sizes commonly 1.5mm², 2.5mm² and 4.0mm²
Supplied in coils or drum lengths depending on specification
Current carrying capacity varies depending on conductor size and installation method
Designed for environments requiring mechanical protection
What’s in the Box
Pitacs P3SY 3 Core SY Control Flex Cable (coil or drum)
Summary
The Pitacs P3SY 3 Core SY Control Flex Cable provides a mechanically protected solution for control and instrumentation wiring. With its galvanised steel wire braid, fine stranded copper conductors and flexible PVC construction, it delivers reliable performance in industrial, commercial and building control systems where both electrical integrity and physical durability are required.
