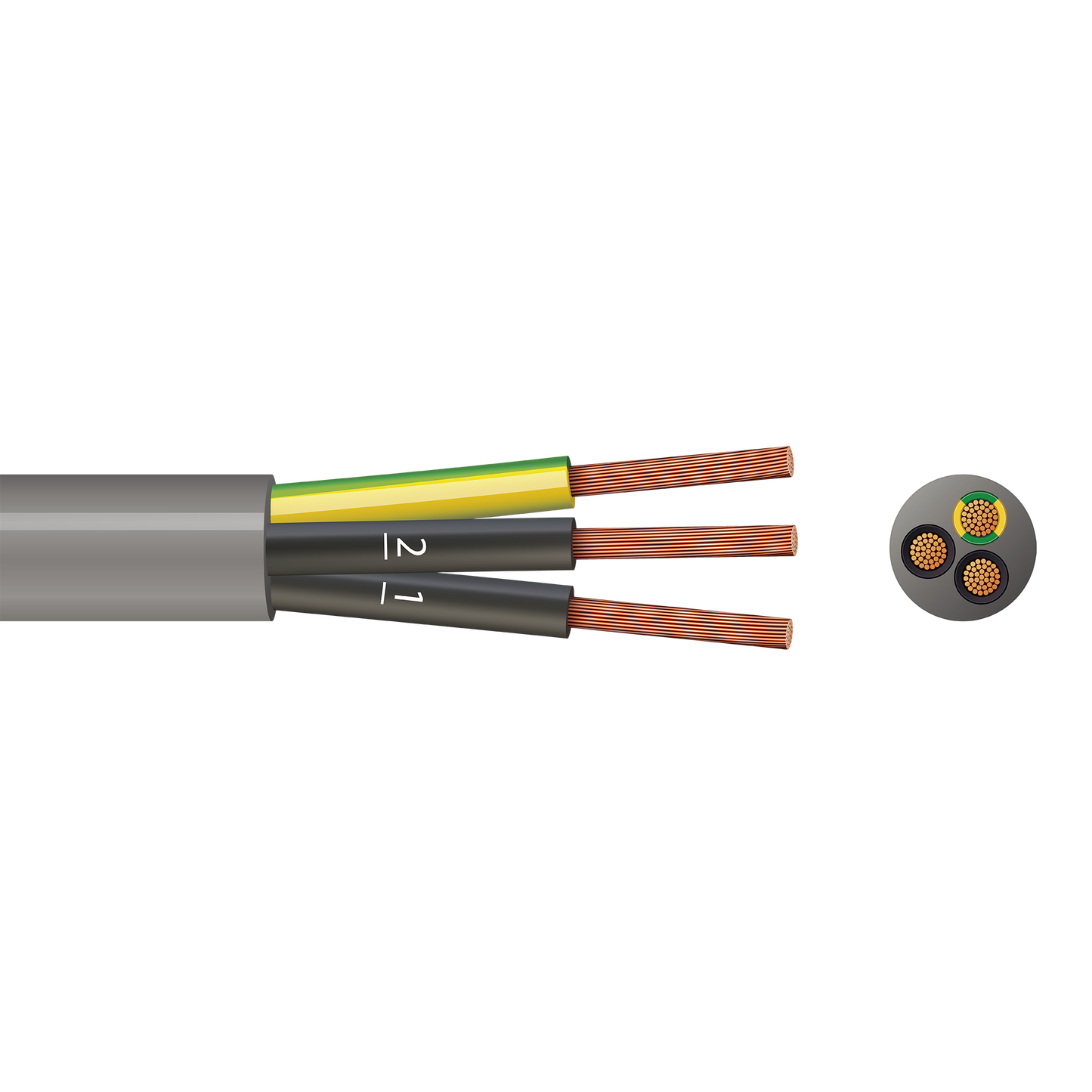

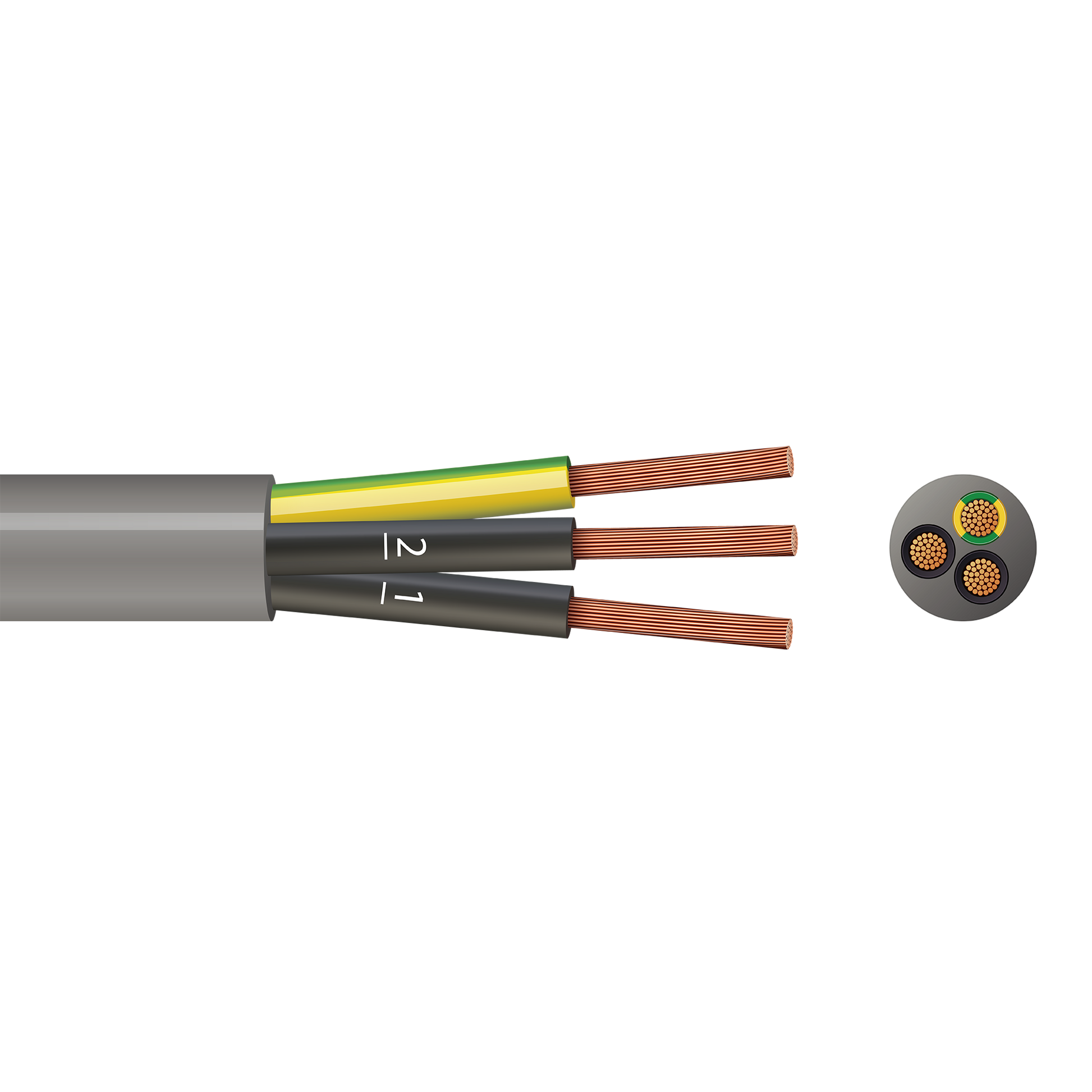

The Pitacs P3YY 3 Core YY Control Flex Cable is a flexible control and instrumentation cable designed for low voltage control applications in industrial, commercial and building services environments. Suitable for control panels, HVAC systems, light automation circuits, instrumentation wiring and internal equipment connections, this cable provides reliable signal transmission in installations where mechanical protection and electromagnetic screening are not required. It is widely used for general-purpose control wiring where flexibility and ease of installation are key requirements.
Manufactured using fine stranded Class 5 copper conductors with PVC insulation and a durable PVC outer sheath, the P3YY cable offers excellent flexibility and straightforward handling during installation. The 3 core construction allows for live, neutral and earth configurations, making it suitable for a wide range of control and monitoring applications. Its compact, flexible design makes it ideal for routing within control panels, ducting and equipment housings.
Manufactured to BS EN 50525-2-11 standards, the Pitacs P3YY is intended for indoor use in dry or lightly damp environments and is commonly specified for standard control and instrumentation circuits where a cost effective and reliable solution is required.
Key Features
3 core YY control flex cable
Fine stranded Class 5 copper conductors
PVC insulation and PVC outer sheath
Designed for control and instrumentation systems
Suitable for HVAC and building services wiring
Ideal for industrial and commercial control circuits
Flexible construction for easy installation
Compact round profile for confined spaces
Number-coded cores with green/yellow earth conductor
Rated voltage: 300/500V
Flame retardant to IEC 60332-1
Manufactured to BS EN 50525-2-11 standards
Reliable Performance for Control Applications
The Pitacs P3YY 3 Core YY Control Flex Cable is designed for applications where simple, dependable control wiring is required. It is commonly used in internal electrical systems where cables are protected within equipment or installed in low-risk environments. The absence of screening or mechanical armouring makes it a lightweight and flexible solution for straightforward control applications.
The fine stranded copper conductors provide good electrical performance and flexibility, allowing the cable to be easily routed through confined spaces such as control panels, trunking and electrical enclosures. The PVC insulation ensures reliable operation in standard indoor environments.
Suitable for indoor dry and lightly damp environments
Designed for control and instrumentation applications
Additional Technical Details
UK designation: P3YY
Standards: BS EN 50525-2-11
Core identification: numbered cores plus green/yellow earth
Sheath colour: grey
Suitable for control panels and internal wiring systems
Ideal for HVAC, building services and automation systems
Available in multiple conductor sizes (commonly 0.75mm², 1.0mm², 1.5mm² and 2.5mm²)
Supplied in coils or drum lengths depending on specification
Current carrying capacity varies depending on conductor size and installation method
Designed for general-purpose control applications
What’s in the Box
Pitacs P3YY 3 Core YY Control Flex Cable (coil or drum)
Summary
The Pitacs P3YY 3 Core YY Control Flex Cable provides a practical and reliable solution for standard control and instrumentation wiring. With its fine stranded copper conductors, PVC construction and flexible design, it is ideal for HVAC systems, control panels and general electrical installations where dependable performance and ease of installation are required.
