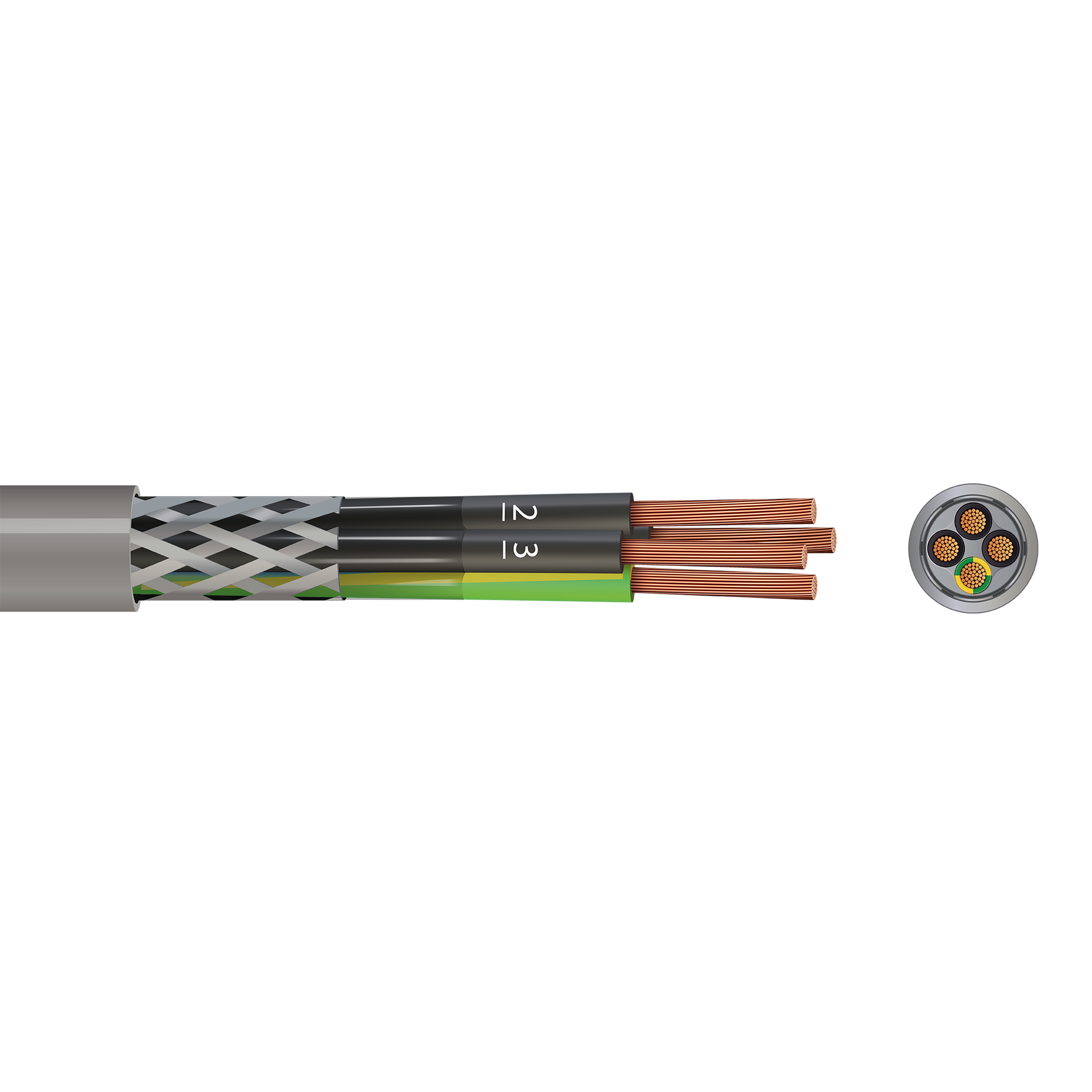

The Pitacs P4CY 4 Core CY Control Flex Cable is a screened flexible control cable designed for measuring, monitoring and control applications within industrial, commercial and engineering environments. Suitable for machinery, manufacturing systems, HVAC installations, power generation facilities and automation equipment, this cable provides reliable signal transmission with effective protection against electrical interference, making it ideal for sensitive control and instrumentation circuits.
Manufactured using fine stranded Class 5 copper conductors with PVC insulation and a durable grey PVC outer sheath, the P4CY cable combines excellent flexibility with robust mechanical performance. The key feature of this cable is its tinned copper wire braid screen, which provides protection against electromagnetic interference (EMI), ensuring stable and accurate signal transmission even in electrically noisy industrial environments.
Manufactured to BS EN 50525-2-11 standards, the Pitacs P4CY is designed for indoor use in dry or damp environments and is widely specified where interference-free control and monitoring performance is required.
Key Features
4 core CY screened control flex cable
Fine stranded Class 5 copper conductors
Tinned copper wire braid screen for EMI protection
Designed for measuring, monitoring and control systems
Suitable for industrial automation and machinery wiring
Ideal for HVAC and building management systems
Flexible construction for easier installation in control panels
Number-coded black cores with green/yellow earth
Grey PVC outer sheath for durability
Rated voltage: 300/500V
Flame retardant to IEC 60332-1
Manufactured to BS EN 50525-2-11 standards
Reliable Signal Integrity in Control Systems
The Pitacs P4CY 4 Core CY Control Flex Cable is engineered for environments where electrical interference can compromise signal quality. The tinned copper braid screen provides effective shielding against EMI generated by motors, switching equipment and industrial machinery, helping maintain stable and accurate data transmission in control and instrumentation circuits.
Its fine stranded copper conductors ensure excellent flexibility, making it suitable for installation in confined spaces such as control cabinets, ducts and machinery enclosures. The 4 core configuration allows for more complex control and monitoring applications compared to lower core variants.
Technical Information
Voltage Rating: 300/500V
Conductor Material: Copper
Conductor Type: Fine stranded copper (Class 5)
Core Configuration: 4 Core
Insulation Material: PVC
Outer Sheath Material: PVC
Screen: Tinned copper wire braid
Operating Temperature: -15°C to +60°C
Short Circuit Temperature: 150°C
Minimum Bending Radius: 4–5 × cable diameter (depending on size)
Suitable for dry and damp indoor environments
Designed for industrial control and instrumentation use
Additional Technical Details
UK designation: P4CY
Standards: BS EN 50525-2-11
Core identification: numbered cores plus green/yellow earth
Sheath colour: grey
Designed for measuring, monitoring and control systems
Suitable for manufacturing and process control installations
Available in multiple conductor sizes 0.5mm², 0.75mm², 1.0mm²
Supplied in cut lengths, coils or drums depending on specification
Current carrying capacity varies depending on conductor size and installation method
Suitable for EMI-sensitive environments
What’s in the Box
Pitacs P4CY 4 Core CY Control Flex Cable (coil or drum)
Summary
The Pitacs P4CY 4 Core CY Control Flex Cable provides a reliable, interference-protected solution for control and instrumentation wiring. With its tinned copper braid screen, fine stranded copper conductors and flexible PVC construction, it delivers consistent performance in industrial, commercial and building control systems where signal integrity is critical.
