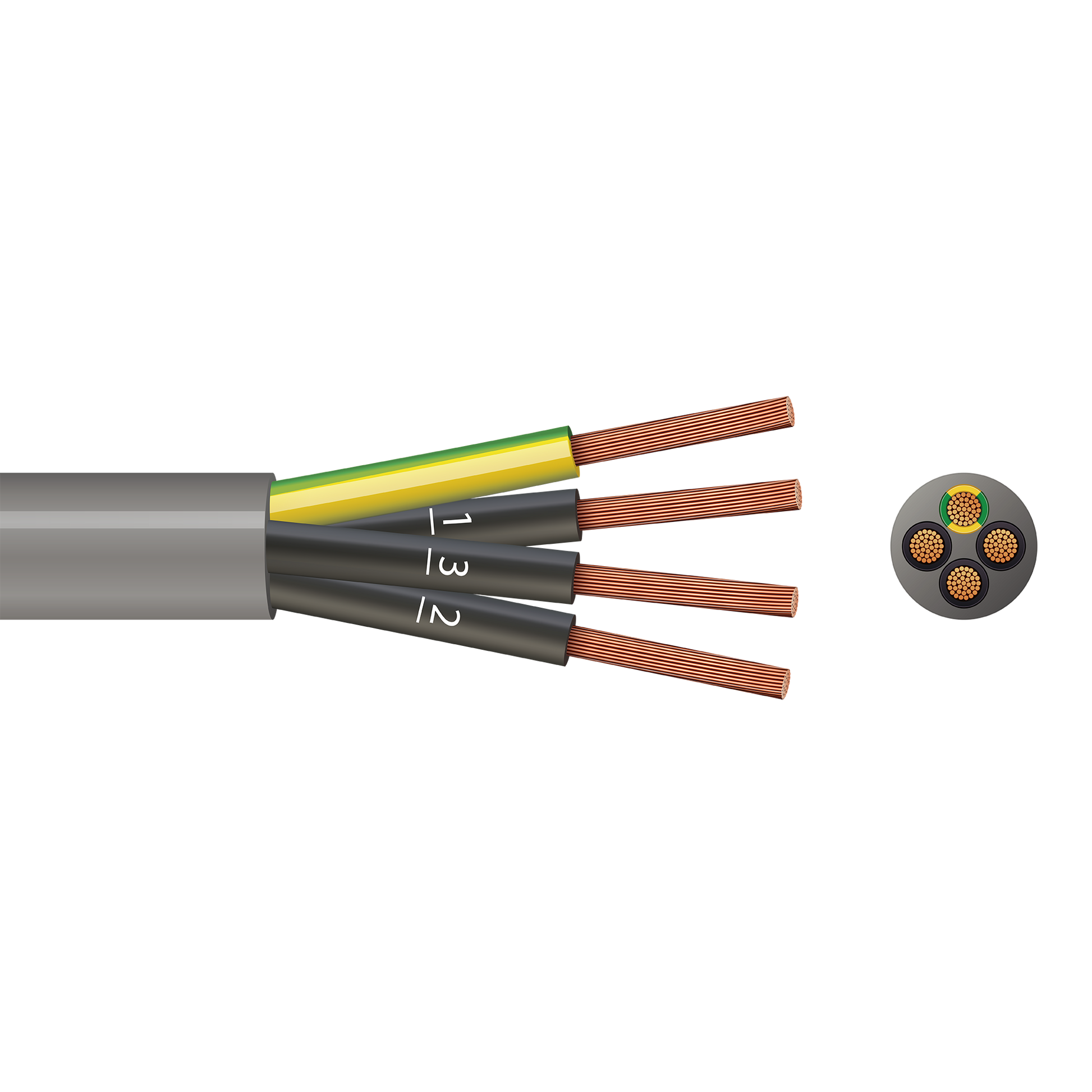

The Pitacs P4YY 4 Core YY Control Flex Cable is a flexible control and instrumentation cable designed for measuring, monitoring and control applications in industrial, commercial and building services environments. Suitable for control panels, HVAC systems, machinery wiring, automation circuits and general low voltage control installations, this cable provides reliable signal transmission in environments where screening or mechanical armouring is not required. It is widely used for internal wiring of electrical equipment and fixed installations in dry or lightly damp conditions.
Manufactured with fine stranded Class 5 copper conductors and PVC insulation, the P4YY cable offers excellent flexibility for easy installation in confined spaces such as control cabinets, equipment enclosures and distribution systems. The PVC outer sheath provides a durable and cost effective protective layer, ensuring dependable performance for general-purpose control wiring applications.
Manufactured to BS EN 50525-2-11 standards, the Pitacs P4YY is part of the YY control cable range designed for measuring and control technology in manufacturing, engineering and building systems where straightforward, non-screened multi-core wiring is required.
Key Features
4 core YY control flex cable
Fine stranded Class 5 copper conductors
PVC insulation and PVC outer sheath
Designed for control and instrumentation applications
Suitable for HVAC and building services wiring
Ideal for industrial and commercial control systems
Flexible construction for easier installation
Compact round profile for confined spaces
Number-coded cores with green/yellow earth conductor
Rated voltage: 300/500V
Flame retardant to IEC 60332-1
Manufactured to BS EN 50525-2-11 standards
Designed for General Control and Instrumentation Systems
The Pitacs P4YY 4 Core YY Control Flex Cable is intended for applications where multiple control or signal circuits are required within a single cable assembly without the need for electromagnetic screening or mechanical protection. It is commonly used in internal wiring systems where the cable is installed within protected environments such as panels, conduits or equipment housings.
The fine stranded copper conductors ensure good electrical performance and flexibility, making the cable easy to route and install in complex wiring systems. The 4 core configuration allows for more advanced control and monitoring applications compared to lower core YY variants, while maintaining a simple and cost effective construction.
Suitable for indoor dry and lightly damp environments
Additional Technical Details
UK designation: P4YY
Standards: BS EN 50525-2-11
Core identification: numbered cores plus green/yellow earth
Sheath colour: grey
Suitable for control panels and internal wiring systems
Ideal for manufacturing, process control and building services applications
Available in multiple conductor sizes (commonly 0.75mm² to 1.5mm²)
Supplied in coils or drum lengths depending on specification
Current carrying capacity varies depending on conductor size and installation method
Designed for general-purpose control applications
What’s in the Box
Pitacs P4YY 4 Core YY Control Flex Cable (coil or drum)
Summary
The Pitacs P4YY 4 Core YY Control Flex Cable provides a reliable and flexible solution for standard control and instrumentation wiring. With its fine stranded copper conductors, PVC construction and simple multi-core design, it is ideal for HVAC systems, industrial control panels and building services installations where dependable performance and straightforward installation are required.
