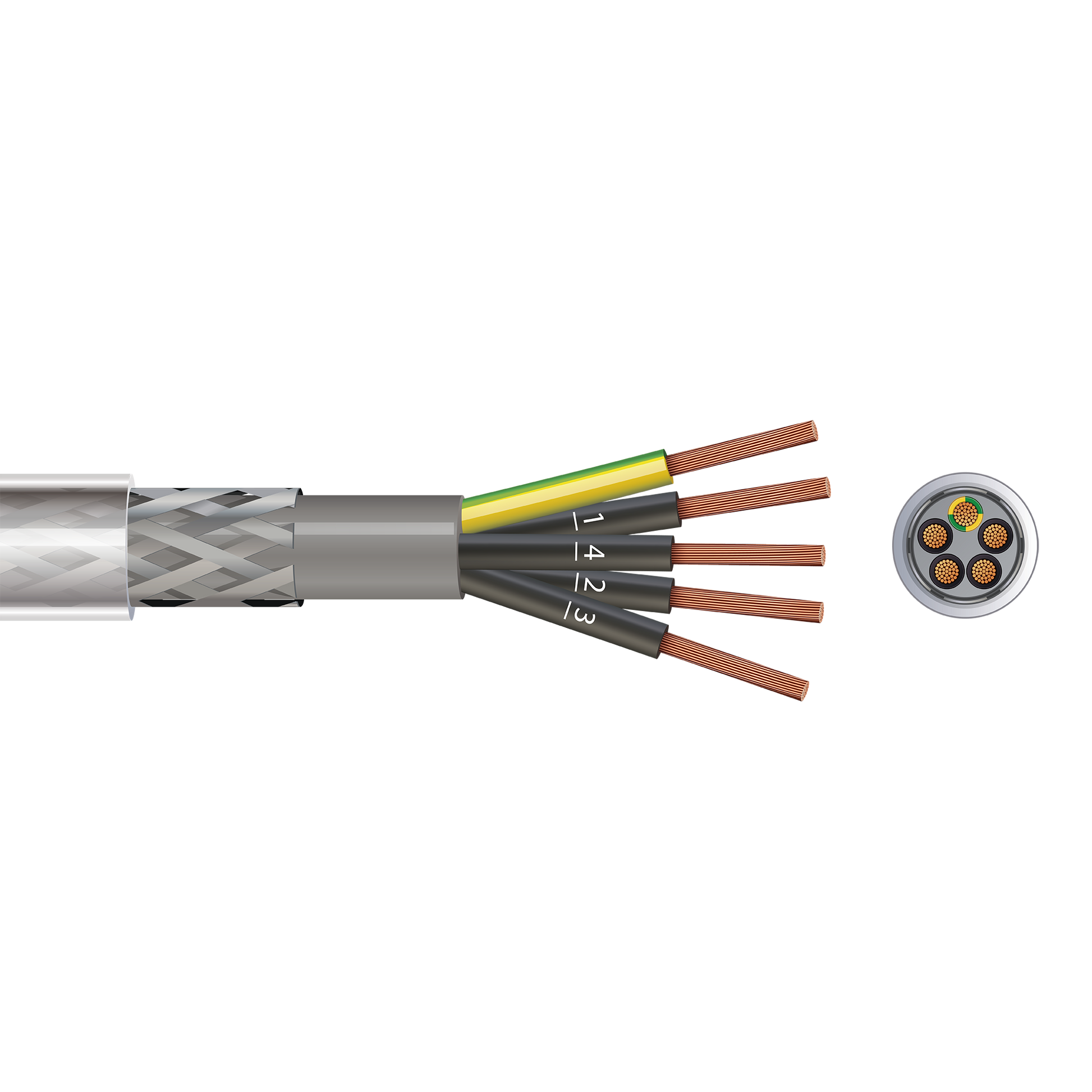

The Pitacs P5SY 5 Core SY Control Flex Cable is a screened and mechanically protected flexible control cable designed for measuring, monitoring and control applications in industrial, commercial and engineering environments. Suitable for machinery, automation systems, manufacturing equipment, HVAC installations and process control circuits, this cable combines reliable electrical performance with enhanced mechanical protection, making it ideal for installations where cables may be exposed to abrasion, impact or general site wear.
Manufactured using fine stranded Class 5 copper conductors with durable PVC insulation and sheath, the P5SY cable is designed for flexibility and ease of installation in control panels, machinery wiring systems and fixed installations. Its galvanised steel wire braid (SY) provides robust mechanical protection against crushing, abrasion and physical stress while still maintaining flexibility for routing in confined or demanding spaces.
Manufactured to BS EN 50525-2-11 standards, the Pitacs P5SY is intended for indoor use in dry or damp environments and is widely specified in industrial control systems where both signal reliability and mechanical durability are required.
Key Features
5 core SY screened control flex cable
Fine stranded Class 5 copper conductors
Galvanised steel wire braid (SY) for mechanical protection
Designed for measuring, monitoring and control systems
Suitable for industrial automation and machinery wiring
Ideal for HVAC and building management systems
Flexible construction for easier installation in control panels
Grey PVC outer sheath for durability
Number-coded cores with green/yellow earth conductor
Rated voltage: 300/500V
Flame retardant to IEC 60332-1
Manufactured to BS EN 50525-2-11 standards
Mechanical Protection for Industrial Environments
The Pitacs P5SY 5 Core SY Control Flex Cable is designed for environments where control cables are subject to mechanical stress such as abrasion, vibration or accidental impact. The galvanised steel wire braid provides a durable protective layer that improves resistance to physical damage compared with standard flexible control cables.
The fine stranded copper conductors ensure excellent flexibility and reliable electrical performance, allowing the cable to be installed easily in machinery, control cabinets, trunking and conduit systems. The 5 core configuration supports more complex control, monitoring and automation systems, reducing the need for multiple separate cables.
Core identification: numbered cores plus green/yellow earth
Sheath colour: clear or grey depending on variant
Suitable for instrumentation and control systems
Ideal for industrial, manufacturing and engineering installations
Available in multiple conductor sizes (commonly 1.5mm² and 2.5mm²)
Supplied in coils or drum lengths depending on specification
Current carrying capacity varies depending on conductor size and installation method
Designed for environments requiring both flexibility and mechanical protection
What’s in the Box
Pitacs P5SY 5 Core SY Control Flex Cable (coil or drum)
Summary
The Pitacs P5SY 5 Core SY Control Flex Cable provides a robust, mechanically protected solution for control and instrumentation wiring. With its galvanised steel wire braid armour, fine stranded copper conductors and flexible PVC construction, it delivers dependable performance in industrial, commercial and building control systems where both electrical reliability and physical durability are essential.
