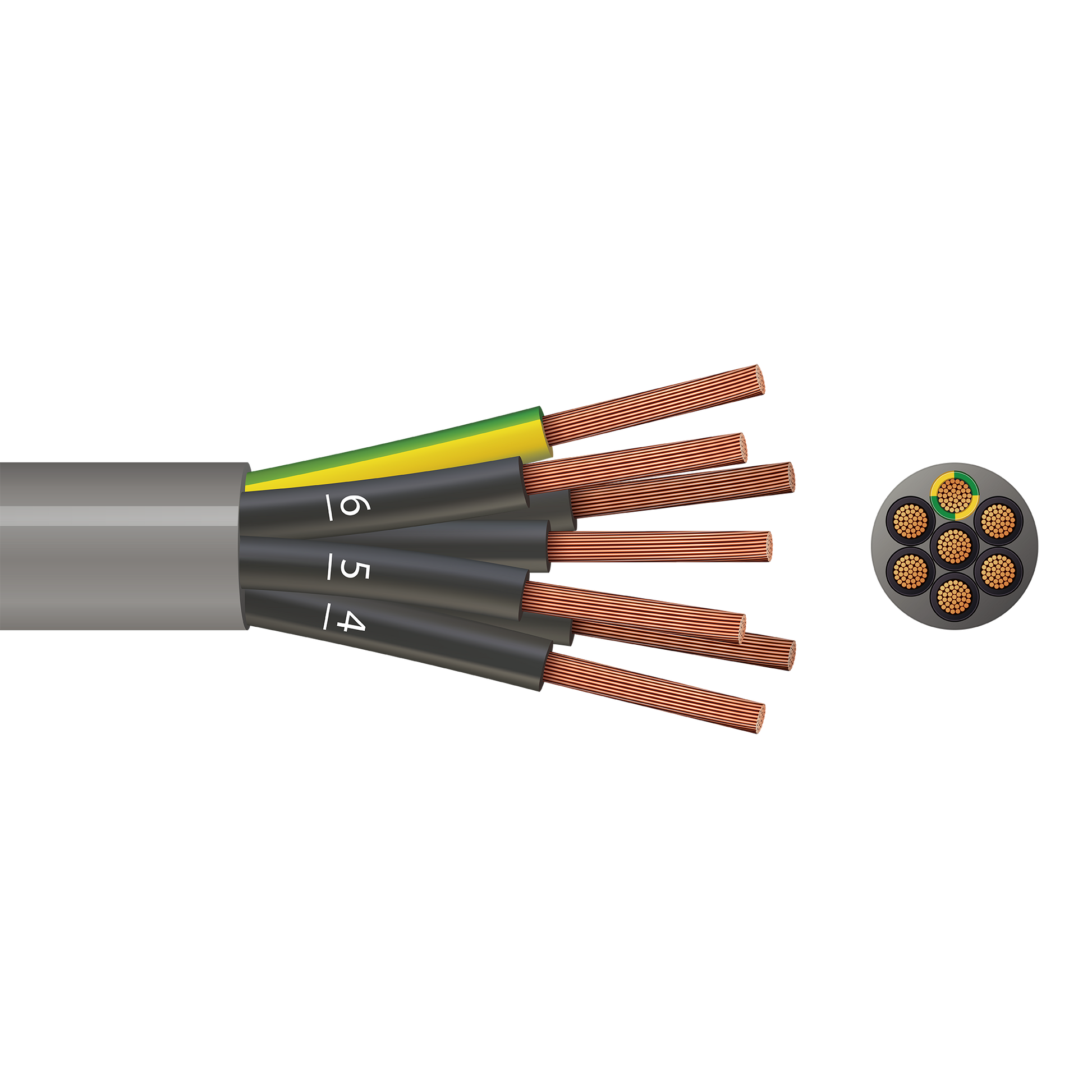

The Pitacs P7YY 7 Core YY Control Flex Cable is a flexible multi-core control and instrumentation cable designed for low voltage control applications in industrial, commercial and building services environments. Suitable for control panels, HVAC systems, automation equipment, machinery wiring and general electrical control circuits, this cable is intended for installations where multiple signal or control cores are required within a single cable and where screening or mechanical armouring is not necessary. It provides a practical and efficient solution for complex control wiring in protected indoor environments.
Manufactured using fine stranded Class 5 copper conductors with PVC insulation and a durable PVC outer sheath, the P7YY cable offers excellent flexibility and ease of installation in confined spaces such as control panels, ducts and equipment enclosures. The 7 core configuration allows for more advanced control, monitoring and switching applications, helping to reduce the need for multiple separate cables and simplifying overall system wiring layouts.
Manufactured to BS EN 50525-2-11 standards, the Pitacs P7YY is part of the YY control cable range designed for general-purpose control and instrumentation circuits where reliable electrical performance and straightforward installation are required.
Key Features
7 core YY control flex cable
Fine stranded Class 5 copper conductors
PVC insulation and PVC outer sheath
Designed for control and instrumentation systems
Suitable for HVAC and building services wiring
Ideal for industrial automation and machinery control
Flexible construction for easy installation in confined spaces
Compact round profile for routing efficiency
Number-coded cores with green/yellow earth conductor
Rated voltage: 300/500V
Flame retardant to IEC 60332-1
Manufactured to BS EN 50525-2-11 standards
Designed for Complex Multi-Core Control Systems
The Pitacs P7YY 7 Core YY Control Flex Cable is designed for installations requiring multiple control or signal circuits within a single cable assembly. It is commonly used in internal electrical systems where cables are installed in protected environments such as control panels, conduit systems or machinery housings. The absence of screening or mechanical protection makes it a lightweight and economical solution for general control wiring applications.
The fine stranded copper conductors provide reliable electrical performance and excellent flexibility, allowing the cable to be easily routed through tight spaces and complex wiring routes. The 7 core configuration supports more advanced control, monitoring and automation functions, helping to reduce installation complexity and cable congestion.
Suitable for indoor dry and lightly damp environments
Designed for control and instrumentation applications
Additional Technical Details
UK designation: P7YY
Standards: BS EN 50525-2-11
Core identification: numbered cores plus green/yellow earth
Sheath colour: grey
Suitable for control panels and internal wiring systems
Ideal for HVAC, building services and industrial control applications
Available in multiple conductor sizes (commonly 0.75mm² and 1.0mm²)
Supplied in coils or drum lengths depending on specification
Current carrying capacity varies depending on conductor size and installation method
Designed for general-purpose multi-core control circuits
What’s in the Box
Pitacs P7YY 7 Core YY Control Flex Cable (coil or drum)
Summary
The Pitacs P7YY 7 Core YY Control Flex Cable provides a reliable and flexible solution for complex multi-core control and instrumentation wiring. With its fine stranded copper conductors, PVC construction and efficient multi-core design, it is ideal for HVAC systems, industrial control panels and building services installations where dependable performance and simplified wiring layouts are essential.
