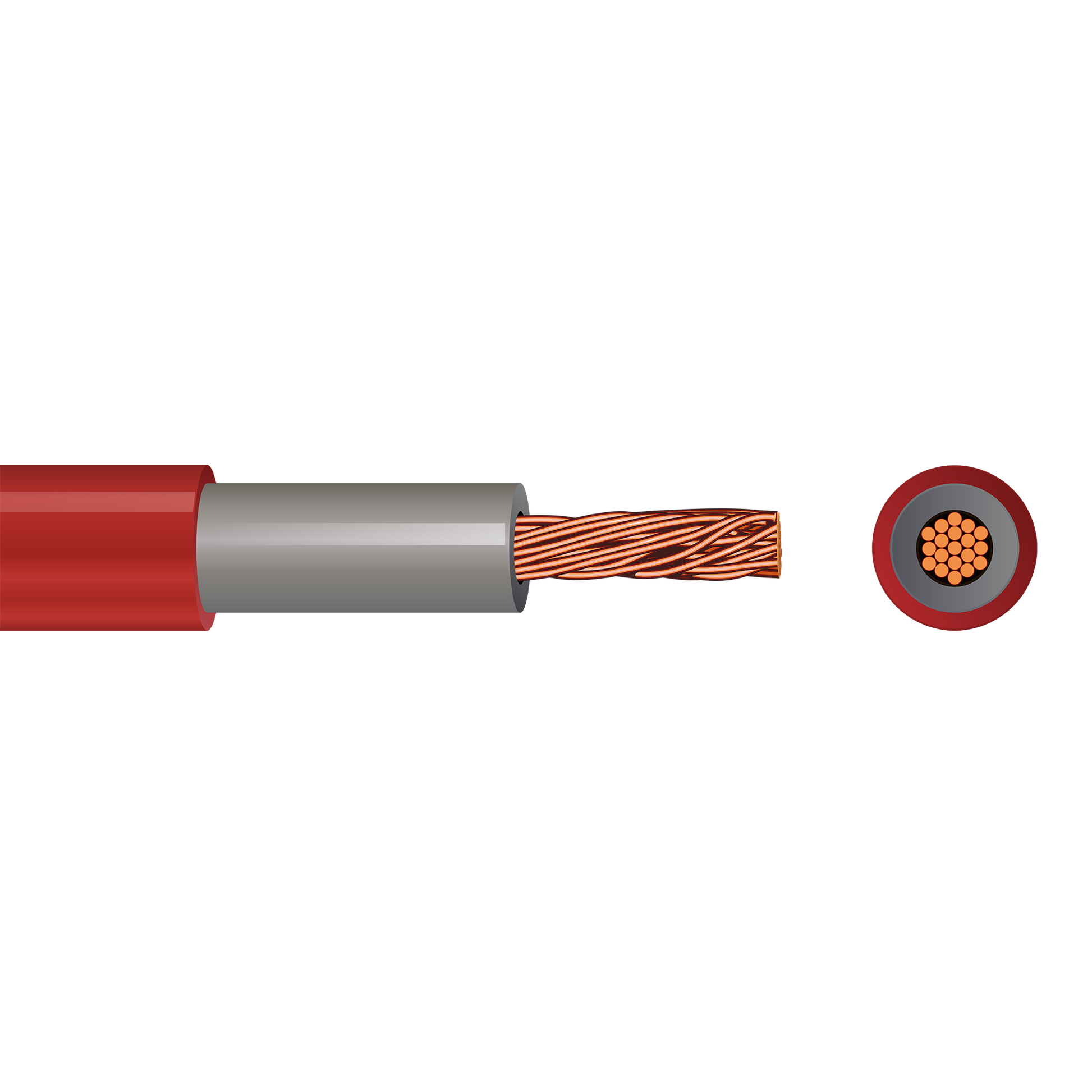

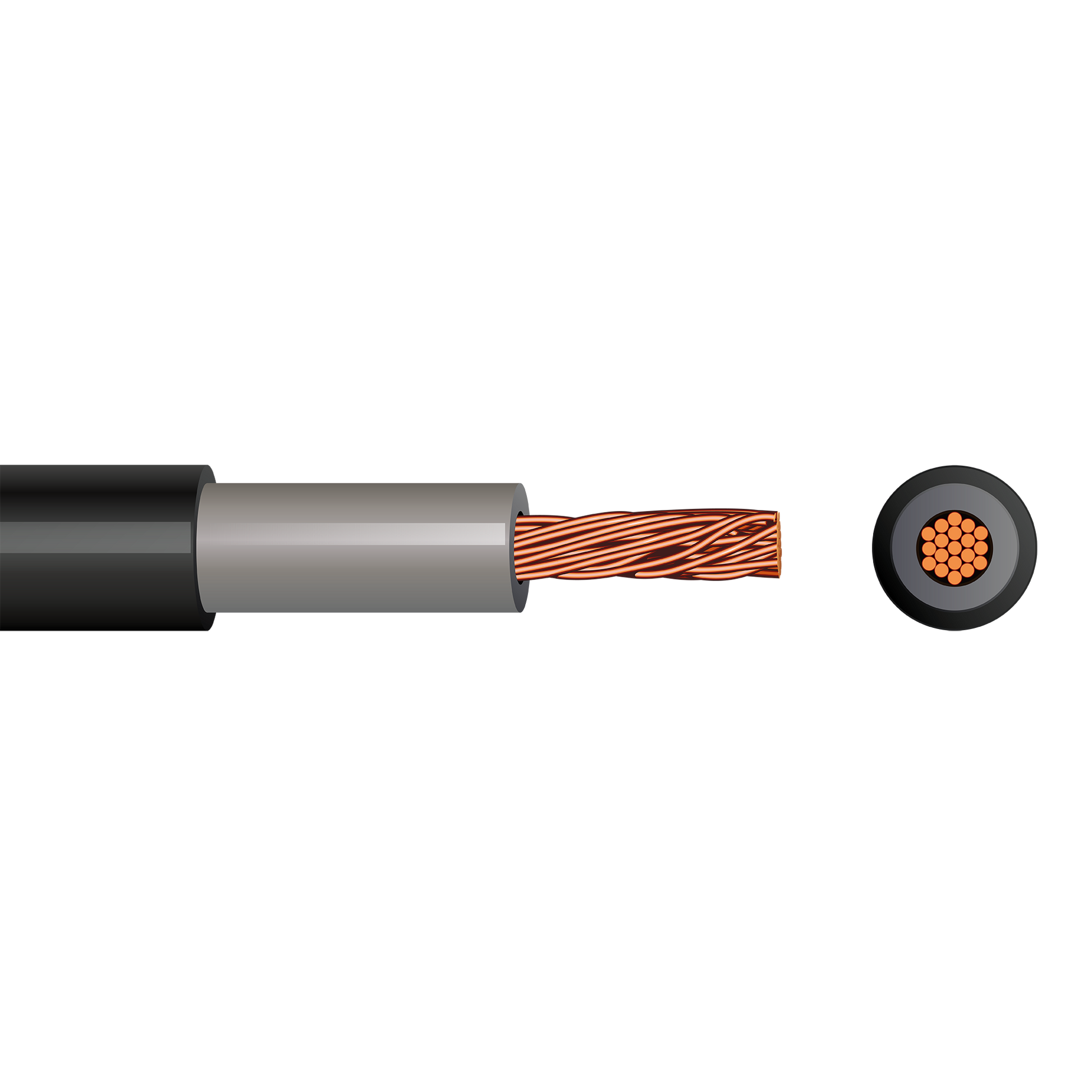

The Pitacs Solar Cable is a high-performance photovoltaic cable specifically designed for connecting solar panels and renewable energy systems. Manufactured for long-term outdoor use, this durable cable is suitable for solar installations on residential, commercial and industrial properties, providing reliable power transmission between photovoltaic modules, inverters and associated equipment. Engineered to withstand harsh environmental conditions, it offers excellent resistance to UV radiation, ozone, moisture and temperature extremes, ensuring dependable performance throughout the life of the solar installation.
Constructed using flexible tinned copper conductors and premium cross-linked insulation and sheath materials, the Pitacs Solar Cable delivers outstanding electrical efficiency and durability. Its low smoke, halogen-free construction provides enhanced safety, whilst the flexible design allows for easier installation across rooftops, solar arrays and renewable energy systems.
Key Features
Designed specifically for photovoltaic solar installations
Flexible tinned copper conductors
Low smoke halogen-free (LSZH) construction
Excellent UV and ozone resistance
Suitable for indoor and outdoor installations
Resistant to moisture and weathering
Double insulated construction for enhanced safety
Suitable for direct current (DC) solar applications
High temperature performance
Long service life in demanding environments
Ideal for connecting solar panels and inverters
Manufactured to recognised solar cable standards
Designed for Renewable Energy Systems
The Pitacs Solar Cable is engineered to provide reliable power transmission in photovoltaic systems operating under continuous outdoor exposure. The robust insulation and sheath materials are designed to withstand prolonged exposure to sunlight, temperature fluctuations and environmental stress, helping to maximise the lifespan of the cable and the overall solar installation.
Its flexible tinned copper conductors offer excellent conductivity whilst providing resistance to corrosion, making the cable particularly suitable for exposed rooftop and external installations. The cable's durable construction ensures long-term performance in renewable energy applications where reliability is essential.
Technical Information
Cable Type: Solar Photovoltaic Cable
Conductor Material: Tinned Copper
Conductor Class: Flexible Stranded Conductor
Insulation Material: Cross-linked Compound
Sheath Material: Cross-linked LSZH Compound
Voltage Rating: 1.0/1.0kV AC
Voltage Rating: 1.5kV DC
Halogen Free: Yes
UV Resistant: Yes
Ozone Resistant: Yes
Suitable for Indoor and Outdoor Use
Suitable for Fixed and Flexible Installations
Additional Technical Details
Designed for photovoltaic power systems
Suitable for connecting solar modules and inverters
Excellent resistance to weathering and environmental ageing
High temperature operating capability
Flexible for easier installation and cable routing
Suitable for rooftop solar installations
Compatible with modern solar connector systems
Available in a range of conductor sizes
Supplied in cut lengths, coils and drums depending on specification
Long operational lifespan in solar energy applications
What’s in the Box
Pitacs Solar Cable (cut length, coil or drum depending on selection)
Summary
The Pitacs Solar Cable provides a reliable, durable and efficient wiring solution for photovoltaic installations. Featuring flexible tinned copper conductors, UV-resistant LSZH construction and excellent environmental protection, it is designed to deliver long-term performance in residential, commercial and industrial solar energy systems.
