Stiebel Eltron DHE Set Comfort Instantaneous Water Heater

Stiebel Eltron DHE Set Comfort Instantaneous Water Heater

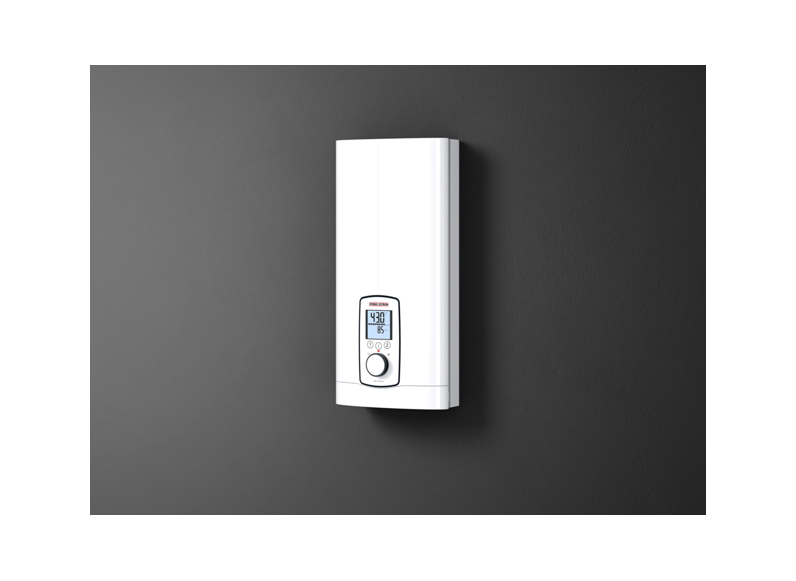

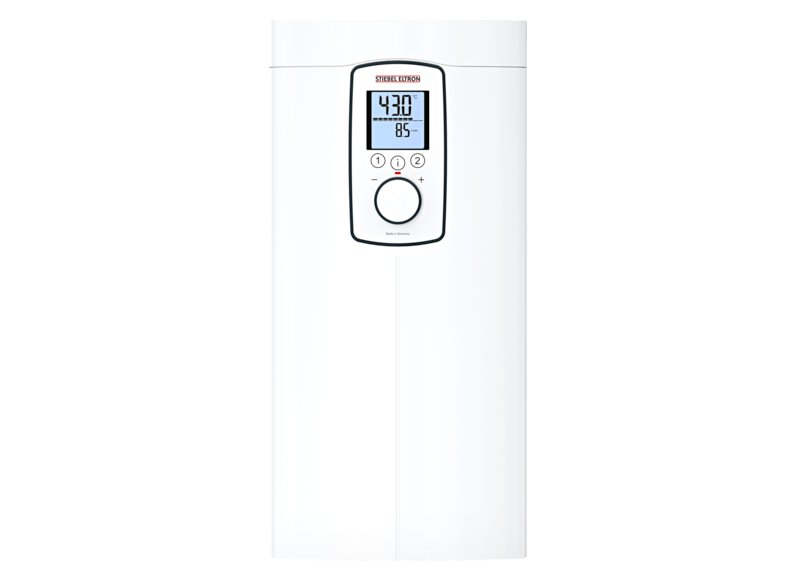

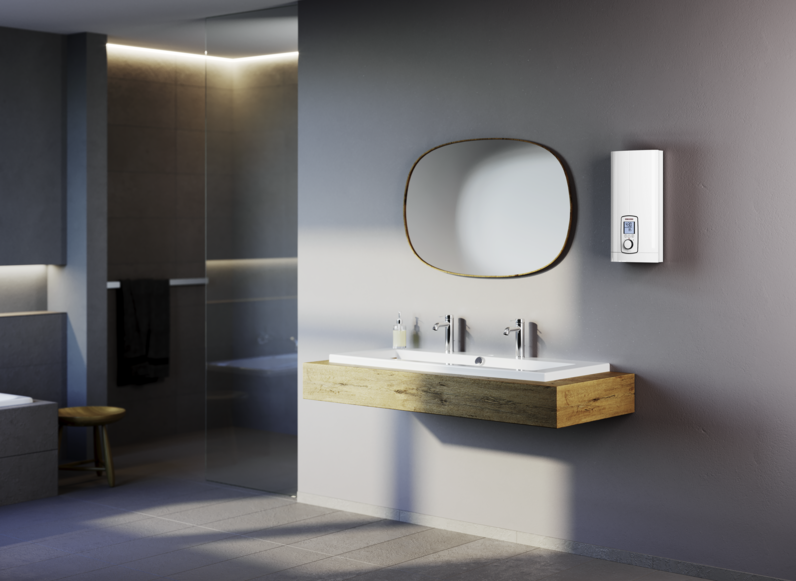

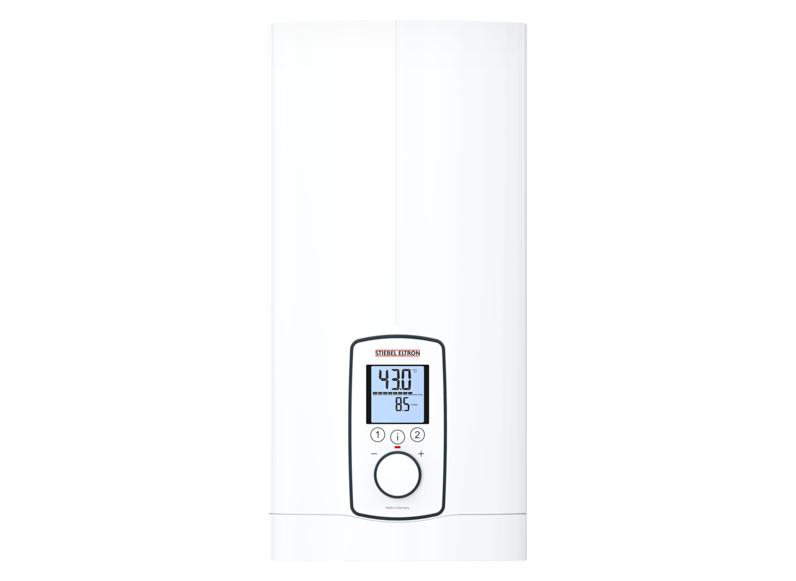

The Stiebel Eltron DHE Set Comfort Instantaneous Water Heater from Stiebel Eltron is a fully electronic, high performance hot water solution designed to deliver precise temperature control and efficient on demand operation. Suitable for bathrooms, kitchens and commercial washrooms, the DHE Set Comfort range provides continuous hot water without the need for stored cylinders, helping to eliminate standing losses and improve overall energy efficiency.

Available in two model variants, DHE 18 21 24 Set Comfort and DHE 27 Set Comfort, this range covers a broad spectrum of installation requirements, making it suitable for single or multiple draw off points in residential and commercial settings.

Key Features

• Two model options: DHE 18 21 24 Set Comfort and DHE 27 Set Comfort

• Fully electronic output control with advanced 4i technology

• Precise temperature selection from 20 to 60 degrees Celsius

• Large backlit multifunction display

• Two programmable memory temperature buttons

• ECO mode with consumption indicator

• Childproof temperature limit setting

• PROFI RAPID installation system for faster fitting

• IP25 rating suitable for bathroom zones

Heating Performance and Technical Information

The DHE Set Comfort range heats water instantaneously as it flows through the unit. This ensures hot water is available only when required, significantly reducing energy waste compared to stored systems.

The DHE 18 21 24 Set Comfort model offers selectable output ratings of 18 kW, 21 kW or 24 kW, allowing installers to configure the unit according to site requirements and available electrical supply. This flexibility makes it ideal for standard domestic bathrooms, en suites and kitchen sinks.

The DHE 27 Set Comfort provides a higher 27 kW output for properties with increased hot water demand or where higher flow rates are required. This makes it particularly suited to larger bathrooms or simultaneous draw off situations.

Both models operate on a 400 V three phase supply and use Stiebel Eltron’s 4i electronic control system, which continuously adjusts output in response to inlet temperature and flow rate changes. This ensures stable outlet temperatures even during fluctuations in water pressure.

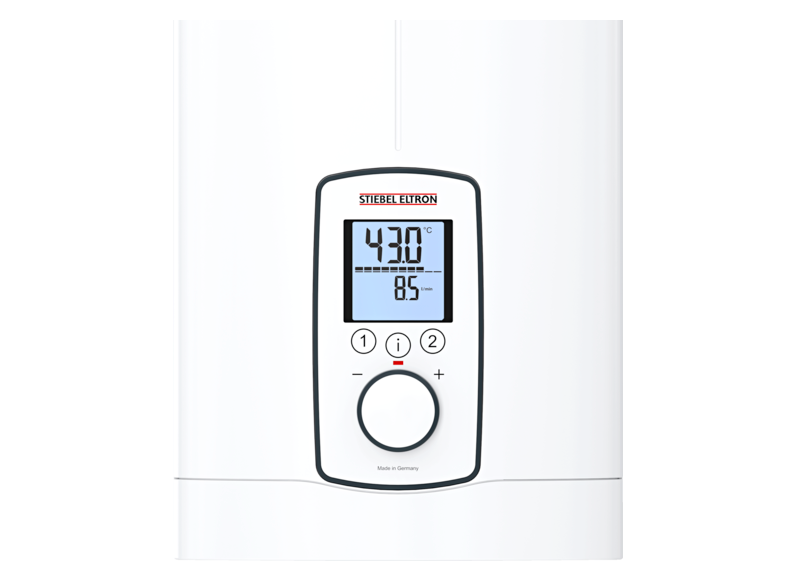

The intuitive digital display provides real time temperature information and allows users to quickly access pre set comfort settings. ECO mode helps optimise electricity usage while maintaining performance.

Additional Technical Details

• Voltage: 400 V three phase

• Output range: 18 kW to 27 kW depending on model

• Temperature adjustment range: 20 to 60 degrees Celsius

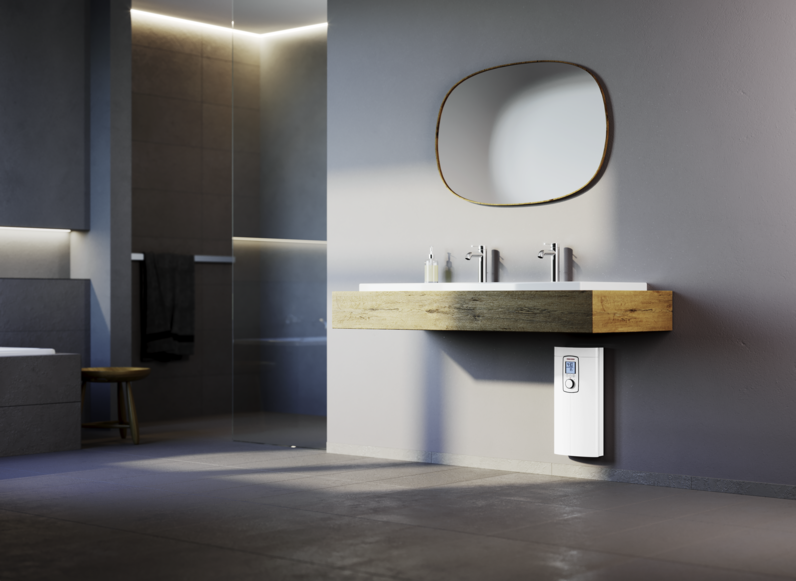

• Installation type: Wall mounted, typically undersink or close to point of use

• Control type: Fully electronic with digital display

• Protection rating: IP25

• Colour: White

• Suitable for one or multiple draw off points depending on output selection

What’s in the Box

• Stiebel Eltron DHE Set Comfort Instantaneous Water Heater

• Mounting bracket and installation accessories

• Installation and user instructions

Summary

The Stiebel Eltron DHE Set Comfort Instantaneous Water Heater range delivers accurate temperature control, high energy efficiency and flexible installation options. With the choice of the configurable 18 21 24 kW model or the higher output 27 kW version, this range provides a professional, reliable solution for properties requiring consistent and responsive on demand hot water performance.
