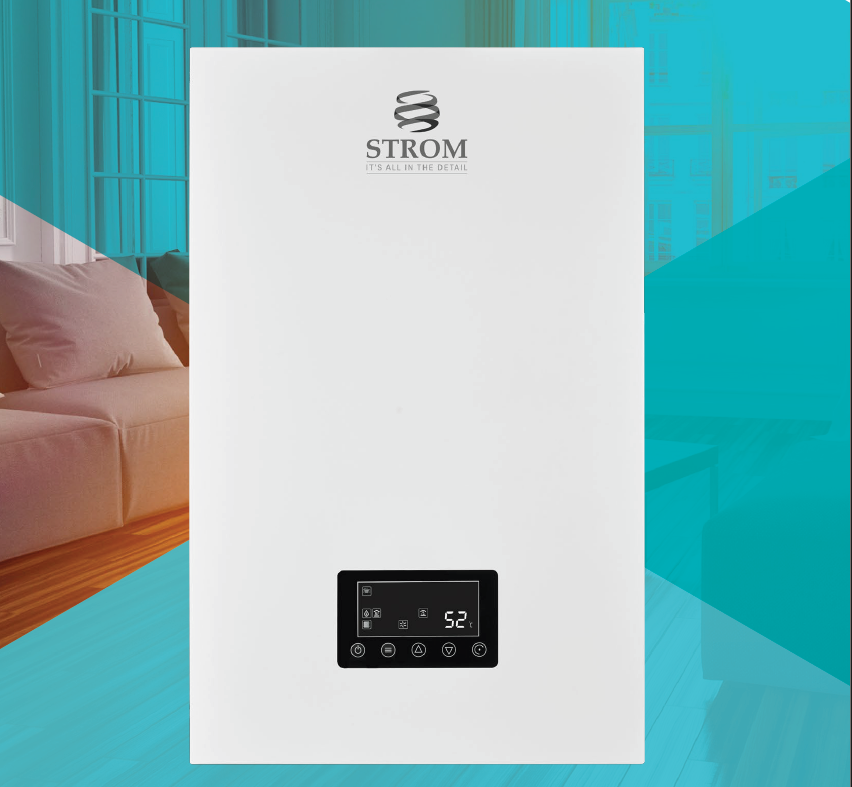

The Strom AuraHeat Stored Electric Combi Boiler is designed to overcome the traditional limitations of electric combination boilers, delivering gas like domestic hot water performance using electric power. Featuring an integrated 35 litre stainless steel storage tank and unique Recirc Technology, the AuraHeat makes high flow showers and even baths achievable in properties where gas is not an option.
Key Features
Built in 35 litre stainless steel storage tank for improved hot water delivery
Integrated Recirc Technology for increased flow rates and improved performance
Built in diverter for switching between central heating and the integral hot water tank
Programmable parameters to prioritise volume, flow rate or a balanced mode
Digital programmable blending valve for efficient hot water management
Total domestic hot water output temperature up to 55°C at reduced flow rates
Fast tank reheat times of as little as 20 minutes
Increased scale resistance thanks to integrated stainless steel coil
Heating Performance and Hot Water Delivery
Unlike standard electric combi boilers, the AuraHeat Stored Combi uses a pre heated internal tank to dramatically improve hot water performance. The 35 litre tank can be heated up to 80°C and is blended before passing through the instantaneous heating element, extending the usable hot water volume and allowing significantly higher flow rates.
With the tank at full capacity, the AuraHeat can achieve domestic hot water flow rates of up to 12 litres per minute at a 30°C temperature rise. Even when the tank is fully depleted, flow rates of up to 7 litres per minute are maintained. This level of performance allows for comfortable showers and makes filling a bath achievable with an electric boiler.
Recirc Technology Explained
The AuraHeat Recirc Technology feeds pre heated water from the internal tank back through the boiler’s instantaneous heating element rather than drawing directly from cold mains water. This process increases hot water longevity, improves flow rates and delivers a level of performance previously thought unachievable for electric boilers.
Operation Modes
The integrated tank can be configured in four different operating modes to suit varying lifestyles and usage patterns:
Always On The tank remains heated at the set temperature and is always ready for use.
Always Off The tank remains unheated, allowing the boiler to operate like a standard electric combi.
Boost Once The tank heats once in approximately 20 minutes, ideal for occasional higher demand.
Timed On The tank is programmed to heat at scheduled times each day.
Technical Information
The Strom AuraHeat Stored Combi is available in two outputs:
9.5kW Model
Recommended DHW flow rate 10 LPM at 30°C rise
Tank reheat time approximately 22 minutes
ErP heating rating D
ErP domestic hot water rating A
13.5kW Model
Recommended DHW flow rate 12 LPM at 30°C rise
Tank reheat time approximately 20 minutes
ErP heating rating D
ErP domestic hot water rating A
Additional Technical Details
Product dimensions 920 x 570 x 300 mm
Empty weight 40 kg (9.5kW) and 43 kg (13.5kW)
Full weight 75 kg (9.5kW) and 78 kg (13.5kW)
Rated voltage 230V
Heating temperature range 30 to 80°C
Hot water temperature range 30 to 55°C
Heating circuit pressure range 0.5 to 3.0 bar
Domestic hot water circuit pressure range 0.1 to 6.0 bar
