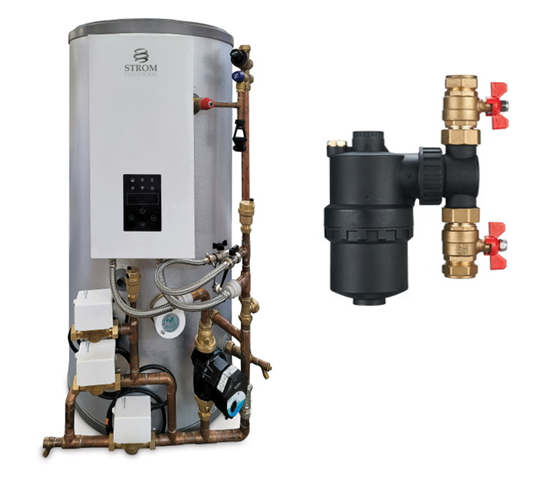

Strom AI One Single Phase Regular Boiler & Pre Plumb Indirect Cylinder C/W Filter 3 Year Warranty

STROM AI One Single Phase Heat Only Boilers with Indirect Cylinders

This compact and silent electric boiler features touchscreen controls and display, including an expansion vessel and pump, without needing a flue. It utilizes Serpentine heating element technology and is compatible with solar panels. Designed for properties without access to the gas grid or where traditional gas boilers cannot be installed, it provides an ideal heating solution.

Key Features:

STROM Electric Boilers:

• Heat Output: 6kW to 14.4kW
• Amps at 230VAC: 26A to 62A
• Minimum Breaker Size: 32A to 63A
• Minimum Cable Size: 2.5mm² to 10mm²
• Heating Temperature Range: 20°C - 80°C
• Heating Pressure Range: 0.5 - 1.5 Bar
• ERP Rating (Heating): D

STROM Pre-Plumbed Indirect Cylinders:

• Capacity: 147 litres to 200 litres
• Weight Empty: 48 kg to 56 kg
• Weight Full: 196 kg to 253 kg
• Heat Loss: 1.32 kWh/24h to 1.7 kWh/24h
• Max Water Pressure: 10.0 Bar
• Max Fill Pressure: 3.0 Bar
• Number of Immersions: 1
• Coil Rating: 18.25 kW to 19.94 kW
• ERP Rating (Cylinder Only): B to C

Technical Specifications:

STROM 6KW SINGLE PHASE HEAT ONLY ELECTRIC BOILER

• Heat output: 6kW
• Amps at 230VAC: 26A
• Min Breaker Size: 32A
• Min Cable size: 2.5mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar
• ERP Rating (Heating): D

150L PRE-PLUMBED INDIRECT CYLINDER

• Capacity (litres): 147
• Weight empty (kg): 48
• Weight full (kg): 196
• Heat Loss (kWh/24h): 1.32
• Max water pressure: 10.0 Bar
• Max fill pressure: 3.0 Bar
• Number of immersions: 1
• Coil rating (kW): 18.25
• ERP Rating (cylinder only): B

STROM 9KW SINGLE PHASE HEAT ONLY ELECTRIC BOILER

• Heat output: 9kW
• Amps at 230VAC: 41A
• Min Breaker Size: 45A
• Min Cable size: 6mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar
• ERP Rating (Heating): D

150L PRE-PLUMBED INDIRECT CYLINDER

• Capacity (litres): 147
• Weight empty (kg): 48
• Weight full (kg): 196
• Heat Loss (kWh/24h): 1.32
• Max water pressure: 10.0 Bar
• Max fill pressure: 3.0 Bar
• Number of immersions: 1
• Coil rating (kW): 18.25
• ERP Rating (cylinder only): B

STROM 9KW SINGLE PHASE HEAT ONLY ELECTRIC BOILER

• Heat output: 9kW
• Amps at 230VAC: 41A
• Min Breaker Size: 45A
• Min Cable size: 6mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar
• ERP Rating (Heating): D

170L PRE-PLUMBED INDIRECT CYLINDER

• Capacity (litres): 167
• Weight empty (kg): 52
• Weight full (kg): 220
• Heat Loss (kWh/24h): 1.63
• Max water pressure: 10.0 Bar
• Max fill pressure: 3.0 Bar
• Number of immersions: 1
• Coil rating (kW): 19.35
• ERP Rating (cylinder only): C

STROM 11KW SINGLE PHASE HEAT ONLY ELECTRIC BOILER

• Heat output: 11kW
• Amps at 230VAC: 48A
• Min Breaker Size: 63A
• Min Cable size: 10mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar
• ERP Rating (Heating): D

150L PRE-PLUMBED INDIRECT CYLINDER

• Capacity (litres): 147
• Weight empty (kg): 48
• Weight full (kg): 196
• Heat Loss (kWh/24h): 1.32
• Max water pressure: 10.0 Bar
• Max fill pressure: 3.0 Bar
• Number of immersions: 1
• Coil rating (kW): 18.25
• ERP Rating (cylinder only): B

STROM 11KW SINGLE PHASE HEAT ONLY ELECTRIC BOILER

• Heat output: 11kW
• Amps at 230VAC: 48A
• Min Breaker Size: 63A
• Min Cable size: 10mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar
• ERP Rating (Heating): D

170L PRE-PLUMBED INDIRECT CYLINDER

• Capacity (litres): 167
• Weight empty (kg): 52
• Weight full (kg): 220
• Heat Loss (kWh/24h): 1.63
• Max water pressure: 10.0 Bar
• Max fill pressure: 3.0 Bar
• Number of immersions: 1
• Coil rating (kW): 19.35
• ERP Rating (cylinder only): C

STROM 11KW SINGLE PHASE HEAT ONLY ELECTRIC BOILER

• Heat output: 11kW
• Amps at 230VAC: 48A
• Min Breaker Size: 63A
• Min Cable size: 10mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar
• ERP Rating (Heating): D

200L PRE-PLUMBED INDIRECT CYLINDER

• Capacity (litres): 197
• Weight empty (kg): 56
• Weight full (kg): 253
• Heat Loss (kWh/24h): 1.7
• Max water pressure: 10.0 Bar
• Max fill pressure: 3.0 Bar
• Number of immersions: 1
• Coil rating (kW): 19.94
• ERP Rating (cylinder only): C

STROM 14.4KW SINGLE PHASE HEAT ONLY ELECTRIC BOILER

• Heat output: 14.4kW
• Amps at 230VAC: 62A
• Min Breaker Size: 63A
• Min Cable size: 10mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar
• ERP Rating (Heating): D

150L PRE-PLUMBED INDIRECT CYLINDER

• Capacity (litres): 147
• Weight empty (kg): 48
• Weight full (kg): 196
• Heat Loss (kWh/24h): 1.32
• Max water pressure: 10.0 Bar
• Max fill pressure: 3.0 Bar
• Number of immersions: 1
• Coil rating (kW): 18.25
• ERP Rating (cylinder only): B

STROM 14.4KW SINGLE PHASE HEAT ONLY ELECTRIC BOILER

• Heat output: 14.4kW
• Amps at 230VAC: 62A
• Min Breaker Size: 63A
• Min Cable size: 10mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar
• ERP Rating (Heating): D

170L PRE-PLUMBED INDIRECT CYLINDER

• Capacity (litres): 167
• Weight empty (kg): 52
• Weight full (kg): 220
• Heat Loss (kWh/24h): 1.63
• Max water pressure: 10.0 Bar
• Max fill pressure: 3.0 Bar
• Number of immersions: 1
• Coil rating (kW): 19.35
• ERP Rating (cylinder only): C

STROM 14.4KW SINGLE PHASE HEAT ONLY ELECTRIC BOILER

• Heat output: 14.4kW
• Amps at 230VAC: 62A
• Min Breaker Size: 63A
• Min Cable size: 10mm²
• Heating Temp range: 20°C - 80°C
• Heating pressure range: 0.5 - 1.5 Bar
• ERP Rating (Heating): D

200L PRE-PLUMBED INDIRECT CYLINDER

• Capacity (litres): 197
• Weight empty (kg): 56
• Weight full (kg): 253
• Heat Loss (kWh/24h): 1.7
• Max water pressure: 10.0 Bar
• Max fill pressure: 3.0 Bar
• Number of immersions: 1
• Coil rating (kW): 19.94
• ERP Rating (cylinder only): C
