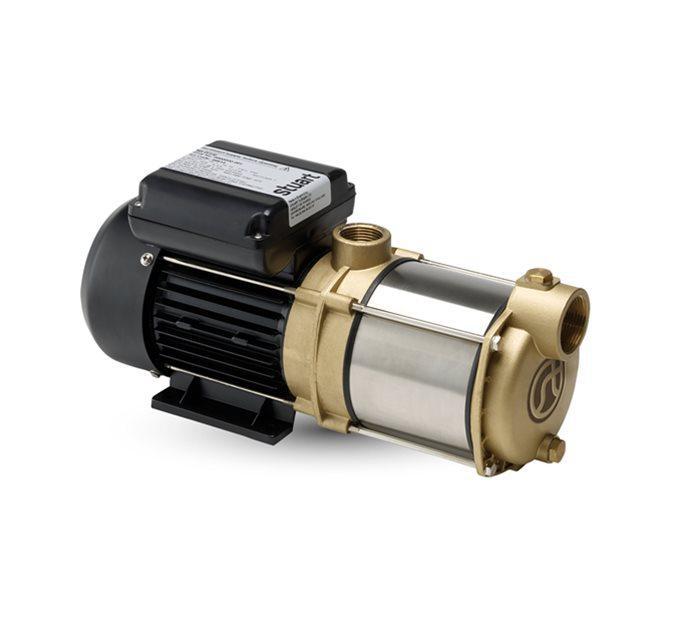

Stuart Turner CH4-30 Centrifugal Horizontal Multistage Pump
£346.47
/ per
Share
Product description
Stuart Turner CH4-30 Centrifugal Horizontal Multistage Pump
Delivering reliable pressure boosting performance for residential and light commercial applications. Designed to handle clean water efficiently, this robust pump offers self-priming capability and continuous operation, making it ideal for boosting stored water supplies to showers, taps, cylinders and other outlets where stable pressure and flow are required. Durable brass and stainless steel construction, quiet operation and easy install make the CH 4-30 a dependable choice for installers and end users alike.
Key Features
Centrifugal multistage design for excellent pressure boosting and consistent flow rates.
Robust materials including brass and stainless steel pump body and stainless impeller for long service life.
Self-priming up to 5 metres, simplifying installation in systems with elevated tanks.
Continuously rated induction motor with thermal protection for reliable operation.
Quiet running, making it suitable for internal plant rooms and residential installations.
Extended-life mechanical seal using EPDM, carbon and ceramic materials.
WRAS and CE approved components, assuring compliance with potable water standards and safety.
Performance Summary
The CH 4-30 is engineered for efficient pressure boosting in systems with long pipe runs or elevated outlets. Its multistage centrifugal design enables effective flow and head generation:
Maximum head (closed valve): up to approximately 25 metres.
Flow capability: supports high flow rates, typically up to 140–160 litres per minute under appropriate conditions.
Self-priming: up to 5 metres, facilitating installation in varied configurations.
These attributes make the CH 4-30 suitable for boosting mains and stored water to meet demand across multiple outlets without compromising performance.
Technical Information
Power supply: 230 V AC, single phase, 50 Hz.
Duty rating: Continuous (S1) with auto-reset thermal trip motor protection.
Mechanical seal materials: EPDM / carbon / ceramic.
Maximum static inlet pressure: up to 1.0 bar (10 m).
Environmental rating: IPX5 enclosure for reliable service in typical indoor environments.
Self-priming capability: up to 5 metres.
Additional Technical Details
Pump body material: Brass and stainless steel.
Impeller material: Stainless steel.
Priming vent plug: Included.
Typical noise rating: Approximately 67 dB(A).
Inlet/outlet connections: Standard G 1¼ female inlet and G 1 female outlet.
Installation type: Horizontal mounting.
What’s in the Box
Stuart Turner CH 4-30 Centrifugal Horizontal Multistage Pump
Manufacturer’s installation and operation instructions
Pre-wired cable and basic mounting accessories
Summary
The Stuart Turner CH 4-30 Centrifugal Horizontal Multistage Pump is a high-quality pressure boosting solution engineered for efficient, continuous service in domestic and light commercial water systems. Its robust materials, self-priming capability and compact horizontal design support straightforward installation and long-term reliability. Backed by recognised approvals and construction standards, it delivers dependable performance where consistent pressure and flow matter most.
