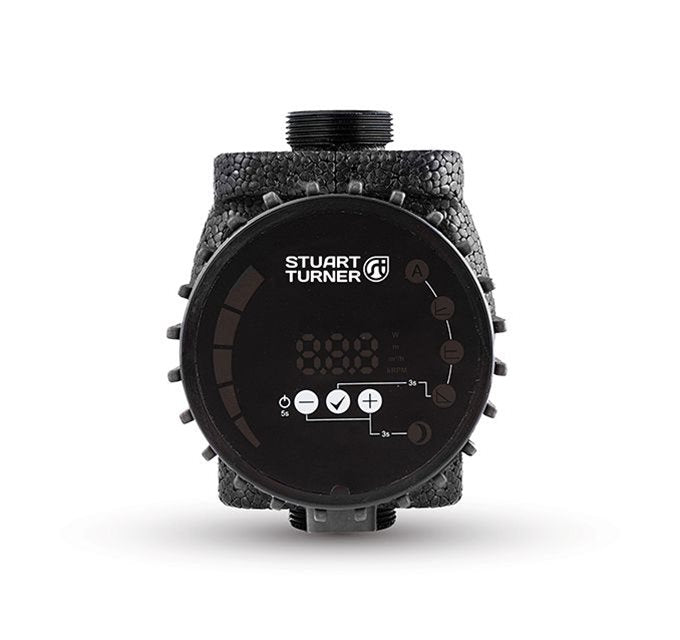

Stuart Turner Pulse 32/100-180 Commercial Circulator Pump
£560.39
/ per
Share
Product description
High-Performance Variable Speed Circulator for Commercial Hydronic Systems
The Stuart Turner Pulse 32/100-180 Commercial Circulator Pump is a electronically controlled, variable-speed circulator designed to deliver high-efficiency performance in commercial heating, air-conditioning, and ventilation systems. Engineered as part of the Stuart Pulse range, this cast iron single-head circulator constantly monitors and adjusts pressure and flow to maintain optimal hydraulic performance while reducing energy consumption and complying with modern ErP efficiency requirements. It is ideal for commercial plant rooms and HVAC applications requiring adaptable fluid circulation.
Key Features
Variable operating modes including automatic, proportional pressure, constant pressure and constant speed to match changing system demands.
Automatic night mode to reduce energy use during low-demand periods.
ECM permanent magnet motor technology for high energy efficiency compliant with ErP.
Automatic air venting cycle to minimise air in the system and improve reliability.
Robust cast iron housing with carbon bearings for durability in commercial environments.
Continuously rated (S1) for all-day operation.
LED display control panel for intuitive setup and status feedback.
Built-in protection against over-current, over-temperature and over-voltage conditions.
ErP compliant to meet regulatory energy efficiency standards.
2-year manufacturer warranty for peace of mind.
Performance Summary
The Pulse 32/100-180 is engineered to deliver reliable hydraulics for commercial systems:
Maximum head (closed valve): approximately 10.5 m.
Fitting length: 180 mm standard dimension for inline integration.
Pump connections: G 2 union connections for robust installation.
Maximum working pressure: up to 10 bar, suitable for commercial hot water circuits.
These performance characteristics support dependable circulation in demanding hydronic heating, ventilation and air-conditioning networks where dynamic control and energy efficiency are priorities.
Technical Information
Power supply: 230 V AC, single phase, 50 Hz.
Duty rating: Continuous (S1) for sustained commercial operation.
Pump body material: Cast iron with carbon bearings.
Fitted length: 180 mm to match common commercial system dimensions.
Connection size: G 2 union for secure plumbing connections.
Ambient operating temperature: Suitable for internal plant-room settings (typically up to ~40 °C).
Water temperature range: Designed to handle typical hydronic fluid temperatures (approx. -10 °C to 110 °C).
What’s in the Box
Stuart Turner Pulse 32/100-180 Commercial Circulator Pump
Installation and user manual
Union fittings
Summary
The Stuart Turner Pulse 32/100-180 Commercial Circulator Pump offers adaptable, energy-efficient circulation performance for commercial hydronic systems. Its advanced variable speed control, robust cast iron construction and automatic features make it well suited to demanding heating, cooling and ventilation applications where system responsiveness and energy compliance are required.
