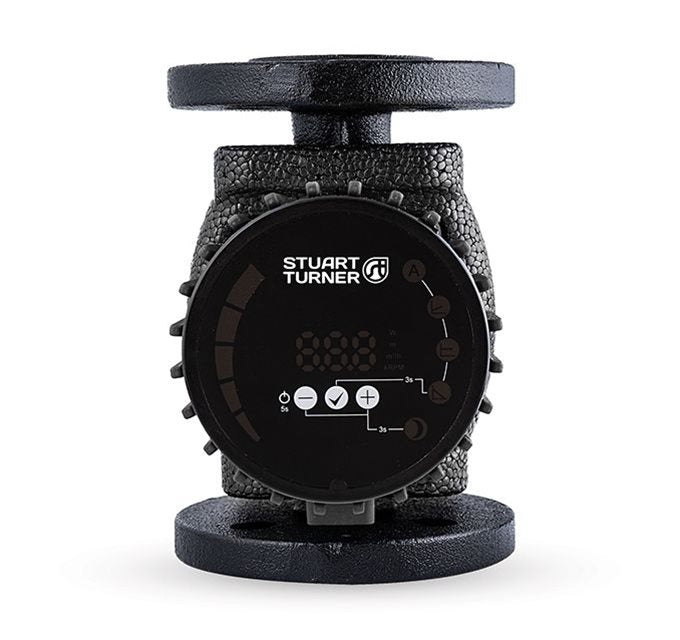

Stuart Turner Pulse 32/100‑F220 Commercial Circulator Pump
This is a professionally engineered single‑head flanged circulator designed for commercial and industrial hydronic applications, including hot‑water heating, air‑conditioning and ventilation systems. Part of the Stuart Pulse cast iron flanged range, this model delivers precision‑control circulation by constantly monitoring pressure and flow and automatically adjusting performance to suit system demands. Built with robust materials and advanced control technology, it supports energy‑efficient operation in demanding plant‑room environments.
Key Features
Variable speed control with multiple operating modes, automatic, proportional pressure, constant pressure and constant speed, for adaptive performance.
Automatic night mode for reduced energy consumption during low‑demand periods.
ECM permanent magnet motor technology delivering high efficiency and compliance with ErP standards.
Automatic venting cycle to minimise trapped air and improve reliability over time.
Robust cast iron housing with carbon bearings designed for commercial plant‑room conditions.
Flanged DN32 connections and a 220 mm fitting length for straightforward pipeline integration.
Built‑in protections including over‑current, over‑temperature and over‑voltage safeguards.
LED control panel for intuitive setup and on‑board feedback.
ErP compliant to meet modern energy efficiency requirements.
Two‑year manufacturer’s warranty for product confidence.
Performance Summary
The Pulse 32/100‑F220 provides dependable circulation performance tailored to commercial hydronic systems:
Maximum head (closed valve): approximately 10.5 metres.
Maximum flow rate: around 11.8 m³/h, depending on system conditions.
Maximum working pressure: up to 10 bar, suitable for commercial heating circuits.
Water temperature range: –10 °C to +110 °C, facilitating hot‑water system compatibility.
Minimum inlet pressure: 0.05 bar at fluid temperatures <75 °C.
These characteristics support efficient fluid circulation in medium‑to‑large commercial HVAC and hydronic heating systems where dynamic control and energy efficiency are priorities.
Technical Information
Power supply: 230 V AC, single phase, 50 Hz.
Duty rating: Continuous (S1) for all‑day operation.
Pump body material: Cast iron with carbon‑graphite bearings for durability and extended service life.
Fitting length: 220 mm, standard flanged installation dimension.
Connection size: DN32 flanged connections for secure integration into commercial pipework.
Enclosure protection: IP44 suitable for typical indoor mechanical plant environments.
Energy Efficiency Index (EEI): Typically around 0.21 depending on pump mode.
Maximum ambient temperature: 40 °C continuous operation.
What’s in the Box
Stuart Turner Pulse 32/100‑F220 Commercial Circulator Pump
Installation and operating manual
Flange gaskets and basic mounting accessories
Summary
The Stuart Turner Pulse 32/100‑F220 Commercial Circulator Pump is a highly adaptable, energy‑efficient flanged circulator designed to meet the rigours of commercial hydronic heating and HVAC systems. Its variable speed control, automatic features and cast iron construction deliver dependable performance and compliance with modern efficiency standards, making it a strong choice for building services engineers and professional installers.
