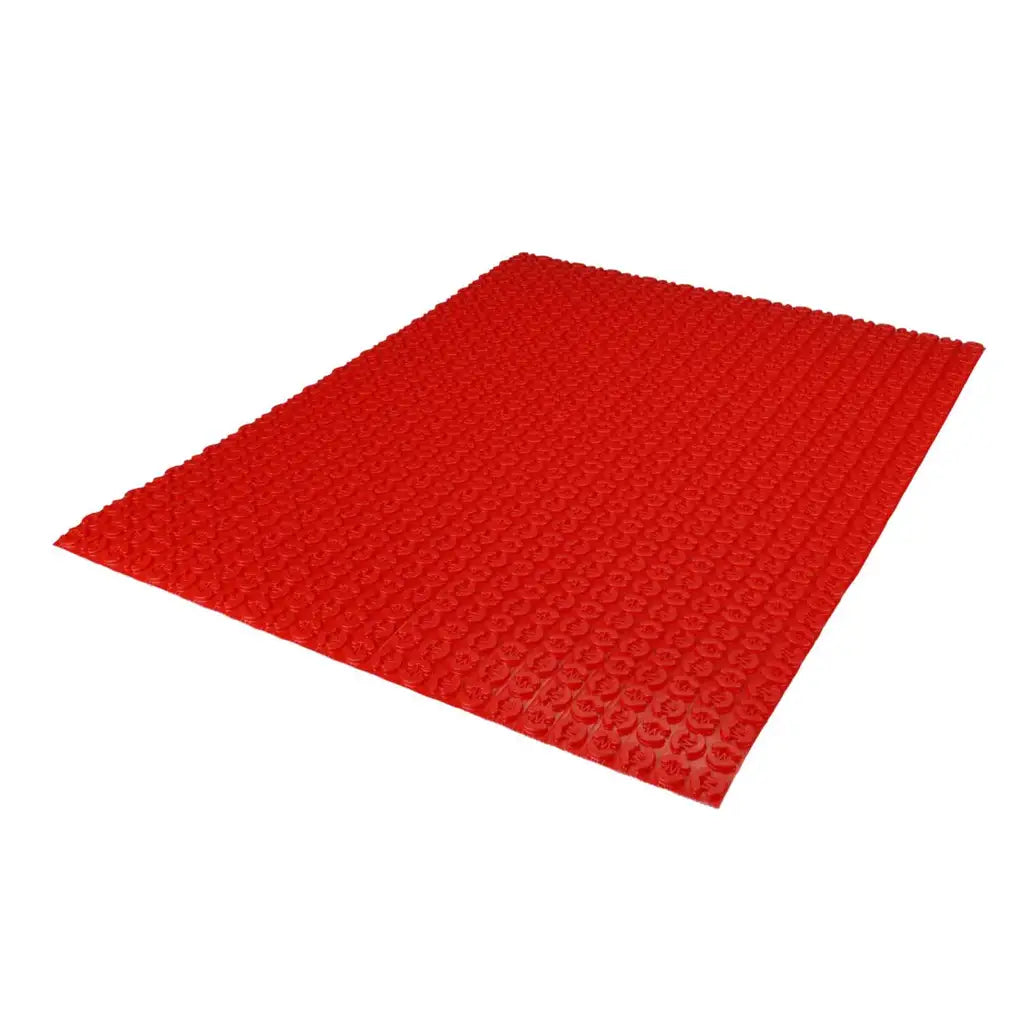

The Warmup DCM-PRO Peel & Stick V3 Mat is a self-adhesive decoupling membrane designed for use with the Warmup DCM-PRO electric underfloor heating system. Its pressure-sensitive adhesive backing allows the mat to be installed directly onto a prepared subfloor without requiring a separate adhesive layer, providing a fast and practical installation solution for tiled floors.
Key Features
Designed specifically for the Warmup DCM-PRO system
Self-adhesive Peel & Stick backing
Polypropylene decoupling membrane
Available as a 0.73m² sheet or 14m² roll
985mm wide
5.8mm thick

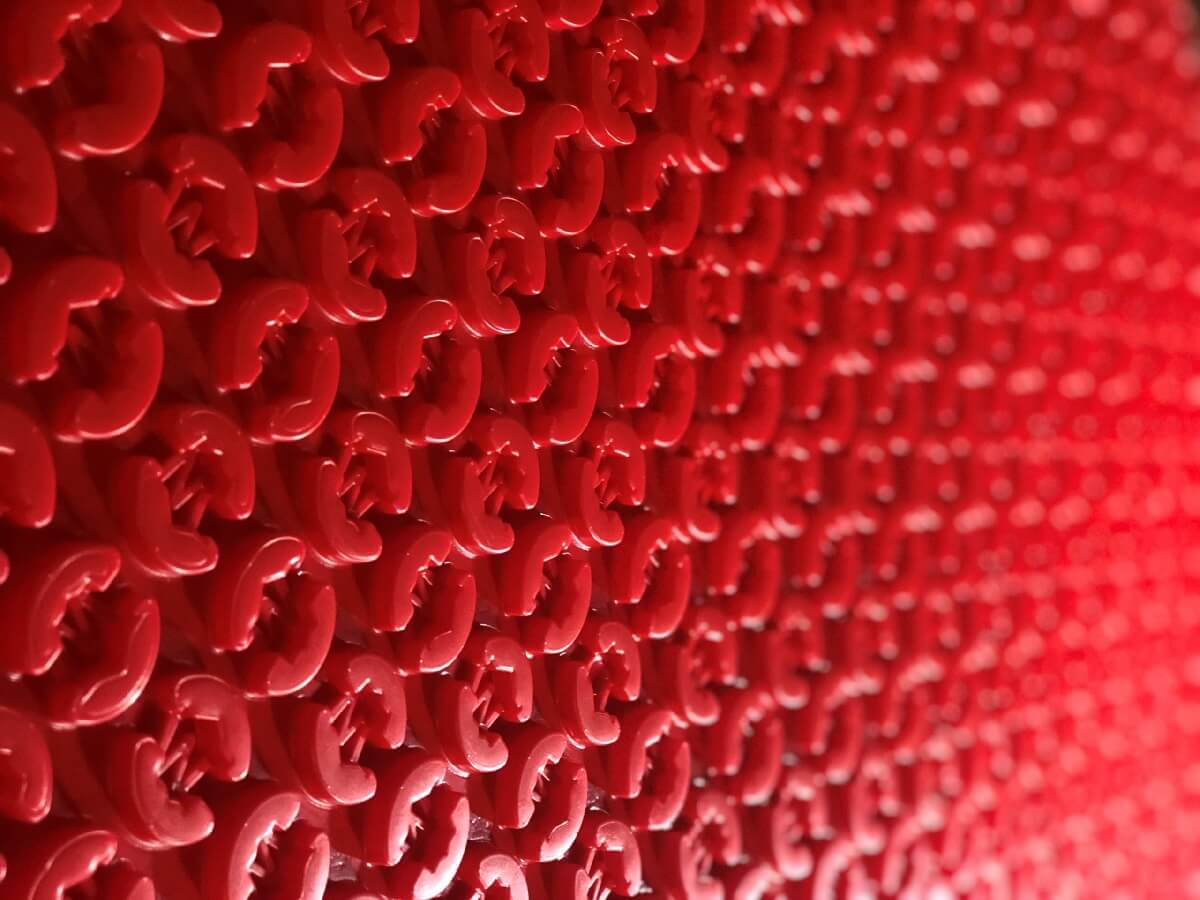

Castellated design for positioning DCM-PRO heating cable
Helps absorb lateral movement within the subfloor
Suitable for tiled floor finishes
No separate adhesive required to bond the Peel & Stick mat to the prepared subfloor

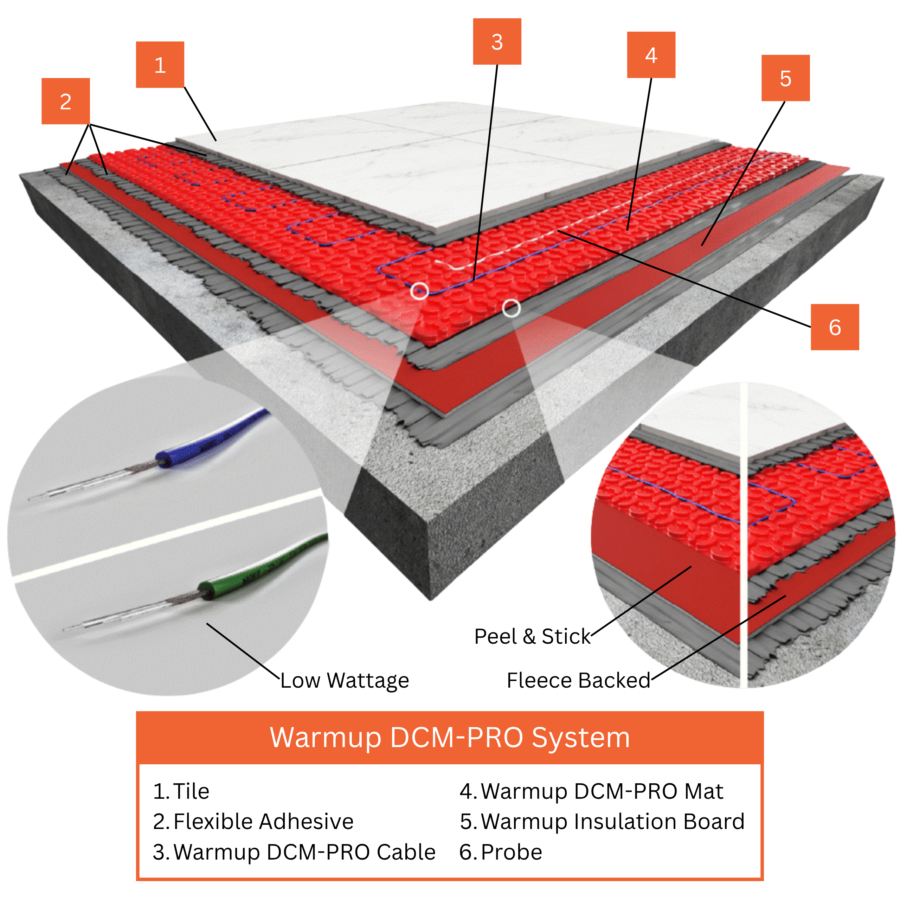

DCM-PRO Decoupling System
The DCM-PRO membrane provides a decoupling layer between the subfloor and finished floor, helping to absorb lateral subfloor movement and reduce stresses being transferred to tiled surfaces. The updated V3 design provides flexible cable positioning through its castellated surface.
The Peel & Stick backing allows the membrane to be firmly attached to a suitable prepared subfloor. Warmup recommends installing onto a clean, smooth and flat surface, with SBR primer required when installing directly onto concrete or timber.
Technical Information
Brand: Warmup
Range: DCM-PRO
Product Type: Peel & Stick Decoupling Mat V3
Product Codes: DCM-PS-0.73 / DCM-PS-14
Material: Polypropylene
Backing: Self-adhesive
Colour: Red
Thickness: 5.8mm ±0.5mm
Width: 985mm ±6mm
0.73m² Sheet: 985 x 741mm
14m² Roll: 14,252 x 985mm
Cable Spacing: 60mm, 90mm or 120mm
Application: DCM-PRO electric underfloor heating
Installation
Prepare the subfloor so it is clean, dry, smooth and free from dust. Position the DCM-PRO mat, remove the protective backing and press the membrane firmly onto the subfloor to ensure full contact.
The DCM-PRO heating cable is then positioned by hand within the castellations at the required spacing. No specialist tools are required for fitting the cable into the membrane.
Ideal Applications
Electric underfloor heating
Tiled floors
Kitchens
Bathrooms
Living areas
Renovation projects
DCM-PRO heated decoupling installations
Important Information
The DCM-PRO Peel & Stick V3 Mat is a decoupling membrane and does not contain a heating element. It must be used with compatible Warmup DCM-PRO heating cable and installed in accordance with the latest Warmup installation instructions.
DCM-PRO can be tiled directly onto the system. When used with other compatible floor finishes, Warmup specifies a suitable self-levelling compound to fully embed and protect the heating system.
What's Included
1 x Warmup DCM-PRO Peel & Stick V3 Mat in the selected size
Why Choose Warmup DCM-PRO Peel & Stick V3 Mat?
The Warmup DCM-PRO Peel & Stick V3 Mat combines a self-adhesive installation method with a decoupling membrane designed to help protect tiled floors from subfloor movement. Its castellated design also provides a straightforward method of positioning compatible DCM-PRO heating cable for a fast, professional installation.
