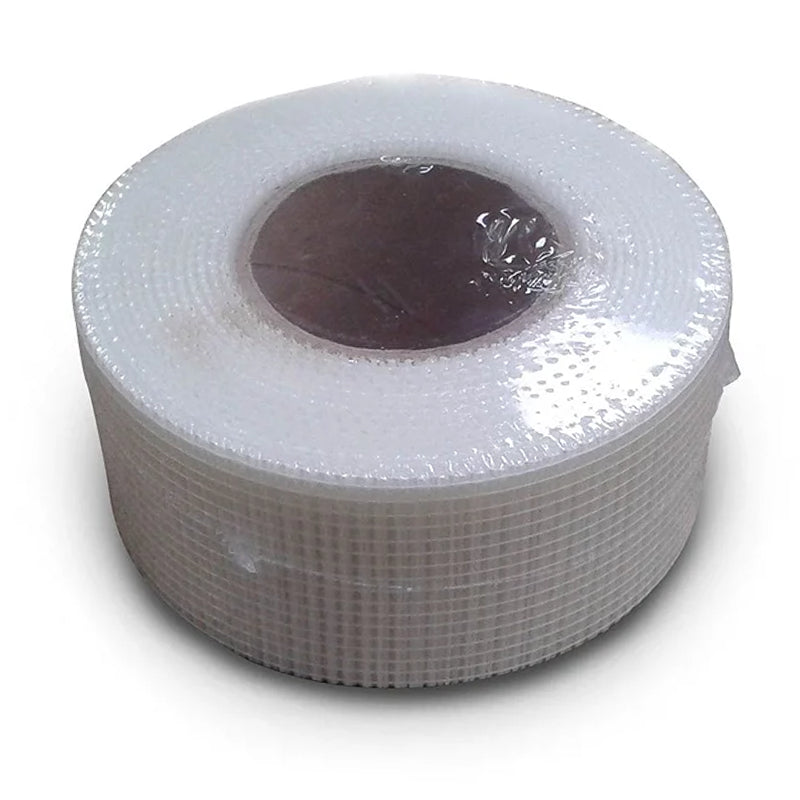

The Warmup Insulation Board Fibreglass Tape is designed for reinforcing the joints between Warmup Insulation Boards during underfloor heating and tile backer board installations. Supplied as a 45 or 90 metre roll, the glass fibre tape helps reinforce board joints to create a stable and continuous surface before the installation of the floor finish. It is suitable for use with Warmup Insulation Boards installed over both concrete and timber subfloors.
Key Features
45 or 90 metre roll of glass fibre tape
Designed specifically for Warmup Insulation Boards
Reinforces joints between adjoining insulation boards
Suitable for installations over concrete and timber subfloors
Helps create a stable board installation before applying the floor finish
Suitable for floor and wall insulation board applications
Ideal for use as part of a Warmup underfloor heating installation
Insulation Board Joint Reinforcement
Warmup recommends reinforcing the joints between its insulation boards with glass fibre tape once the boards have been correctly fixed to the subfloor. This helps provide a more stable and continuous board surface before the next stage of the installation.
When installing over a concrete floor, Warmup specifies fixing the boards with a suitable flexible tile adhesive and staggering the joints. Once the adhesive has hardened, the joints should be reinforced using Warmup glass fibre tape.
For timber subfloors, the boards are secured using suitable screws and washers after bonding, with the joints subsequently reinforced using the glass fibre tape.
Suitable for Warmup Insulation Boards
Warmup Insulation Boards are manufactured from water-resistant extruded polystyrene with a fibreglass mesh embedded into a cement polymer coating on each face. The boards are available in thicknesses from 6mm to 50mm and are designed to provide a stable, insulated base for underfloor heating and tile installations.
The fibreglass tape complements this board system by providing reinforcement across the joints between individual boards.
System Application: Underfloor heating and tile backer board installations
Installation
Warmup Insulation Boards should first be installed in accordance with the manufacturer's installation instructions. Boards should be laid with staggered joints and securely fixed to the appropriate subfloor.
Once the boards have been fixed, the joints should be reinforced with Warmup glass fibre tape before proceeding with the next stage of the floor construction. For waterproof applications, Warmup additionally specifies sealing the joints with a suitable silicone sealant.
Always refer to the relevant Warmup installation manual for the complete installation requirements for your specific project.
Ideal Applications
The Warmup Insulation Board Fibreglass Tape is suitable for:
Electric underfloor heating installations
Warmup Insulation Board systems
Concrete subfloors
Timber subfloors
Floor tile backer board installations
Wall tile backer board installations
Bathroom and kitchen projects
New-build and refurbishment projects
Important Information
This product is intended for reinforcing insulation board joints and is not an underfloor heating element or insulation product itself. It should be used as part of the appropriate Warmup Insulation Board installation.
For waterproof applications, the board joints and other relevant areas must be sealed in accordance with Warmup's installation requirements.
The Warmup Insulation Board Fibreglass Tape provides a purpose-designed solution for reinforcing joints between Warmup Insulation Boards, helping create a stable and properly prepared surface for the subsequent stages of an underfloor heating or tile installation. With a 45 or 90 metre roll, it is suitable for larger projects as well as individual room installations.
