The Warmup StickyMat is a low-profile electric underfloor heating system designed to provide comfortable, even radiant heat beneath compatible floor coverings. Combining an ultra-thin heating cable with a pressure-sensitive adhesive glass fibre mesh, StickyMat provides a fast and straightforward installation solution, particularly for regularly shaped rooms.
With a total mat thickness of just 3mm and a heating cable measuring less than 1.8mm in diameter, StickyMat is designed to minimise any increase in floor height. The pre-spaced heating cable is fixed to a 500mm wide self-adhesive mesh, allowing the mat to be rolled out quickly across the floor in parallel runs.
Warmup StickyMat is available in 150W/m² and 200W/m² versions. The 150W/m² system is suitable for primary heating in well-insulated areas when correctly designed and installed, while the 200W/m² version is intended for areas with greater heat loss, such as conservatories. Warmup recommends carrying out a heat-loss calculation where underfloor heating is intended to provide the primary source of heat.
Insulating beneath the heating system can further improve performance by reducing downward heat loss and helping retain heat within the room. Warmup recommends suitable insulation boards as part of an efficient underfloor heating installation.
The StickyMat system is available in a wide range of heated-area sizes, allowing the system to be matched closely to the required floor area.
The 150W/m² range is available from 1m² to 15m², while the 200W/m² range is available in sizes from 0.5m² to 15m². Multiple mats can also be installed within the same room where required, provided the installation is correctly designed and the electrical load is suitable.
Examples of available 150W/m² sizes include:

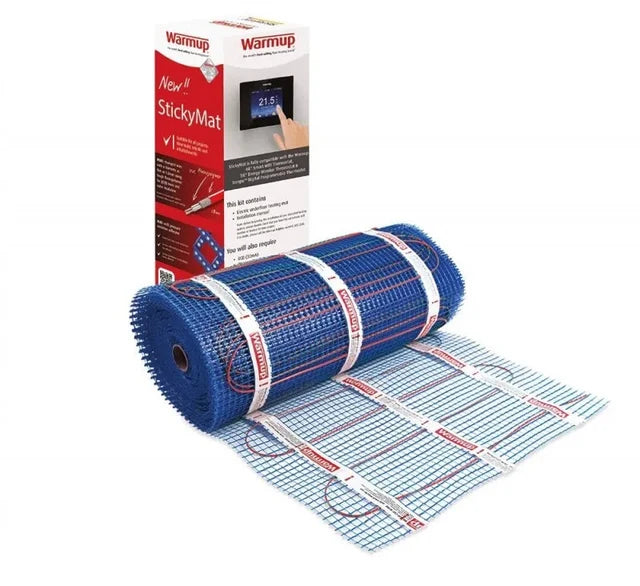

The 200W/m² range provides increased heat output for applications with higher heat-loss requirements.

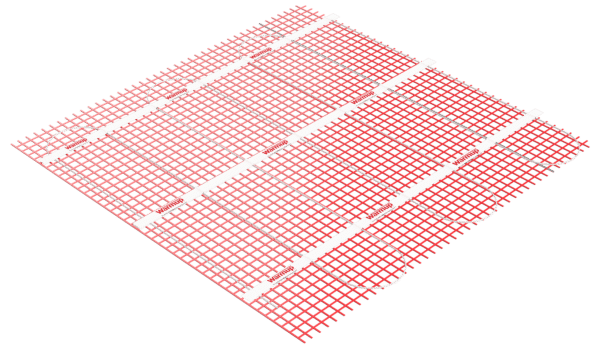

StickyMat consists of an evenly spaced dual-core heating cable attached to a glass fibre mesh with pressure-sensitive adhesive. The heating cable uses advanced ETFE fluoropolymer insulation, providing a durable construction that can be installed beneath suitable floor finishes.
The adhesive mesh helps keep the mat flat during installation and allows the system to be positioned securely before the floor covering or suitable levelling compound is installed.
The StickyMat system is primarily designed for installation beneath tiles, but it can also be used with other compatible floor coverings where the manufacturer's requirements are followed. When used beneath floor coverings such as vinyl, carpet or timber, Warmup states that the StickyMat should be embedded within 10mm of self-levelling compound before the finished floor is installed. The floor covering manufacturer should always confirm compatibility with electric underfloor heating.

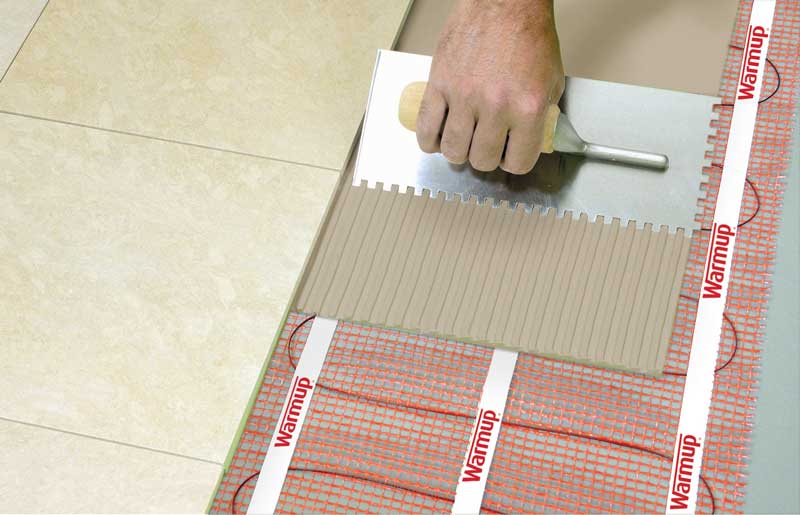

For tiled applications, the heating mat can be incorporated within suitable tile adhesive or an appropriate levelling compound according to the installation requirements.
StickyMat is particularly suited to regularly shaped rooms, where the 500mm-wide mats can be rolled out across the floor in parallel runs. The pressure-sensitive adhesive backing helps secure the mat to the prepared subfloor and keeps the heating cable correctly positioned during installation.
The heating cable must not be cut, shortened, crossed or overlapped. Areas occupied by permanent fixtures and furniture should not be heated, and the heating system should be designed according to the actual heated floor area.
All electrical connections should be carried out by a suitably qualified electrician in accordance with current UK electrical regulations and the Warmup installation instructions.
The Warmup StickyMat is suitable for a wide range of domestic and commercial applications, including:
For irregularly shaped rooms or areas containing numerous permanent fixtures, Warmup recommends considering its Loose Wire System, which provides greater flexibility when positioning the heating cable.
The Warmup StickyMat provides a practical combination of low-profile construction, fast installation and reliable electric underfloor heating performance. Its 3mm-thick mat, 1.8mm heating cable, 500mm width and pressure-sensitive adhesive backing make it particularly convenient for regularly shaped rooms and refurbishment projects where floor height is an important consideration.
With 150W/m² and 200W/m² options, a wide range of heated-area sizes and a Lifetime Warranty, StickyMat provides a flexible solution for creating warm, comfortable floors throughout the home.

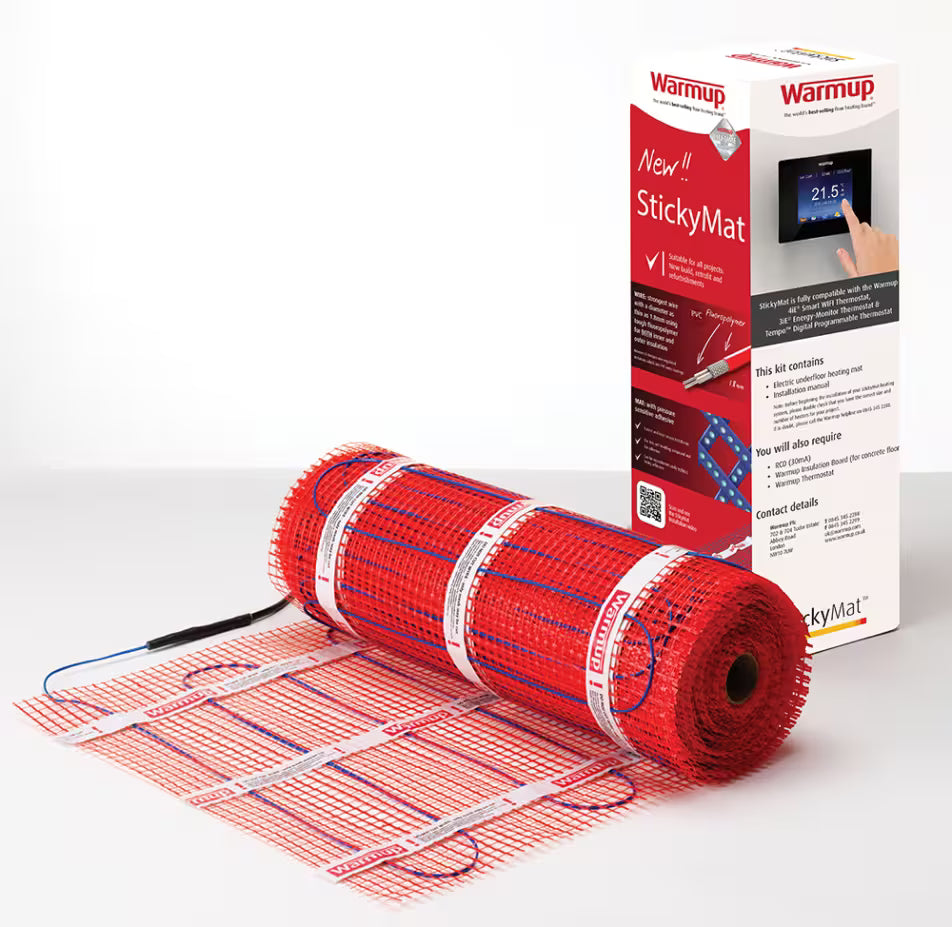

Warmup StickyMat
1m² / 150W / 150W/m²
